AFX24-MFT N4 | Damper Actuator | 180 in-lb | Spg Rtn | 24V | MFT | NEMA 4 | Belimo

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2...10 V, NEMA 4X, MFT/programmable

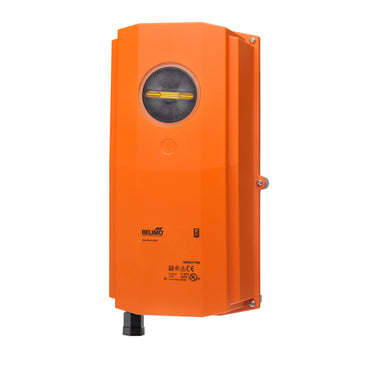

Belimo | AFX24-MFT N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFX24-MFT N4
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFX24-MFT N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for AFX24-MFT N4

Damper Actuator | 180 in-lb | Spg Rtn | 24V | MFT | NEMA 4

Resilient Seat, 304 Stainless Steel Disc

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
MFT/Programmable
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
70...220 s
Safety Function
YES
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG10A Ball joint for 3/8" diameter rod | zinc plated. | Blackhawk Supply
KG10A | Ball joint for 3/8" diameter rod | zinc plated. | Belimo
$26.85 each
