STM-601C-T | Industrial Modbus TCP (two Ethernet port) to one Serial (232 | 422 | 485) RTU/ASCII Gateway with extended operating temperature | Antaira

Industrial Modbus TCP (two Ethernet port) to one Serial (232,422,485) RTU/ASCII Gateway with extended operating temperature

Brand: AntairaSKU: STM-601C-T

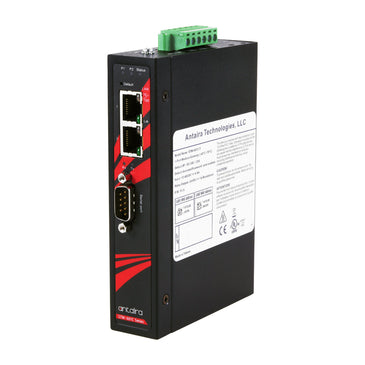

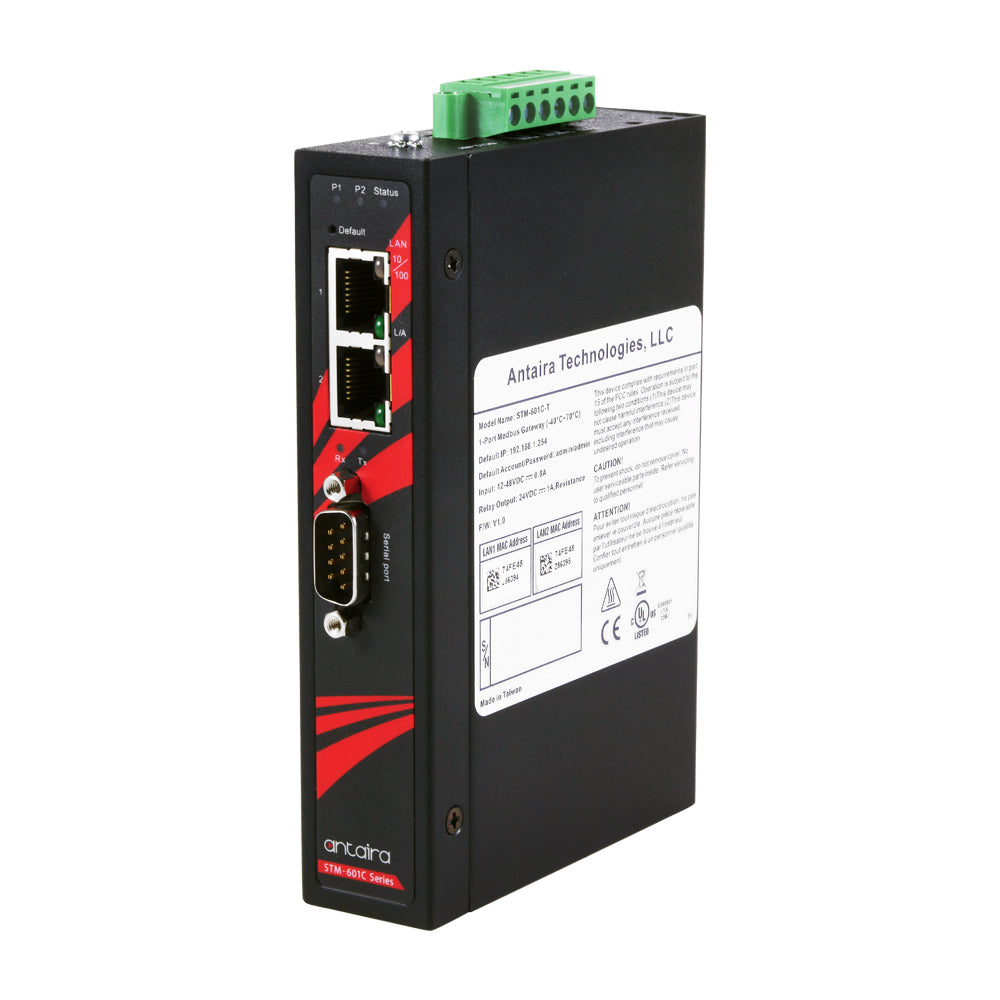

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STM-601C-T

Jump to: Overview & Specifications Reviews

Overview Details for STM-601C-T

Industrial Modbus TCP (two Ethernet port) to one Serial (232 | 422 | 485) RTU/ASCII Gateway with extended operating temperature

Antaira Technologies’ STM-601C-T is an industrial MODBUS gateway that allows legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It can be configured as either MODBUS serial master or slave to communicate with MODBUS TCP’s slave or master. The STM-601C-T features two independent Ethernet ports and MAC addresses to provide redundancy and reliability. These devices provide an economical way of connecting MODBUS RTU/ASCII devices to networks accessible anywhere in the world.

Features

2*10/100 Mbps Ethernet Ports for LAN Redundancy
Integrates Modbus TCP and Modbus RTU/ASCII Networks
Supports Up to 921.6 kbps and Any Baud Rate Setting
Supports Up to 16 Connections per Serial Port Under Modbus Master Mode and 32
Sessions Under Modbus Slave Mode
Software-selectable RS-232/422/485 Communication
Automatic RS-485 Data Flow Control
Redundant Power Input: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection
DIN-Rail or Wall Mountable
Wide Temperature Model
5-Year Warranty

Included

DIN-Rail and Wall Mounting Brackets with Screws
Quick Installation Guide
STM-601C-T

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Baud Rate: 50 bps ~ 921.6 kbps, any baud rate setting
Configuration: Windows Utility, Telnet Console, Web Browser
Data Bits: 5, 6, 7, 8
Dimensions: 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")
EMC: CE, FCC Part 15 Subpart B (Class A)
Ethernet Port: 2 with independent IP and MAC addresses
Ethernet Port: 2*10/100T auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: XON/XOFF, RTS/CTS
Green: RoHS Compliant
Hazardous Location: UL/cUL (Class 1, Division 2, Groups A, B, C and D);(Zone 2 Ex nA nC IIC T4Gc)
Housing: Metal with solid mounting hardware
Input Voltage: 12 to 48VDC, Redundant Inputs
LED Indicators: Power, Ethernet Ports: Link / Act
LED Indicators: System: Power, System Status;LAN: Speed, Link/Active;Serial: Tx, Rx
Mounting: DIN-Rail, Wall Mounting
Operating Temperature: EOT: -40° ~ 70°C
Operation Mode: Modbus RTU Master/Slave mode;Modbus ASCII Master/Slave mode
OS Support: 32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2
Parity: None, Odd, Even, Space, Mark
Port Type: RS-232/422/485, software selectable
Power Connection: Terminal block
Power Consumption: 3.2 W
Processing Type: Store and Forward
Protection: 15 KV ESD for all signals
Protocols: CSMA/CD
Protocols: ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP
Reboot Trigger: Built-in WDT (watchdog timer)
Serial Port: 1 - DB9 male
Serial Signals: RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND;RS-422: TxD+, TxD-, RxD+, RxD-, GND;RS-485: Data+, Data-, GND
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Stop Bits: 1, 2
Storage Temperature: -20° ~ 80°C
Utility Software: Antaira Device Configuration Utility
Warranty: 5 Years
Weight: 1.04 lbs (0.472 kg)
