STM-601C | Industrial Modbus TCP (two Ethernet port) to one Serial (232 | 422 | 485) RTU/ASCII Gateway | Antaira

Industrial Modbus TCP (two Ethernet port) to one Serial (232,422,485) RTU/ASCII Gateway

Brand: AntairaSKU: STM-601C

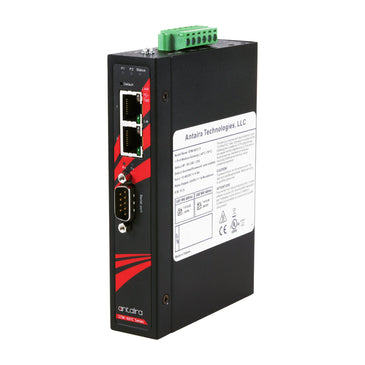

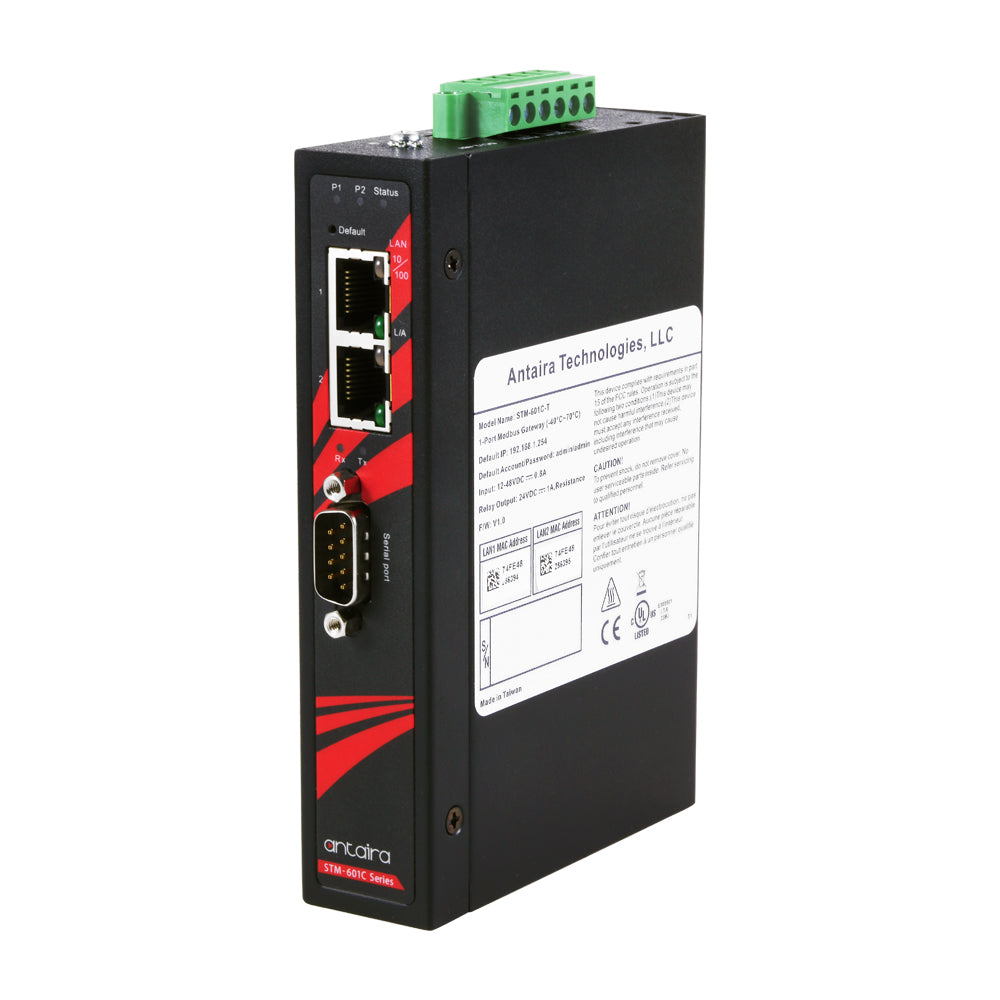

Antaira | STM-601C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM-601C

Overview Details for STM-601C

Industrial Modbus TCP (two Ethernet port) to one Serial (232 | 422 | 485) RTU/ASCII Gateway

Antaira Technologies’ STM-601C is an industrial MODBUS gateway that allows legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It can be configured as either MODBUS serial master or slave to communicate with MODBUS TCP’s slave or master. The STM-601C features two independent Ethernet ports and MAC addresses to provide redundancy and reliability. These devices provide an economical way of connecting MODBUS RTU/ASCII devices to networks accessible anywhere in the world.

Features

  • 2*10/100 Mbps Ethernet Ports for LAN Redundancy
  • Integrates Modbus TCP and Modbus RTU/ASCII Networks
  • Supports Up to 921.6 kbps and Any Baud Rate Setting
  • Supports Up to 16 Connections per Serial Port Under Modbus Master Mode and 32 Sessions Under Modbus Slave Mode
  • Software-selectable RS-232/422/485 Communication
  • Automatic RS-485 Data Flow Control
  • Redundant Power Input: 12~48VDC
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • DIN-Rail or Wall Mountable
  • Standard Temperature Model
  • 5-Year Warranty

Included

  • DIN-Rail and Wall Mounting Brackets with Screws
  • Quick Installation Guide
  • STM-601C

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Baud Rate
50 bps ~ 921.6 kbps, any baud rate setting
Data Bits
5, 6, 7, 8
Dimensions
55 x 140 x 95 mm (2.17" x 5.51" x 3.74")
EMC
CE, FCC Part 15 Subpart B (Class A)
Ethernet Port
2 with independent IP and MAC addresses
Ethernet Port
2*10/100T auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
XON/XOFF, RTS/CTS
Green
RoHS Compliant
Hazardous Location
UL/cUL (Class 1, Division 2, Groups A, B, C and D)
Housing
Metal
Input Voltage
12 to 48VDC, Redundant Inputs
LED Indicators
Link / Act
LED Indicators
System: Power, System Status;LAN: Speed, Link/Active;Serial: Tx, Rx
Mounting
DIN-Rail Mounting, Wall Mounting
Operating Temperature
STD: -10° ~ 60°C
Operation Mode
Windows Utility, Telnet Console, Web Browser
OS Support
XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2
Overload Current Protection
Present
Parity
None, Odd, Even, Space, Mark
Port Type
RS-232/422/485, software selectable
Power Connection
Terminal Block
Power Consumption
3.2 W
Processing Type
Store and Forward
Protection
15 KV ESD for all signals
Protocols
CSMA/CD
Protocols
ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP
Reboot Trigger
Built-in WDT (watchdog timer)
Reverse Polarity Protection
Present
Serial Port
4*DB9 male
Serial Signals
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND;RS-422: TxD+, TxD-, RxD+, RxD-, GND;RS-485: Data+, Data-, GND
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Stop Bits
1, 2
Storage Temperature
-40° ~ 85°C
Utility Software
Antaira Device Configuration Utility
Warranty
5 Years
Weight
1.22 lbs. (0.555 kg)
