STF-401C-CS30-T | Industrial Compact RS-232/422/485 To Fiber Converter | Single-Mode 30KM | SC Connector | -40°C ~ 70°C | Antaira

Industrial Compact RS-232/422/485 To Fiber Converter, Single-Mode 30KM, SC Connector, -40°C ~ 70°C

Brand: AntairaSKU: STF-401C-CS30-T

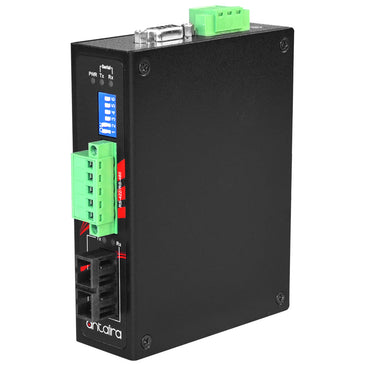

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STF-401C-CS30-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for STF-401C-CS30-T

Industrial Compact RS-232/422/485 To Fiber Converter | Single-Mode 30KM | SC Connector | -40°C ~ 70°C

The STF-401C series Compact Industrial Serial-to-Fiber Media Converter Series provides a solution to extend any RS-232 or RS-422/485 serial device data transmission distance with 100Fx Fiber (SC or ST connector) options via Multi-Mode in 2Km or Single-Mode in 30Km. It features a Din-Rail Type design to give users an easy installation and maintenance purpose in any harsh industrial environment.A perfect solution for any single “Point-to-Point” application with Industrial manufacturing in Factory Automation; Remote sensing and signaling/metering in ITS; EMI resistant for IEDs data transmission in Substation Automation; Industrial Control in Process Control Automation, such as WWTP and Oil/Gas/Mining.

Features

Fan-less and Din-Rail design for Harsh Industrial Environment
Built in 1Port RS-232(DB9) or RS-422/485(Terminal Block) Serial Port
Supports SC or ST Multi-mode 2Km, Single-mode 30Km
Dip Switch to Change RS-485 Data Signals Pull High/Low Resistor
Supports Input Voltage 9 ~ 48VDC
Supports Reverse Polarity Protection
Wide Range Operating Temperature Supports: -40 to 70°C
Applicable with Point-to-Point, Half Duplex Single Ring Topology Serial Fiber Daisy Chain Network application
5-Year Warranty

Included

Quick Installation Guide

Specifications

Baud Rate: 300bps ~ 921kbps
Cable: Single-Mode: 9/125um
Casing Enclosure: Metal, IP30 Protection
Certifications: FCC, CE
Dimensions: 34.4 x 91.2 x 120mm (1.35 x 3.59 x 4.72 in)
EMI: FCC Part15, CISPR (EN55022) Class A
EMS: EN61000-4-2 (ESD) Level 4, Criteria B;EN61000-4-3 (RS) Level 3, Criteria A;EN61000-4-4 (EFT) Level 3, Criteria A;EN61000-4-5 (Surge) Level 3, Criteria B;EN61000-4-6 (CS) Level 3, Criteria A
ESD: 15KV
Fiber Port: 1 Fiber Port
Fiber Type: SC
Green: RoHS Compliant
Humidity: 5 to 95%, 55°C (Non-Condensing)
Installation: DIN-Rail Mounting (Included), Wall Mounting Kits (Sold Separately)
Isolation: N/A
MTBF: 216,388 Hours
Operating Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Power Consumption: 2.52W - @0.28A max, 9 VDC
Power Input: 9 ~ 48VDC
Power Input Connector: Removable 3-pin Screw Terminal Block
Pull High/Low: Dip Switch adjustment
Reverse Polarity Power Protection: Reverse Polarity Protection
Rx Sensitivity: Single-Mode: - 32 dBm
Serial Connector: RS-232: - TxD, RxD, GND ( DCD, DTR, DSR internal short ; CTS, RTS internal short );RS-422: -4w - TxD+, TxD-, RxD+, RxD-, GND;RS-485: -2w - Data+, Data-,GND
Stability Testing: Shock: MIL-STD-810F Method 516.5;Free Fall: MIL-STD-810F Method 516.5;Vibration: MIL-STD-810F Method 514.5 C-1 & C-2
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Transmission Distance: Single-Mode: 30km
Tx Power: Single-Mode: -8 ~ -15 dBm
Warranty: 5-Year Warranty
Wave length: 1310nm
Weight: 700g
