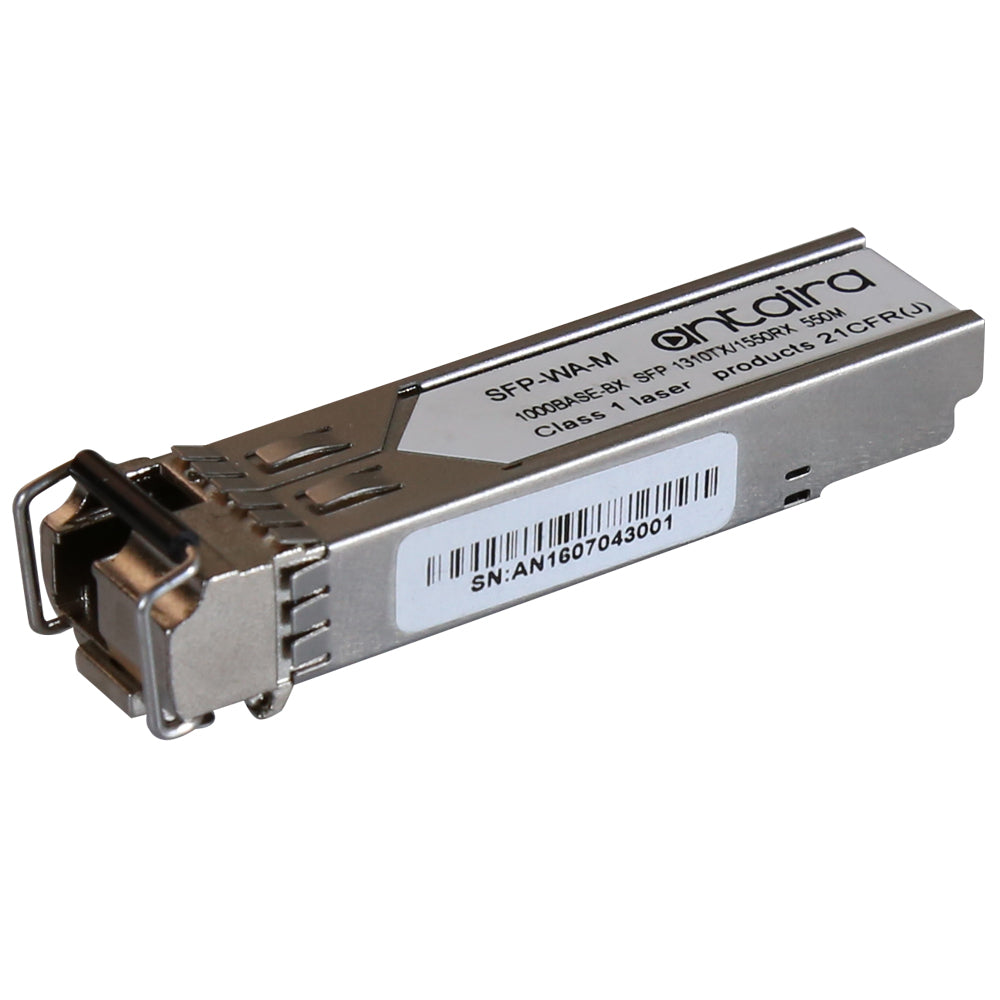

SFP-WA-M | 1.25G Gigabit SFP Transceiver WDM-A | MM/LC/550M/TX:1310nm RX:1550nm | 0ºC~70ºC | Antaira

1.25G Gigabit SFP Transceiver WDM-A | MM/LC/550M/TX:1310nm RX:1550nm | 0ºC~70ºC

The SFP-WA-M is the high performance and cost-effective module for serial optical data communication applications specified for multimode of multi-rate from 125M to 1.25 Gb/s. It operates with +3.3V power supply. The module is intended for multimode fiber, operates at a nominal wavelength of Tx: 1310nm / Rx: 1550nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly and an electrical subassembly. All of them are housed in a metal package and the combination produces a reliable component.The module is a multimode fiber connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE-802.3z compliant link for 1.25Gb/s intermediate reach applications. The characteristics are performed in accordance with Telcordia Specification GR-468-CORE.

Features

• 1310nm FP LD
• Multi Data Rate: from 125M to 1.25Gbps, NRZ
• Single +3.3V Power Supply
• RoHS Compliant and Lead-free
• AC/AC Differential Electrical Interface
• Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
• Single LC Connector
• Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
• Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
• Eye Safety
• Designed to meet Laser Class 1 comply with EN60825-1

Included

• SFP-WA-M
