SDR-960-48 | 960W Single Output Industrial DIN RAIL with PFC Function | Antaira
960W Single Output Industrial DIN RAIL with PFC Function

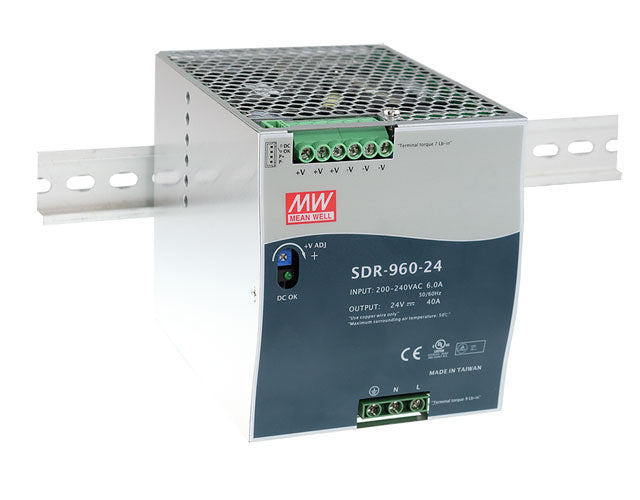

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SDR-960-48
Documents and manuals
Antaira SDR-960-48 Documents
Overview
Details for SDR-960-48
960W Single Output Industrial DIN RAIL with PFC Function
SDR-960-48 is an Ultra Slim design DIN Rail AC/DC Power Supply with a single phase power supply featuring a 180 to 264VAC input range, and 960W output in 94% efficiency. It can operate at full load with convection cooling at ambient temperature up to +50ºC.Features
- AC Input 180~264VAC only
- 130% peak load capability
- 110mm Slim Design
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
Specifications
Item Number | SDR-960-48 |
Brand | Antaira |
Type | DIN Rail |
