NDR-75-48 | 75 Watt Series / 48 VDC / 1.6 Amps Industrial Single Output DIN Rail Power Supply | Antaira
75 Watt Series / 48 VDC / 1.6 Amps Industrial Single Output DIN Rail Power Supply

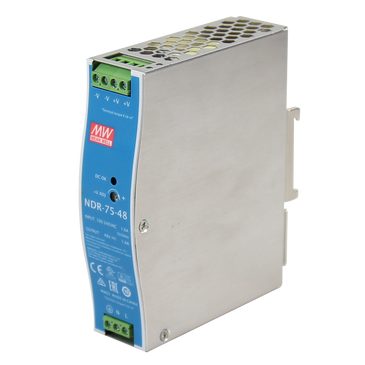

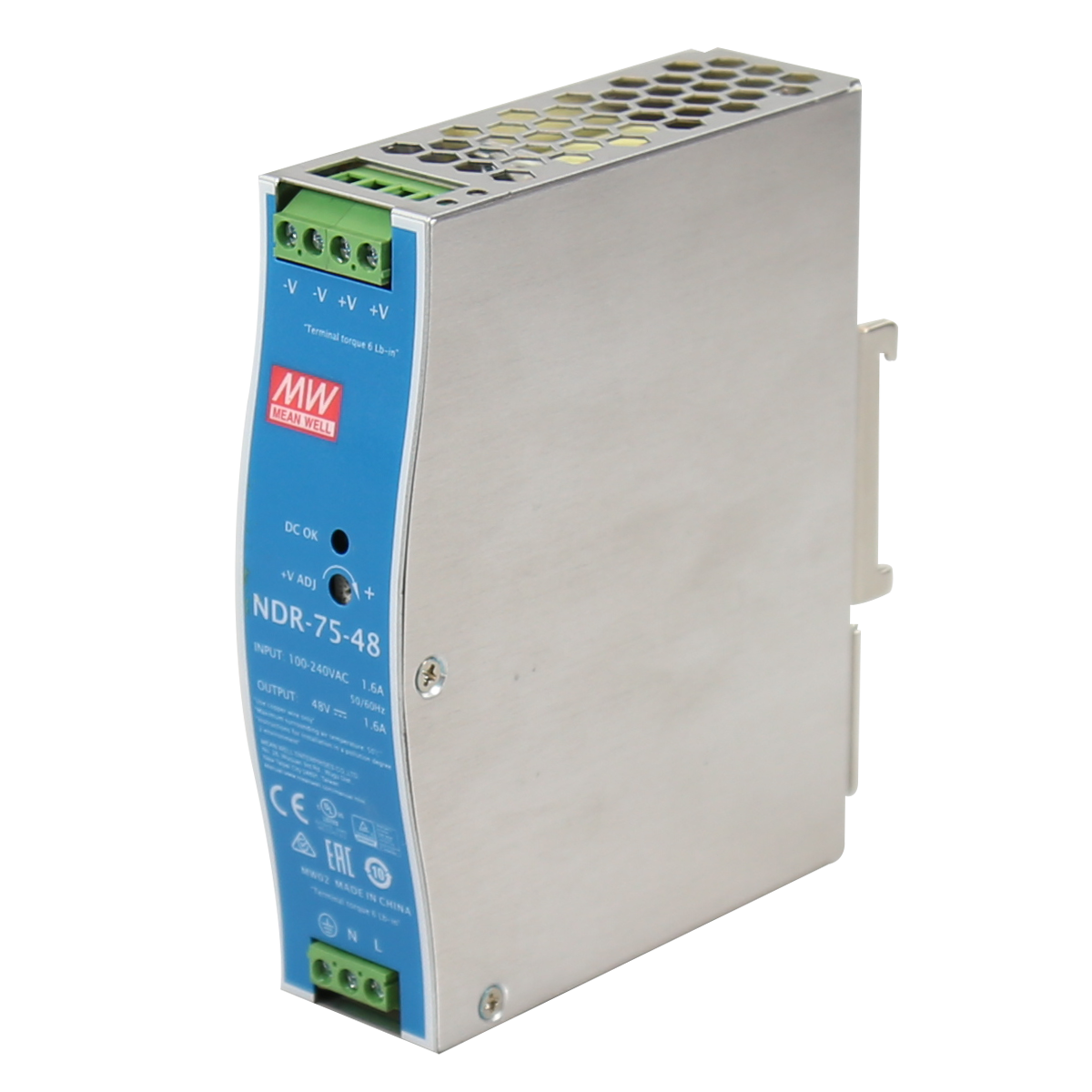

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NDR-75-48
Documents and manuals
Antaira NDR-75-48 Documents
Overview
Details for NDR-75-48
75 Watt Series / 48 VDC / 1.6 Amps Industrial Single Output DIN Rail Power Supply
The NDR-75 DIN rail power supply series provides a 75 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. UL508 listed (for industrial equipment). Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- DIN-Rail mountable
- UL 508 approved
- EN61000-6-2 (EN50082-2) industry immunity level
- 100% full load burn-in test
- 3-year warranty
Included
- NDR-75-48
Specifications
- AC Current
- 1.45A/115VAC;0.9A/230VAC
- Current Range
- 0 ~ 1.6A
- DC Voltage
- 48V
- EMC Emission
- Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC Immunity
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, EAC TP TC 020
- Hold Up Time
- 60ms/230VAC;12ms/115VAC at full load
- Inrush Current
- 20A/115VAC;35A/230VAC
- Operating Humidity
- 20 ~ 95% RH non-condensing
- Operating Temperature
- -20°C to 70°C
- Over Voltage Protection
- 56 ~ 65V
- Overload Protection
- 105 ~ 130% rated output power
- Rated Current
- 1.6A
- Rated Power
- 76.8W
- Safety Standards
- UL508, TUV EN60950-1, EAC TP TC 004 approved; (meet EN60204-1)
- Setup, Rise Time
- 1200ms, 60ms/230VAC;2000ms, 60ms/115VAC at full load
- Storage Humidity
- 10 ~ 95% RH
- Storage Temperature
- -40°C to 85°C
- Voltage Range
- 90 ~ 264VAC;127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
- Warranty
- 3-year warranty
- Withstand Voltage
- I/P-O/P:3KVAC;I/P-FG:2KVAC;O/P-FG:0.5KVAC
