NDR-75-24 | 75 Watt Series / 24 VDC / 3.2 Amps Industrial Single Output DIN Rail Power Supply | Antaira

75 Watt Series / 24 VDC / 3.2 Amps Industrial Single Output DIN Rail Power Supply

Brand: AntairaSKU: NDR-75-24

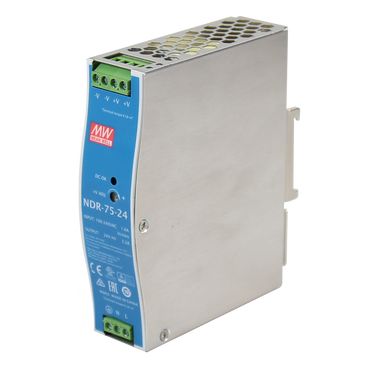

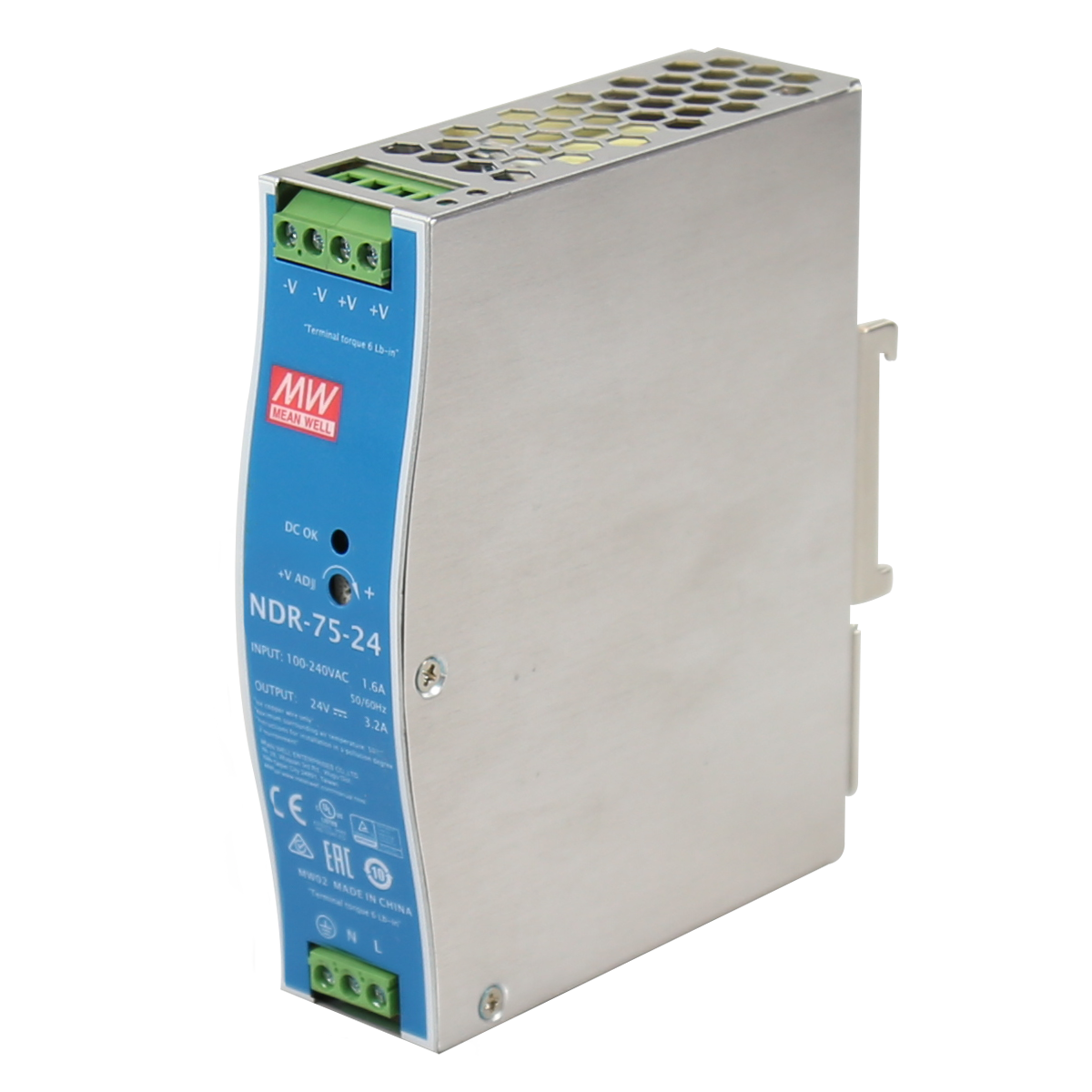

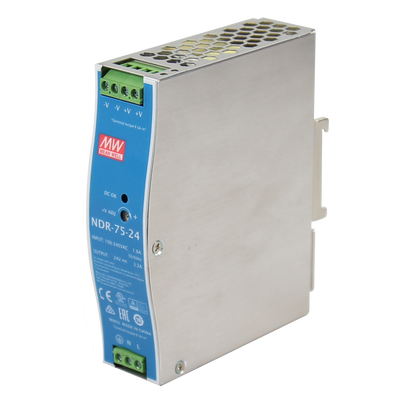

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NDR-75-24

Jump to: Overview & Specifications Reviews

Overview Details for NDR-75-24

75 Watt Series / 24 VDC / 3.2 Amps Industrial Single Output DIN Rail Power Supply

The NDR-75 DIN rail power supply series provides a 75 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. UL508 listed (for industrial equipment). Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
DIN-Rail mountable
UL 508 approved
EN61000-6-2 (EN50082-2) industry immunity level
100% full load burn-in test
3-year warranty

Included

NDR-75-24

Specifications

AC Current: 1.45A/115VAC;0.9A/230VAC
Current Range: 0 ~ 3.2A
DC Voltage: 24V
EMC Emission: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A,EAC TP TC 020
Hold Up Time: 60ms/230VAC;12ms/115VAC at full load
Inrush Current: 20A/115VAC;35A/230VAC
Operating Humidity: 20 ~ 95% RH non-condensing
Operating Temperature: -20°C to 70°C
Over Voltage Protection: 29 ~ 33V
Overload Protection: 105 ~ 130% rated output power
Rated Current: 3.2A
Rated Power: 76.8W
Safety Standards: UL508, TUV EN60950-1, EAC TP TC 004 approved; (meet EN60204-1)
Setup, Rise Time: 1200ms, 60ms/230VAC;2000ms, 60ms/115VAC at full load
Storage Humidity: 10 ~ 95% RH
Storage Temperature: -40°C to 85°C
Voltage Range: 90 ~ 264VAC;127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
Warranty: 3-year warranty
Withstand Voltage: I/P-O/P:3KVAC;I/P-FG:2KVAC;O/P-FG:0.5KVAC
