NDR-480-48 | 480 Watt Series / 48 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply | Antaira

480 Watt Series / 48 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply

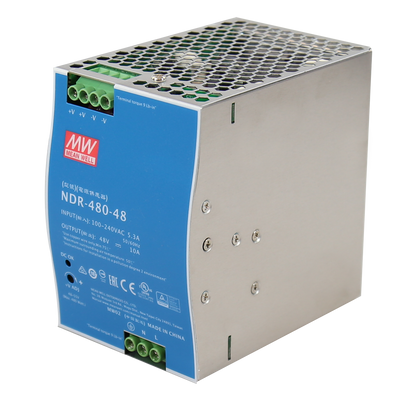

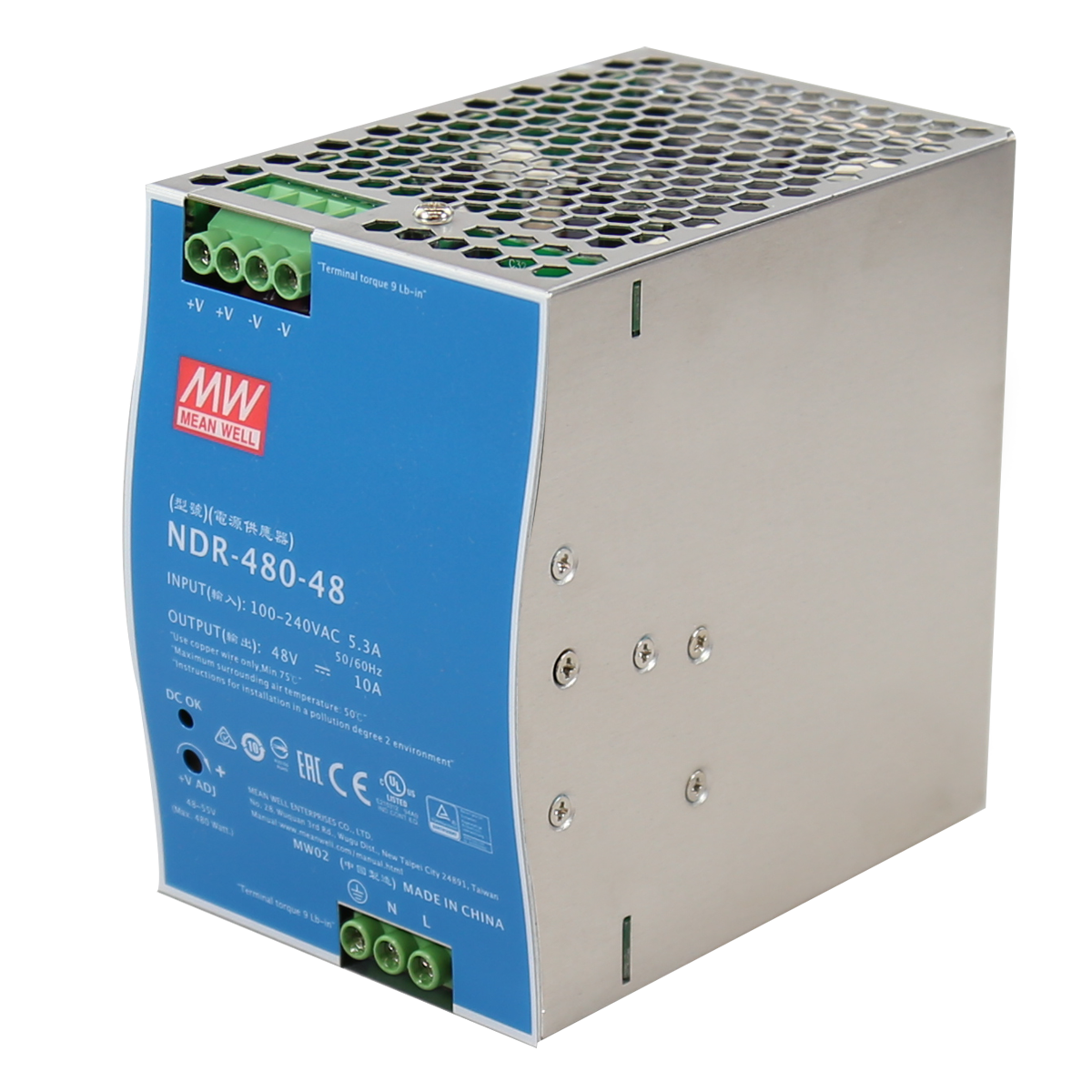

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NDR-480-48

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira NDR-480-48 Documents

Product Datasheet More Info

Overview

Details for NDR-480-48

480 Watt Series / 48 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply

The NDR-480 DIN rail power supply series provides a 480 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
DIN-Rail mountable
UL 508 approved
EN61000-6-2 (EN50082-2) industry immunity level
100% full load burn-in test
3-year warranty

Included

NDR-480-48

Specifications

AC Current: 4.8A/115VAC;2.4A/230VAC
Current Range: 0 ~ 10A
DC Voltage: 48V
EMC Emission: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, EAC TP TC 020
Hold Up Time: 16ms/230VAC;16ms/115VAC at full load
Inrush Current: 20A/115VAC;35A/230VAC
Operating Humidity: 20 ~ 95% RH non-condensing
Operating Temperature: -20°C to 70°C
Over Voltage Protection: 56 ~ 65V
Overload Protection: 105 ~ 130% rated output power
Rated Current: 10A
Rated Power: 480W
Safety Standards: UL508, TUV EN60950-1, EAC TP TC 004, BSMI CNS14336-1 approved; (meet EN60204-1)
Setup, Rise Time: 1500ms, 100ms/230VAC;3000ms, 100ms/115VAC at full load
Storage Humidity: 10 ~ 95% RH
Storage Temperature: -40°C to 85°C
Warranty: 3-year warranty
Withstand Voltage: I/P-O/P:3KVAC;I/P-FG:2KVAC;O/P-FG:0.5KVAC
