NDR-120-12 | 120 Watt Series / 12 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply | Antaira

120 Watt Series / 12 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply

Brand: AntairaSKU: NDR-120-12

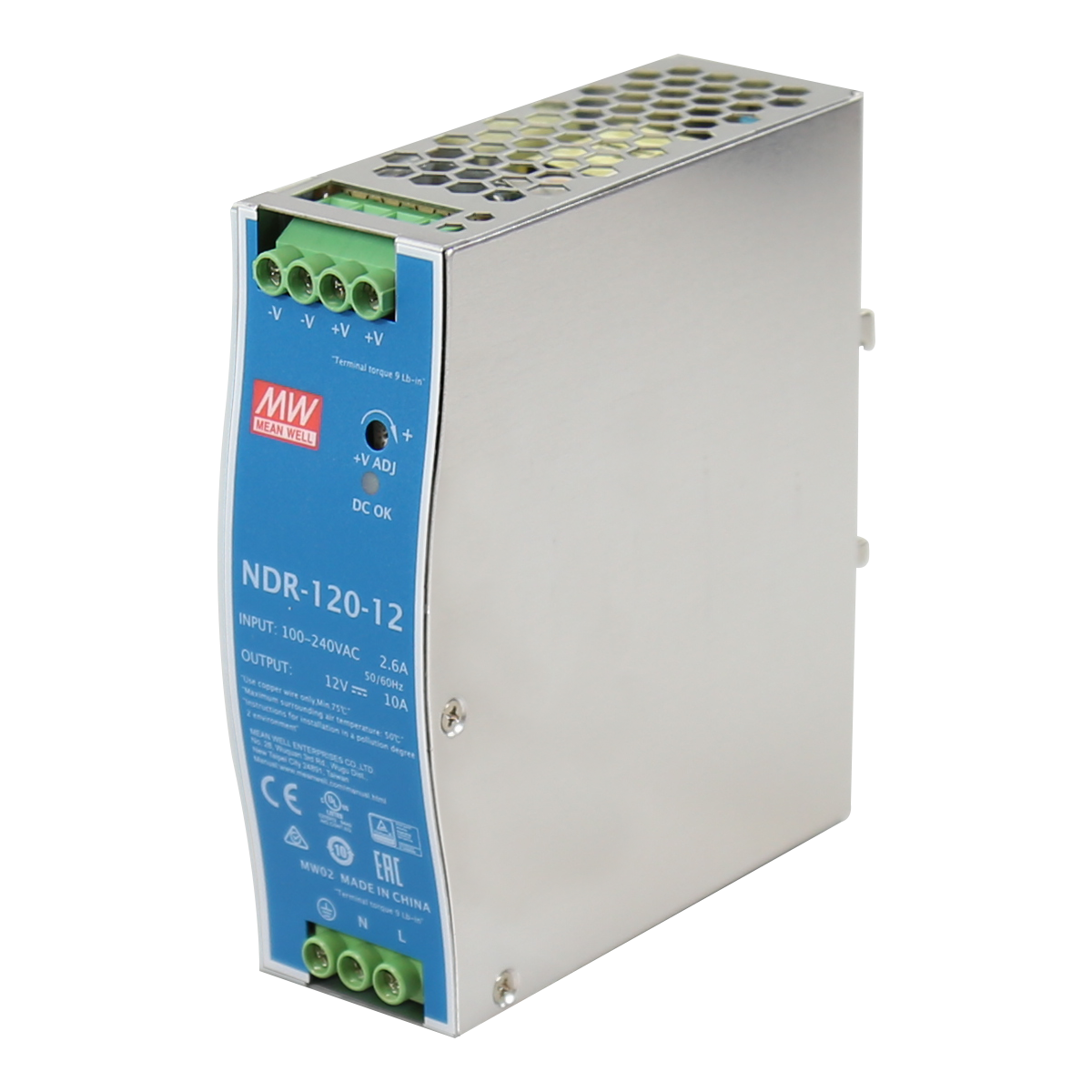

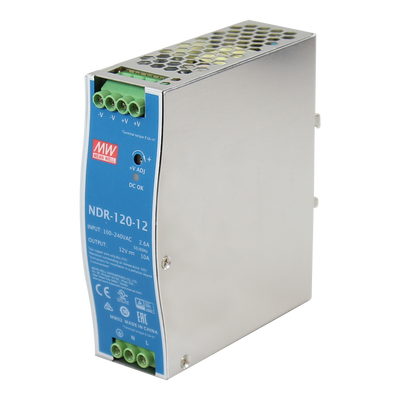

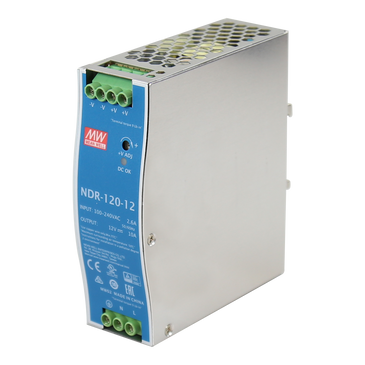

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NDR-120-12

Jump to: Overview & Specifications Reviews

Overview Details for NDR-120-12

120 Watt Series / 12 VDC / 10.0 Amps Industrial Single Output DIN Rail Power Supply

The NDR-120 DIN rail power supply series provides a 120 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. UL508 listed (for industrial equipment). Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
DIN-Rail mountable
UL 508 approved
EN61000-6-2 (EN50082-2) industry immunity level
100% full load burn-in test
3-year warranty

Included

NDR-120-12

Specifications

AC Current: 2.25A/115VAC;1.3A/230VAC
Current Range: 0 ~ 10A
DC Voltage: 12V
EMC Emission: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, EAC TP TC 020
Hold Up Time: 16ms/230VAC;10ms/115VAC at full load
Inrush Current: 20A/115VAC;35A/230VAC
Operating Humidity: 20 ~ 95% RH non-condensing
Operating Temperature: -20°C to 70°C
Over Voltage Protection: 14 ~ 17V
Overload Protection: 105 ~ 130% rated output power
Rated Current: 10A
Rated Power: 120W
Safety Standards: UL508, TUV EN60950-1, EAC TP TC 004 approved; (meet EN60204-1)
Setup, Rise Time: 1200ms, 60ms/230VAC;2500ms, 60ms/115VAC at full load
Storage Humidity: 10 ~ 95% RH
Storage Temperature: -40°C to 85°C
Warranty: 3-year warranty
Withstand Voltage: I/P-O/P:3KVAC;I/P-FG:2KVAC;O/P-FG:0.5KVAC
