MSC-204A2 | 4-Port RS-232 PCI Express Card | Support Power Over Pin-9 | Antaira
4-Port RS-232 PCI Express Card, Support Power Over Pin-9

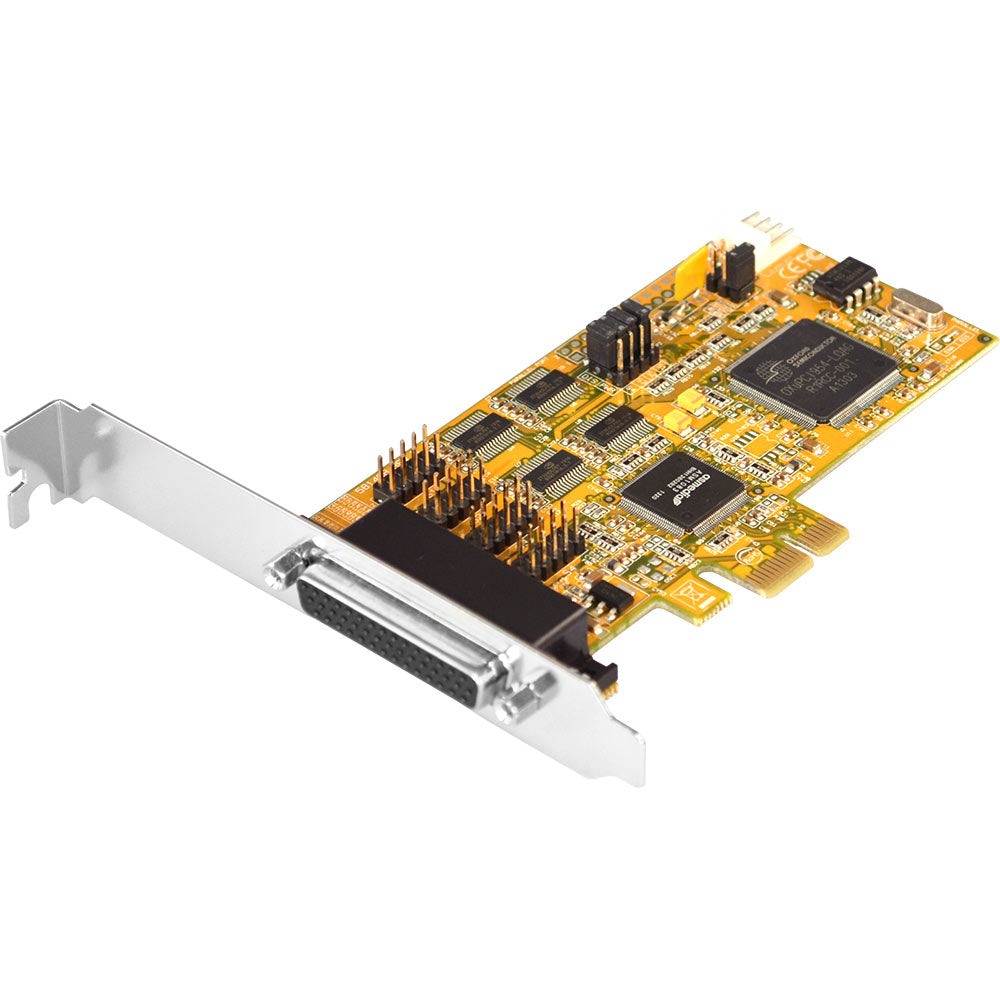

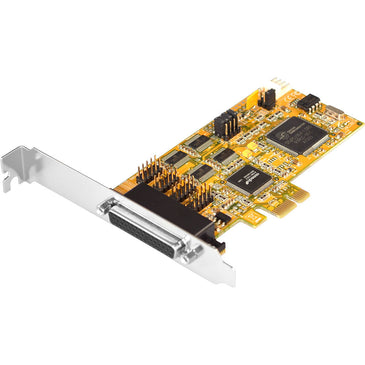

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSC-204A2
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira MSC-204A2 Documents
Overview
Details for MSC-204A2
4-Port RS-232 PCI Express Card | Support Power Over Pin-9
Antaira Technologies MSC-204A2 multi port PCI Express card provides 4 high performance 16C950-type UART compatible RS232 serial ports. The MSC-240A2 features a 1-chip solution for the PCI Express boards to increase throughput and reduce the CPU loading, comparatively to the current 2-chip solution. Appropriate for either client or server applications, the MSC-204A2 provides com port expansion along the PCI Express bus for up to 4 additional RS-232 ports. The PCI Express connection allows for backwards compatibility of legacy devices on the standard PCI port. The architecture defines a high-performance, point-to-point, scalable, serial bus at a speed of 250Mbytes/sec to 4GBytes/sec. The multi port MSC-204A2 serial card is Plug-and-Play compatible and has no IRQ and I/O address conflicting problems.Features
- Full x1 PCI Express Throughput, 250Mbytes/sec
- 4 Fully 16C950 High performance UART channels
- Low Profile Version is Available with Short Bracket
- Baud Rate up to 921.6Kbps
- 128-byte deep FIFO per transmitter and receiver
- Detection of Bad Data in the Receiver FIFO
- Provides 5V or 12V Power over Serial Connectors
- Automated in-band flow control using programmable Xon/Xoff in both directions
- Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR#
Included
- CD Drivers/Utilities
- MSC-204A2
- Octopus Cable
- Quick Start Guide
- Standard & Low Profile Brackets
Specifications
- Baud Rate
- Up to 921.6Kbps
- Bracket
- Includes Short Brackets to provide Low Profile PCI form factor
- Data Bits
- 5, 6, 7, 8, 9-bit Data Framing
- Data Signal
- Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR#
- Dimensions
- 4.72 x 2.60ö (12.00 x 6.60cm)
- FIFO
- 128-byte High Performance FIFO size
- Flow Control
- Automated in band flow control using programmable Xon/Xoff in both directions
- Host Controller
- Fully 16C550 and16C950 UART compatible
- Interface
- RS-232
- Operating Humidity
- 10% to 90% relative humidity (non-condensing)
- Operating Temperature
- 0 to 55¦C (32 to 131¦F)
- OS Support
- Windows 9x, Me, NT, 2000, XP, 2003, 2008, Vista, Win 7 and Linux
- Power Over Serial
- Provides 5V or 12V over DB9 Connectors
- Serial Ports
- 4 x RS-232 via DB9M Connectors
- Storage Humidity
- 5% to 95% relative humidity (non-condensing)
- Storage Temperature
- -40 to 75¦C (-40 to 167¦F)
- System
- Fully Compliant with x1 PCI Express Base Specifications 1.0a
