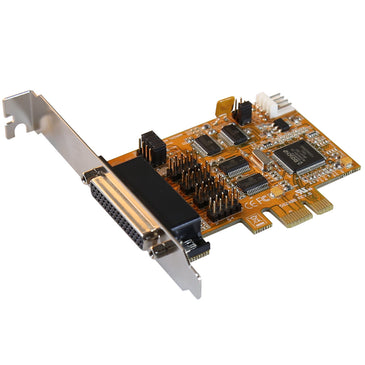

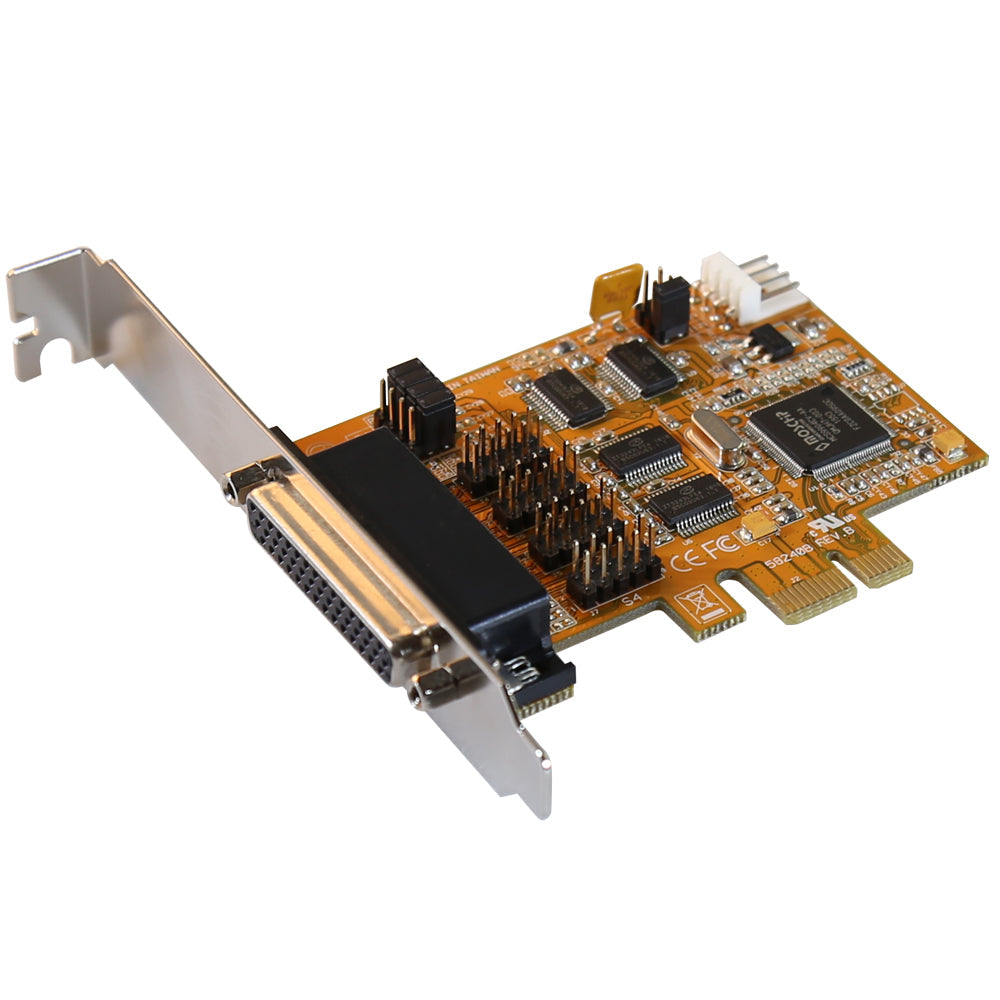

MSC-204A1-S | 4-Port RS-232 PCI Express Card with Expansion Cable 1*DB44 to 4*DB9M | Antaira
4-Port RS-232 PCI Express Card with Expansion Cable 1*DB44 to 4*DB9M
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSC-204A1-S
Documents and manuals
Antaira MSC-204A1-S Documents
Overview
Details for MSC-204A1-S
4-Port RS-232 PCI Express Card with Expansion Cable 1*DB44 to 4*DB9M
Antaira Technologies’ MSC-204A1-S PCI Express I/O adapter provides four high performance 16C650-type UART compatible RS232 serial ports. It is designed for a PC, thin client, or server to provide instant COM port expansion via the PCI Express Bus (PCIe).PCI Express provides a scalable, high-speed, serial I/O bus that maintains backward compatibility with PCI applications and drivers. Its architecture defines a high-performance, point-to-point, scalable serial bus at speeds of 250Mbytes/sec (500Mbytes/sec for PCIe Gen 2) to 4GBytes/sec (and 8Gbytes/sec in the future).The card is fully PCI Express Plug-and-Play compatible and there are no IRQ and I/O address conflict problems. The MSC-204A1-S provides the scalability to quickly adapt to new PCI Express technologies. It allows you to add serial connectivity as needed. The complete product line offers many choices helping to expand and make serial networking grow within specific requirements.Features
- PCI Express Compliance with Revision 1.1
- 250Mbps Throughput
- 4 DB9M RS232 Connectors over a 44-pin Octopus Cable
- 4 High Performance 16C550 UART Channels
- Surge Protection: 15KV for RS232
- Baud Rate up to 921.6Kbps5, 6, 7, 8 or 9-bit Data Framing
- 5V or 12V Power Available Over Serial Connectors
- Hardware and Software Flow Control
- Supports Slow IrDA on All Serial Ports
- Windows: 2000, XP, 2003, 2008, Vista, 7, 8, 10, Linux, and Mac OS
- 5-Year Warranty
Included
- 1 - MSC-204A1-S
- 1 - Quick Installation Guide
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Cable
- 44-Pin Octopus Cable
- Chipset
- 16C650
- Connection
- Through PCI Express Bus
- Dimensions
- 87 x 67 mm
- Mounting
- PCI Express Bus
- Operating Temperature
- 0° to 55°C
- Power
- 5V or 12V Device Power over Pin 9
- Serial
- 4 DB9M RS232 Connectors
- Storage Temperature
- -40°C ~ 75°C
- Surge Protection
- 15KV for the RS232 pins
- System
- Fully compliant with PCI Express Base Specification Revision 1.1
- Transfer Rate
- 250Mbps
- Weight
- Unit: 0.5 lbs; Shipping: 1.0 lbs
