MSC-104CL | 4-Port RS-232/422/485 Universal PCI Serial Card | Antaira

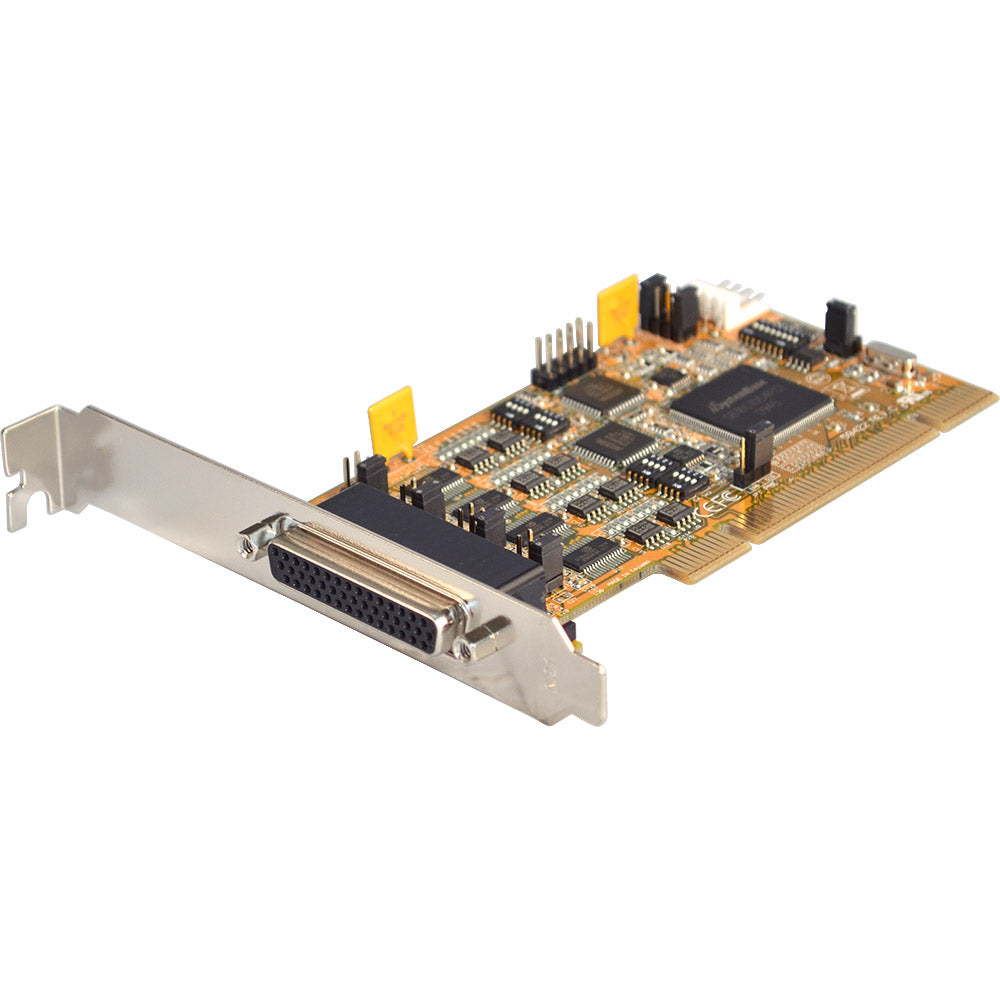

4-Port RS-232/422/485 Universal PCI Serial Card
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSC-104CL
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira MSC-104CL Documents
Overview
Details for MSC-104CL
4-Port RS-232/422/485 Universal PCI Serial Card
Antaira Technologies’ New MSC-104CL is a high performance RS232/422/485 3-in-1 multiple serial I/O card. Each port can be individually set in RS232, RS422, RS485-4wire or RS485-2wire mode. The card is fully PCI Plug-and-Play compatible and no IRQ and I/O address conflict; and it comes with complete software drivers to support most of the major operating systems. The item will also include with an external DB44M-to-4xDB9M fan out octopus cable. It provides FIFO size up to 256-byte, software and hardware flow control feature. The MSC-104CL is an ideal Serial COM Ports expansion solution for any Host Computers in any industrial serial applications.Features
- Fully PCI Bus 2.3 and PCI Power Management 1.1 Compliant
- Supports 4 RS232/422/485 serial ports over a PCI Slot
- Supports low profile form factor by an optional short bracket
- Independent mode-selection DIP switch pins for each port
- Supports RS232, RS422, RS485-4wire and RS485-2wire modes
- ±15kV IEC1000-4-2 ESD Protection for RS-232 I/O's
- Supports both 3.3V and 5V PCI Slots
- 256-byte deep FIFO per transmitter and receiver
- Supports 5V or 12V over DB44 connector pins, the Fan out Octopus Cable Supplies it to DB9 Connectors
- Software/Hardware Flow Control & Xoff Re-Transmit Function
- Supports Win98/ME, 2K, 2003, XP, Vista, Win7, 8, 8.1 and Linux
- 5-Year Warranty
Included
- 1 - DB44M-to4xDB9M fan out cable
- 1 - Installation Guide
- 1 - Low Profile Short Bracket
- 1 - MSC-104CL
- 1 - Product CD
Specifications
- Baud Rate
- Up to 921.6Kbps
- Bracket
- Optional Low Profile Short Bracket supports Low Profile PCI form factor
- Connection Cable
- 1 * DB44M-to4xDB9M fan out cable (included)
- Data Bits
- 1, 1.5, or 2 Stop Bit Generation
- Dimensions
- 120.00 x 63.50mm (4.72” x 2.50”)
- Flow Control
- Software/Hardware & Xoff Transmit
- Humidity
- 5 to 95%, (non-condensing)
- Humidity
- 5 to 95%, (non-condensing)
- Mode
- RS232, RS422, RS485-4wire, and RS485-2wire selectable
- Operating Temperature
- 0 to 55 C (32 to 131 F)
- OS Support
- Windows 98, ME, 2000, 2003, Vista, Win 7, Win 8, 8.1, and Linux
- Parity
- None, Even, Odd
- Serial Ports
- 4 * RS232/422/485 serial ports, with a DB44Female output connector
- Standards
- Fully PCI 2.3 and PCI Power Management 1.1 compatible
- Storage Temperature
- -20 to 85 C (-4 to 185 F)
- Warranty
- 5-Year
