4-Port RS-422/485 Universal PCI Card w/Surge and Isolation

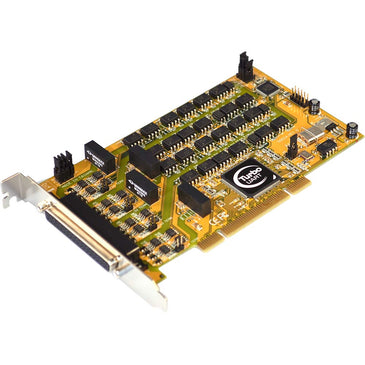

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSC-104B-SI
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira MSC-104B-SI Documents
Overview
Details for MSC-104B-SI
4-Port RS-422/485 Universal PCI Card w/Surge and Isolation
Antaira Technologies MSC-104B-SI is a four port RS-422/485 PCI card, designed for the PC workstation as either a client or server. Capable of providing instant 4 port serial port expansion via the PCI bus. The MSC-104B-SI is compatible with new and legacy RS-422/485 devices. With easy installation and use with its plug-and-play feature. MSC-104B-SI provides the scalability to quickly adapt to new serial technologies and I/O devices. With the PCI Plug-and-Play feature and drive, simply follow the Install Wizard and you are done. The Install wizard will recognize the device upon connection and install the drivers automatically. MSC-104B-SI will have two DB9 male connectors that are suitable for both 4-wire RS-422/485 and 2-wire RS-485 applications.The major benefit of the MSC-104B-SI serial card is the surge and isolation protection of 15KV.Features
- Supports Quad 16C950 UART Serial Ports over PCI Slot
- PCI 32-bit, PIO Mode with 133MB/S Bandwidth
- Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA?v Hardware
- PCI IRQ Sharing Feature Eliminates IRQ Conflicts
- 4XDB9-male Connectors with DB37M Octopus Cable
- 4-wire RS-422 and 2-wire RS-485 applications
- Supports 128-Byte Deep FIFO
- Supports Baud Rate up to 921.6Kpbs
- Isolated and 15KV ESD Surge Protection
Included
- 4 x DB-9 Male Cable (DB-37)
- CD Drivers/Utilities
- MSC-104B-SI
- Quick Start Guide
Specifications
- ATTA
- Auto RS-485 Transmitter buffer direction control by the ATTAÖ Hardware
- Baud Rate
- Up to 921.6Kbps
- Data Bits
- 5,6,7,8,9 bits Data Frames
- Dimensions
- 3.88" x 6.63" (9.84cm x 16.83cm)
- Interface
- 3 modes are selectable:;4-wire RS-422 (TXD+/-, RxD+/-);2-wire RS-485 (TxD+/-, RxD+/-);2-wire RS-485 (Data+/-, Data+/-)
- Isolation Protection
- Optical Isolated
- Operating Humidity
- 10% to 90% relative humidity (non-condensing)
- Operating Temperature
- 0 to 55°C (32 to 131°F)
- OS Support
- Windows 95/98/Me, NT, 2000, XP, 2003, Vista, Windows 7, and Linux
- Parity
- None, Even, Odd
- PCI Interface
- Fully PCI Bus Specification 2.2 compliant
- Serial Ports
- 4 x RS-422/485 via DB44F Connector;DB44M to 4*DB9M
- Storage Humidity
- 5% to 95% relative humidity (non-condensing)
- Storage Temperature
- -40 to 75°C (-40 to 167°F)
- Surge Protection
- 15KV ESD Surge Protection Circuits
- System
- For 32-bit 33/66MHZ PCI Bus Systems
- Terminator
- 120 OHM, can be Enabled/Disabled by Jumpers
