LRX-0200-T | Industrial Router with VPN/NAT extended temperature version ( -35°C to 70°C ) | Antaira

Industrial Router with VPN/NAT extended temperature version ( -35°C to 70°C )

Brand: AntairaSKU: LRX-0200-T

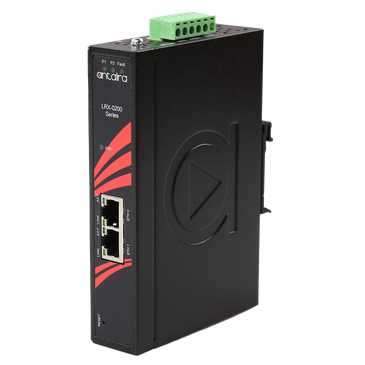

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRX-0200-T

Jump to: Overview & Specifications Reviews

Overview Details for LRX-0200-T

Industrial Router with VPN/NAT extended temperature version ( -35°C to 70°C )

Antaira Technologies’ LRX-0200-T is an industrial router with VPN and NAT functionality. This industrial router boasts network robustness, stability, and a wide network coverage with a low voltage input of 12V.The LRX-0200-T industrial router is capable of operating in different modes and with an extended operating temperature range, which makes it suitable for a wide variety of applications including long-distance deployments.

Features

Supports 2*10/100Base-TX LAN Ports
Supports OpenVPN and IP Forwarding (1:1 NAT)
Power Input: 12~48VDC in 6-Pin Terminal Block
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
Operating Temperature - EOT: -35°C to 70°C
5-Year Warranty

Included

LRX-0200-T

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 30 x 140 x 95 mm (W x H x D)
EMI: FCC Part 15 Subpart B;CE EN 55032;EN301489-1/-17;FCC Part 15 Subpart B;CNS13438;AS/NZS CSIPR 32
EMS: CE EN55024;IEC61000-4-2,3,4,5,6,8,11
Ethernet Port: 2*10/100Tx
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 Protection
Input Voltage: 12~48VDC, Redundant Input
LED Indicators: Power 1, Power 2, Fault, Diag, Link, Activity
Mounting: DIN-Rail, Wall Mounting
Operating Temperature: -35°C to 70°C
Overload Current Protection: Present
Power Connection: 6-Pin Terminal Block
Power Consumption: 8 Watts
Protocols: IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP
Reverse Polarity Protection: Present
Shock: IEC60068-2-27
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Storage Temperature: -40°C ~ 90°C
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 0.60 lb.;Shipping: 1.0 lb.
