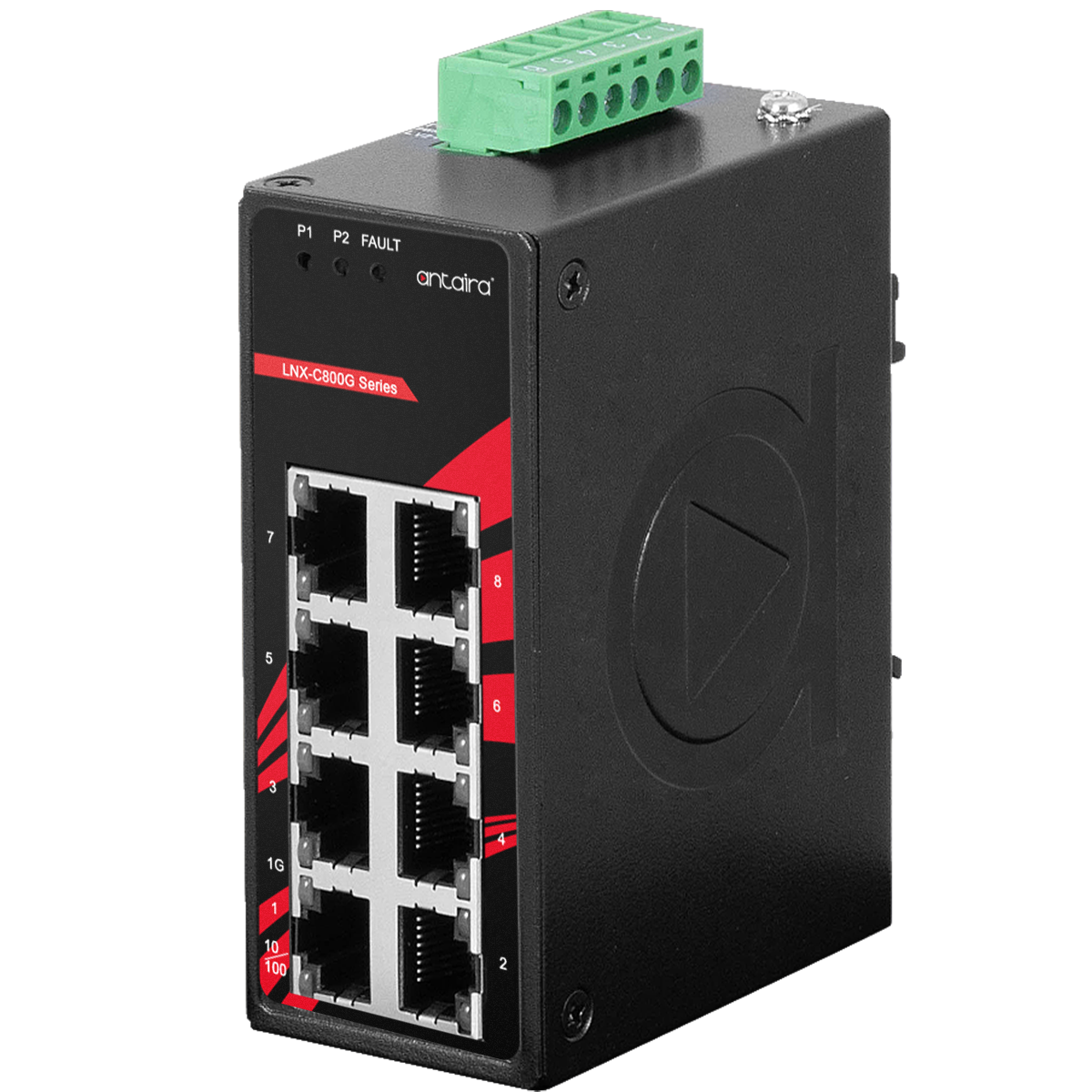

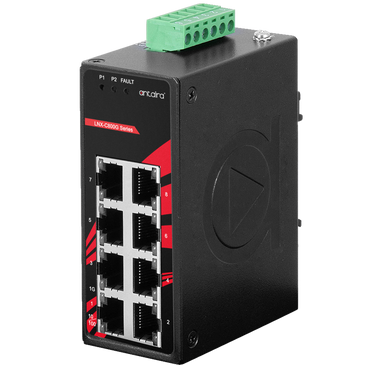

LNX-C800G | 8-Port Industrial Compact Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx | Antaira

8-Port Industrial Compact Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx

Antaira Technologies’ LNX-C800G series is a compact 8-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. The LNX-C800G series is equipped with 8*10/100/1000Tx RJ45 Ethernet ports; with a backplane speed of 16gbps. The industrial-grade design and compact size of the LNX-C800G series makes this the ideal unit for integration into projects or other applications that need a small footprint.The LNX-C800G series supports reverse polarity and overload current protection. This product series supports DIN-rail as well as wall-mountable orientations and provides standard operating temperature range model in -10°C to 65°C. This is an industrial-grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.

Features

• Compact Industrial Grade Design
• Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• Redundant Power Input Design: 12~48VDC
• Power Polarity Reverse Protect
• Overload Current Protection
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operation Temperature Range: -10°C to 65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• LNX-C800G
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
