LNX-C800-T | 8-Port Industrial Compact Unmanaged Ethernet Switch | w/8*10/100Tx; EOT: -40°C to 75°C | Antaira
8-Port Industrial Compact Unmanaged Ethernet Switch, w/8*10/100Tx; EOT: -40°C to 75°C

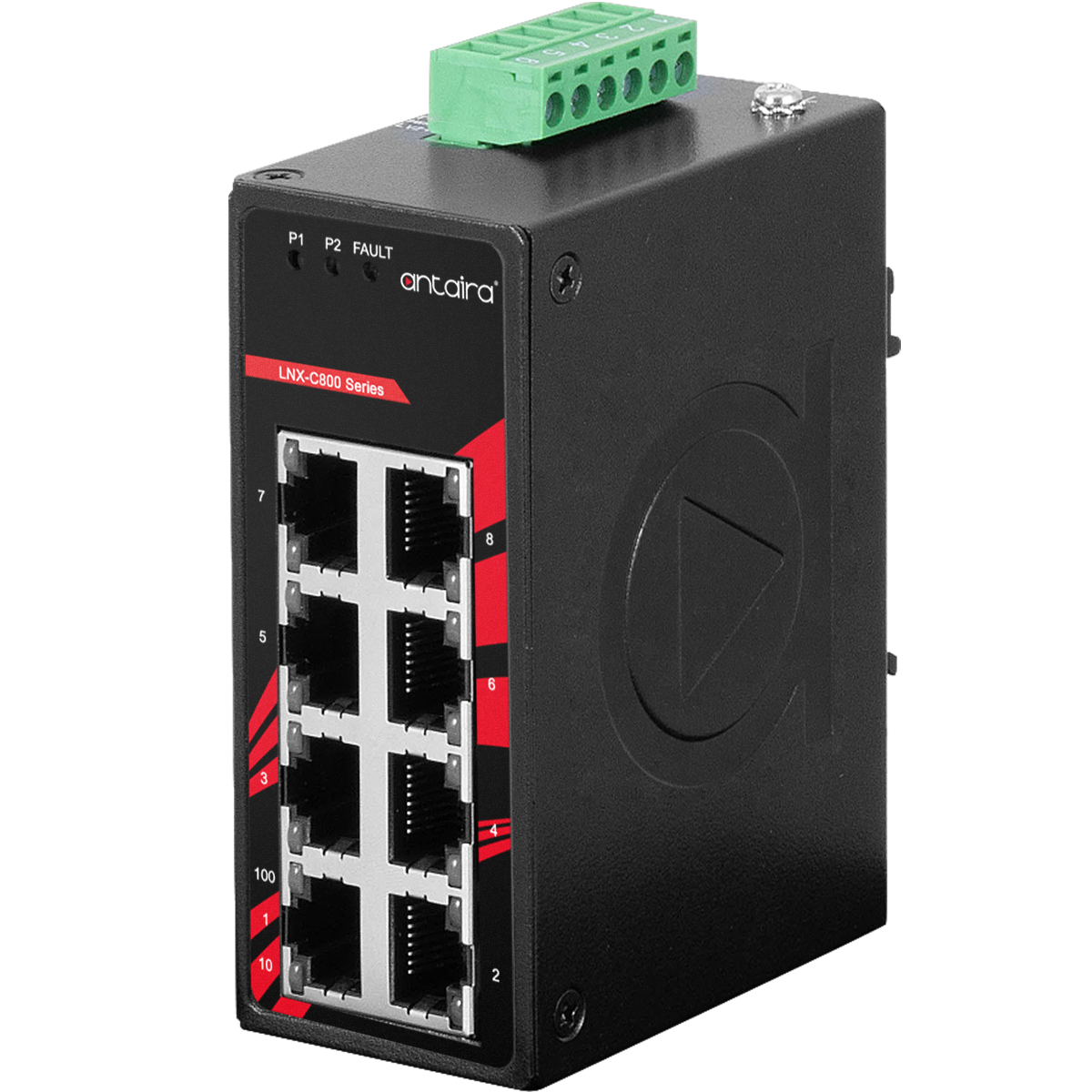

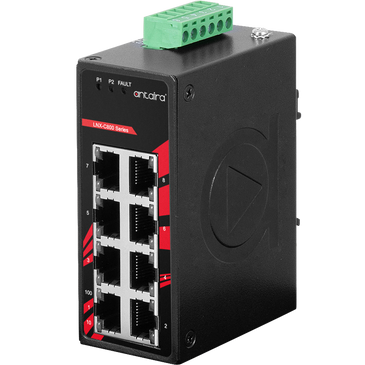

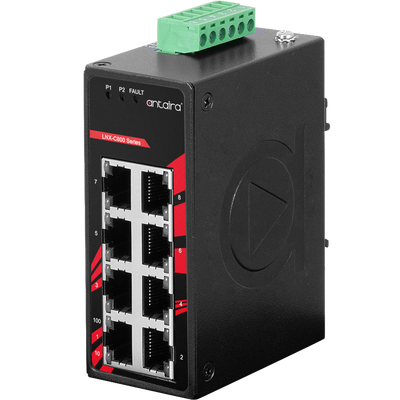

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-C800-T
Documents and manuals
Antaira LNX-C800-T Documents
Overview
Details for LNX-C800-T
8-Port Industrial Compact Unmanaged Ethernet Switch | w/8*10/100Tx; EOT: -40°C to 75°C
Antaira Technologies’ LNX-C800 series is a compact 8-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. The LNX-C800 series is equipped with 8*10/100Tx RJ45 Ethernet ports. The industrial-grade design and compact size of the LNX-C800 series make this the ideal unit for integration into projects or other applications that need a small footprint.The LNX-C800 industrial switch series supports reverse polarity and overload current protection. This industrial switch series supports DIN-rail as well as wall-mountable orientations and provides extended operating temperature range models in -40°C to 75°C. This is an industrial-grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.Features
- Compact Industrial Grade Design
- Supports 8-Port 10/100Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Redundant Power Input Design: 12~48VDC
- Power Polarity Reverse Protect
- Overload Current Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operation Temperature Range: -40°C to 75°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNX-C800-T
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Back Plane
- 1.6Gbps
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Dimensions
- 40 x 95 x 70 mm
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal IP30 rated
- Input Voltage
- 12~48VDC Redundant Input
- LED Indicators
- Per Unit: Power 1 & 2, and Fault
- MAC Table Size
- 1K
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable;100Base-TX: 2-pair UTP/STP Cat. 5 cable
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present (Slow-Blown Fuse)
- Packet Buffer
- 448 Kbits
- Power Connection
- 1 removable 6-contact terminal block
- Power Reverse Polarity Protection
- Present
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet
- Storage Temperature
- -40°C ~ 85°C
- System Power Consumption
- 2.2 Watts
- Transfer Rate
- 14,880pps for 10Base-T Ethernet port;148,800pps for 100Base-T Fast Ethernet port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 0.74 lb;Shipping: 1.05 lbs
