LNX-C500-T-CC | Compact 5-Port Industrial Unmangaed Ethernet Switch | w/5*10/100TX; EOT: -40 to 75C with Conformal Coating | Antaira
Compact 5-Port Industrial Unmangaed Ethernet Switch, w/5*10/100TX; EOT: -40 to 75C with Conformal Coating

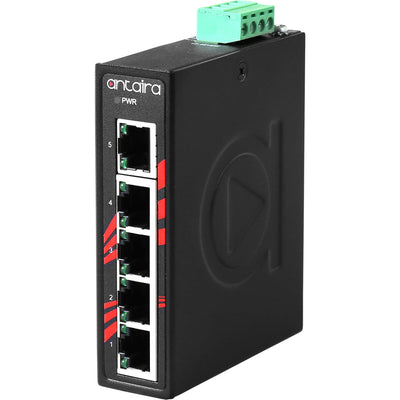

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-C500-T-CC
Overview Details for LNX-C500-T-CC
Compact 5-Port Industrial Unmangaed Ethernet Switch | w/5*10/100TX; EOT: -40 to 75C with Conformal Coating
Antaira’s compact design LNX-C500-T industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The LNX-C500-T is equipped with 5*10/100Tx RJ45 Ethernet ports; with a backplane speed of 1gbps. The small form factor of this industrial switch is 30% smaller allowing for a more versatile implementation. The conformal coating adds a layer of protection against gases, dust and water.Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Antaira’s conformal coating process meets or exceed the standards for protection against gases, dust, and water.This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40 to 75°C.The LNX-C500-T is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.Features
- Conformal Coating
- Compact Industrial Grade Design
- Supports 5*10/100Tx
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Extended Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- DIN-Rail and Wall Mounting Brackets
- LNX-C500-T-CC
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Compliance
- NEMA TS1/TS2
- Corrosion Prevention
- IEC 60068-2-11, IEC 60068-2-52, IEC 60068-2-60;IPC-CC-830B, MIL-I-46058C, IEC 61086-2 (Class 2), UL 94, UL 746E;ISO 9223 (Class C5-Very High, Class GX-Severe);ANSI/ISA 71.04 (Class GX-Severe)
- Dimensions
- 26 x 95 x 75 mm
- EMI
- FCC Class A
- EMS
- EN61000-4-2,3,4,5,6,8
- Ethernet Port
- 5*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~48VDC Redundant Input
- LED Indicators
- Power and Port Link/Activity Status
- MAC Table Size
- 8K
- Mounting
- DIN-Rail; Wall-mount (optional)
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable;100Base-TX: 2-pair UTP/STP Cat. 5 cable
- Operating Temperature
- EOT: -40° to 75°C
- Overload Current Protection
- Present
- Packet Buffer
- 448 Kbits
- Power Connection
- 1 removable 4-contact terminal block
- Power Consumption
- 1.2 Watts
- Processing Type
- Store-and-Forward
- Protocols
- CSMA/CD
- Reverse Polarity Protection
- Present (the unit will not be on, if power reverse)
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet
- Storage Temperature
- -40°~85°C
- Warranty
- 5 Years
- Weight
- Unit: 1.0 lb;Shipping: 1.5 lbs
