LNX-C500-T | Compact 5-Port Industrial Unmangaed Ethernet Switch | w/5*10/100TX; EOT: -40 to 75C | Antaira
Compact 5-Port Industrial Unmangaed Ethernet Switch, w/5*10/100TX; EOT: -40 to 75C

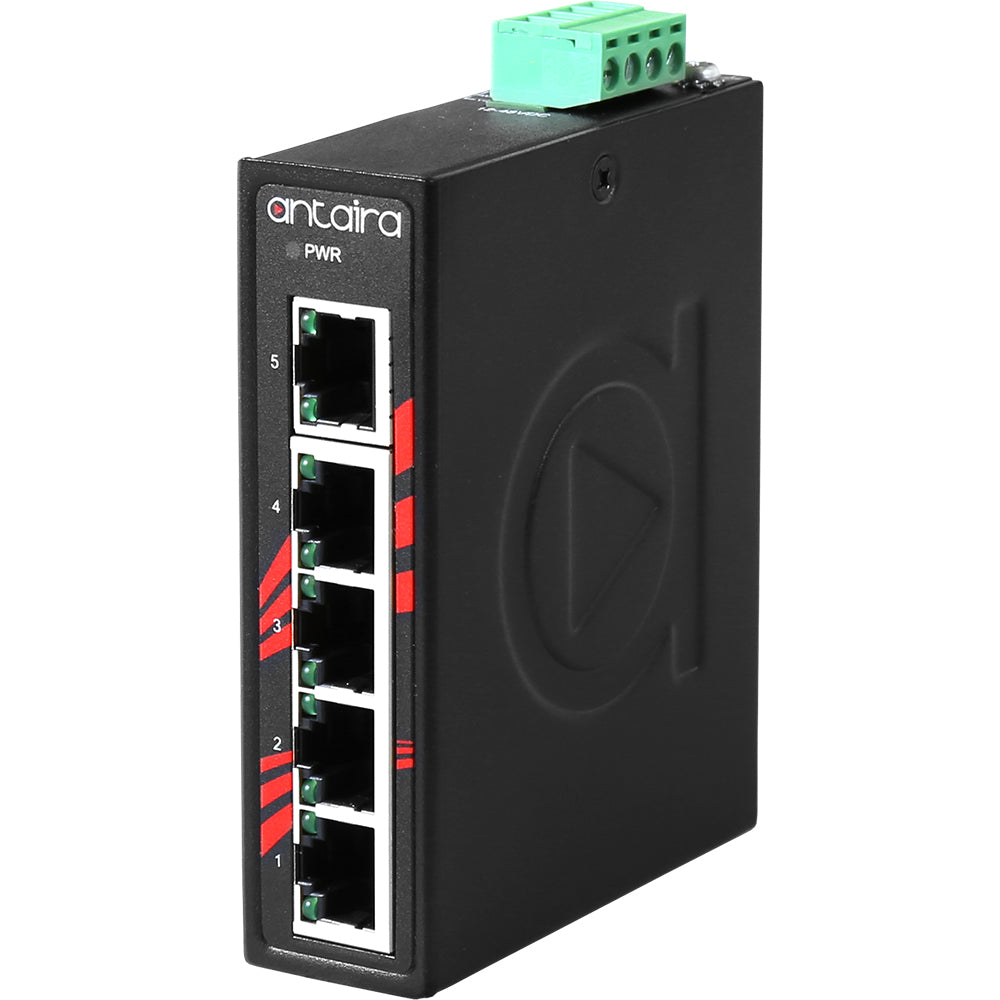

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-C500-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-C500-T Documents
Overview
Details for LNX-C500-T
Compact 5-Port Industrial Unmangaed Ethernet Switch | w/5*10/100TX; EOT: -40 to 75C
Antaira’s compact design LNX-C500-T industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The LNX-C500-T is equipped with 5*10/100Tx RJ45 Ethernet ports; with a backplane speed of 1gbps. The small form factor of this industrial switch is 30% smaller allowing for a more versatile implementation.This industrial switch series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. The industrial switch also supports an extended operating temperature from -40 to 75°C.The LNX-C500-T is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.Features
- Compact Industrial Grade Design
- Supports 5*10/100Tx
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Extended Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- DIN-Rail and Wall Mounting Brackets
- LNX-C500-T
Specifications
- Back Plane
- 1Gbps
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Dimensions
- 26 x 95 x 75 mm
- EMI
- FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
- Ethernet Port
- 5 x 10/100TX RJ-45
- Free Fall
- IEC 60068-2-32
- Humidity
- 5% ~ 95% non-condensing
- IEEE Compliance
- IEEE 802.3;IEEE 802.3u;IEEE 802.3x
- LED
- Power: for input 1 & 2
- MAC Table Size
- 8K
- Method
- Store and Forward
- Operating Temperature
- -40° ~ 75° C
- Packet Buffer
- 448 Kbits
- Power Consumption
- 1.2 Watts
- Power Input
- 12 ~ 48 VDC
- Power Redundancy
- Yes
- Protocols
- CSMA/CD
- Shock
- IEC 60068-2-27
- Storage Temperature
- -40° ~ 85° C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
