LNX-800AG-T | 8-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx | EOT: -40°C to 80°C | Antaira
8-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx, EOT: -40°C to 80°C

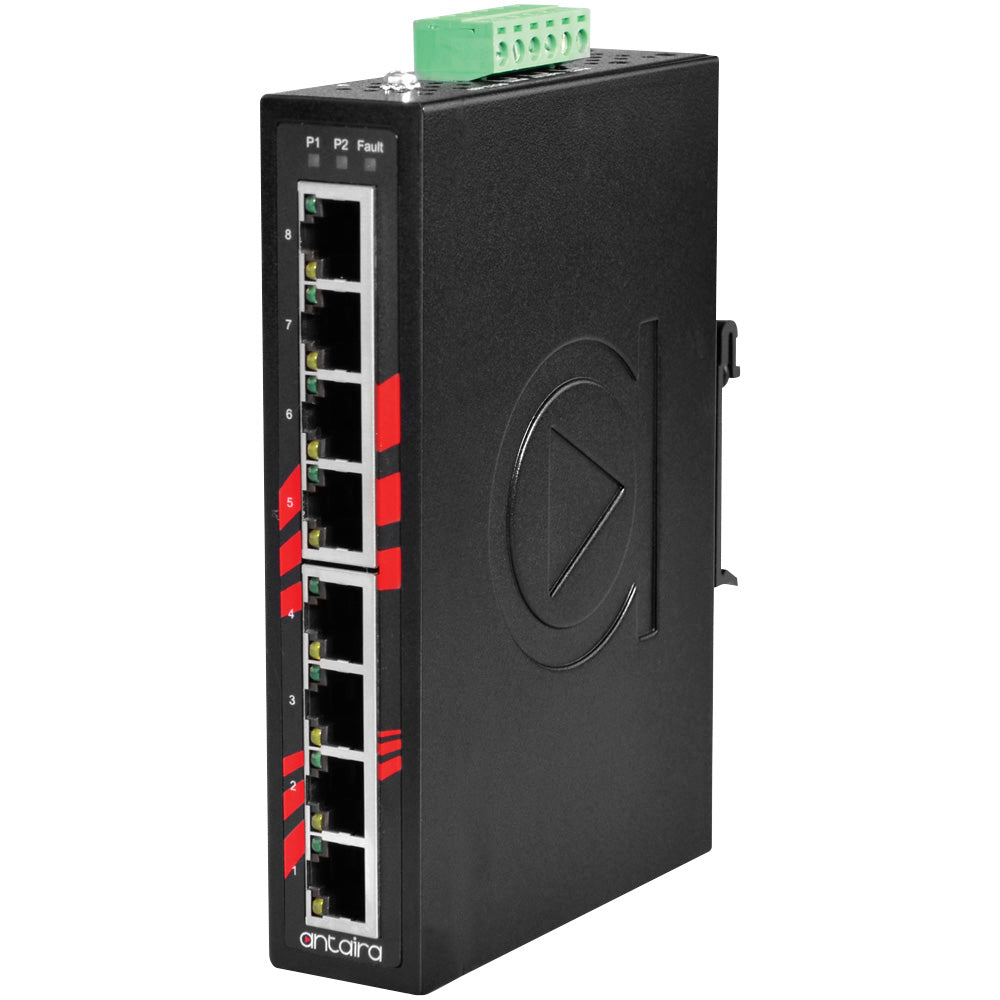

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-800AG-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-800AG-T Documents
Overview
Details for LNX-800AG-T
8-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx | EOT: -40°C to 80°C
Antaira Technologies’ LNX-800AG-T industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100/1000Tx, making it ideal for applications that demand a high bandwidth connectivity solution.This switch provides a high EFT and ESD protection that has a dual power input with a reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. There is an extended operating temperature model that supports -40°C to 75°C. The LNX-800AG-T is an ideal solution for harsh outdoor weather environments and industrial applications.Features
- Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 1.6Gbps Back Plane (Switching Fabric)
- 8K MAC Address Table
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40°C to 75°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNX-800AG-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Dimensions
- 30 x 140 x 95 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55024/EN61000-6-2;EN61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100/1000BaseTx;Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Free Fall
- IEC 60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12 ~ 48VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- LED Indicators
- System: Power 1, Power 2, Fault;Ethernet Ports: Speed/Link/Active
- MAC Table Size
- 8K
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail mounting; Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Power Connection
- 1 removable 6-contact terminal block
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC 60068-2-27
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 16Gbps
- System Power Consumption
- 9.2 Watts
- Transfer Rate
- 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for Gigabit Ethernet
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 1.0 lb.;Shipping: 1.5 lbs.
