LNX-800A-T | 8-Port Industrial Unmanaged Switch | w/8*10/100Tx; EOT (-40°C - 75°C) | Antaira

8-Port Industrial Unmanaged Switch, w/8*10/100Tx; EOT (-40°C - 75°C)

Antaira | LNX-800A-T

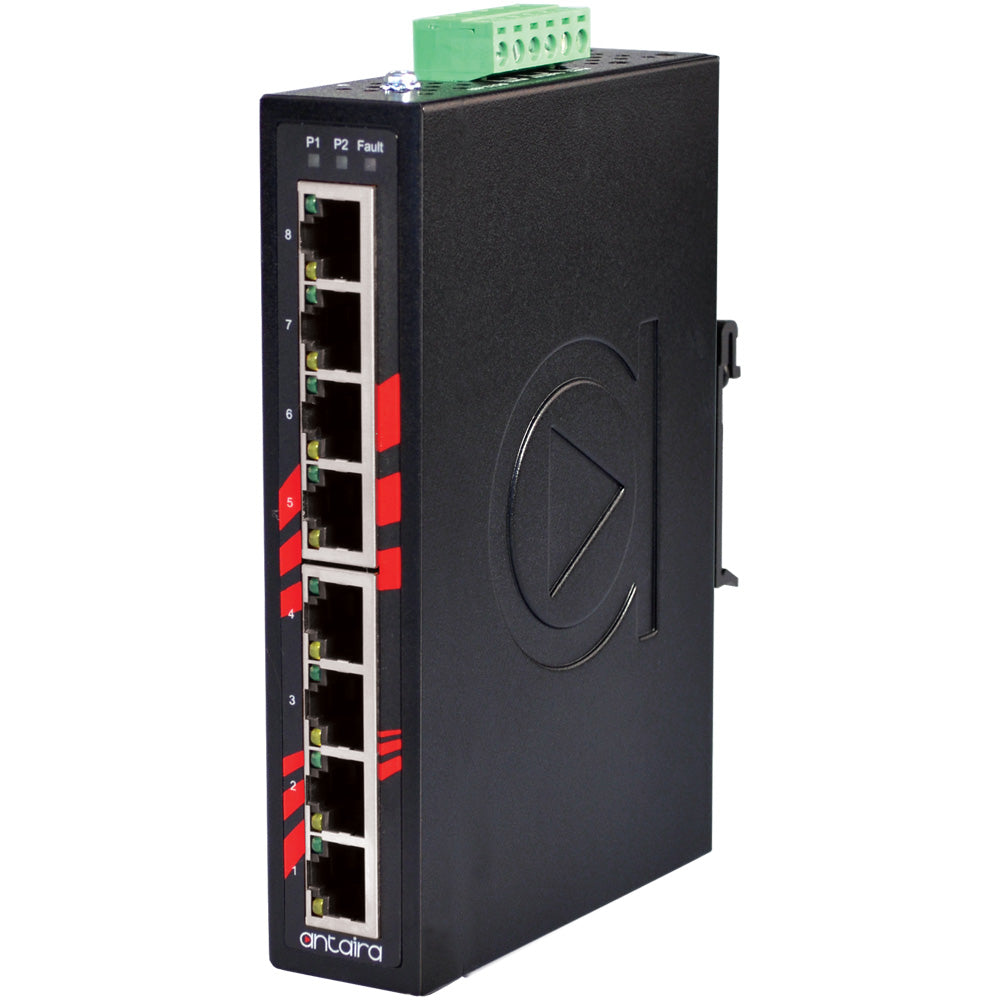

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNX-800A-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LNX-800A-T Documents

Product Datasheet Product Manual More Info

Overview

Details for LNX-800A-T

8-Port Industrial Unmanaged Switch | w/8*10/100Tx; EOT (-40°C - 75°C)

The LNX-800A-T is a 8-Port Slim Industrial Ethernet Switch. (Extended Operating Temperature)

Features

Extended Operating Temperature -40° ~ 75° C (-40° ~ 176° F)
Store and Forward Switching Architecture
Flow Control on Full-Duplex
Back Pressure on Half-Duplex
Supports Auto MDI/MDI-X Function
Wide-Ranging Redundant Power Design
UL Class I, Division 2 Certified
DIN-Rail and Wall Mount Design
Slim IP-30 Case Design

Included

LNX-800A-T
Mounting Brackets

Specifications

Back Plane: 1.0Gbps
Buffer: 512Kbits
Certifications: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions: IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
EMI: FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
Ethernet Port: 8 x 10/100TX RJ-45
Fault Output: 1 Relay Output
Free Fall: IEC 60068-2-32
Humidity: 5% ~ 95% non-condensing
IEEE: IEEE 802.3;IEEE 802.3u;IEEE 802.3x
LED: Port: Link/Activity, Full Duplex/Collision;Unit: Power1, Power2, Fault
Mac Address Table: 1K MAC Address Table
Method: Store and Forward
Operating Temperature: -40° ~ 75° C (-40° ~ 167° F)
Power Consumption: 3.84 Watts
Power Input: 12 ~ 48 VDC
Power Redundancy: Yes
Protocols: CSMA/CD
Shock: IEC 60068-2-27
Storage Temperature: -40° ~ 85° C
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration: IEC 60068-2-6
Warranty: 5 Years

Parts & Accessories

Antaira TB-6P-Male 6-Pin Green Terminal Block for Antaira Switches | Blackhawk Supply

TB-6P-Male | 6-Pin Green Terminal Block for Antaira Switches | Antaira

Antaira PA-STX-US Power Adapter | (US Plug) Input: AC 100-240V 50/60Hz 0.4A Output: DC 12V 1.25A | Blackhawk Supply

PA-STX-US | Power Adapter | (US Plug) Input: AC 100-240V 50/60Hz 0.4A Output: DC 12V 1.25A | Antaira

Antaira MDR-10-24 10 Watt Series / 24 VDC / 0.42 Amp Industrial Slim Single Output DIN Rail Power Supply | Blackhawk Supply

MDR-10-24 | 10 Watt Series / 24 VDC / 0.42 Amp Industrial Slim Single Output DIN Rail Power Supply | Antaira

Antaira DIN-RAIL-10 35mm Steel DIN-Rail Track - 10 Inches Long | Blackhawk Supply

DIN-RAIL-10 | 35mm Steel DIN-Rail Track - 10 Inches Long | Antaira

Antaira DIN-RACK-2U Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products | 2U Height | Blackhawk Supply

DIN-RACK-2U | Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products | 2U Height | Antaira
