LNX-800A | 8-Port Industrial Unmanaged Switch | w/8*10/100Tx | Antaira

8-Port Industrial Unmanaged Switch, w/8*10/100Tx

Brand: AntairaSKU: LNX-800A
Antaira | LNX-800A

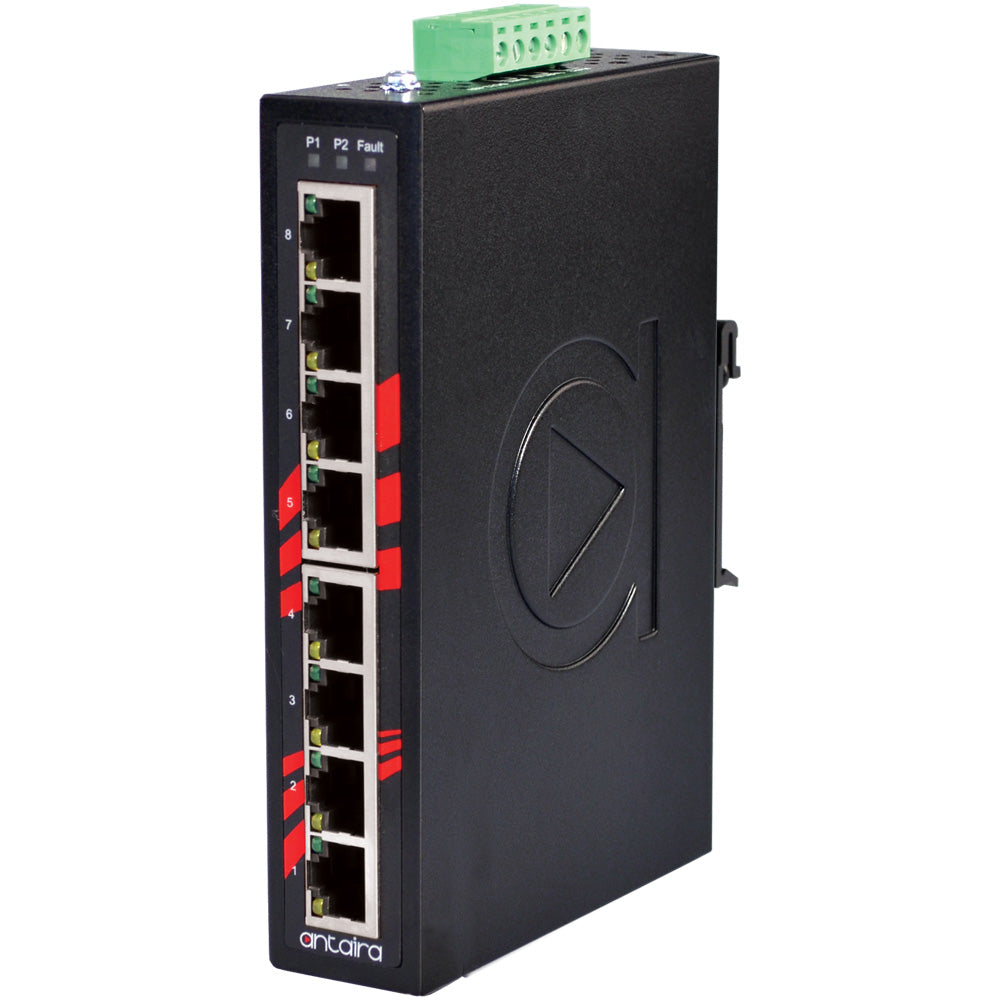

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-800A
Overview & Specifications ReviewsParts & Accessories

Overview Details for LNX-800A

8-Port Industrial Unmanaged Switch | w/8*10/100Tx

The LNX-800A is a 8-Port Slim Industrial Ethernet Switch

Features

  • Store and Forward Switching Architecture
  • Flow Control on Full-Duplex
  • Back Pressure on Half-Duplex
  • Supports Auto MDI/MDI-X Function
  • Wide-Ranging Redundant Power Design
  • UL Class I, Division 2 Certified
  • DIN-Rail and Wall Mount Design
  • Slim IP-30 Case Design

Included

  • LNX-800A
  • Mounting Brackets

Specifications

Back Plane
1.0Gbps
Buffer
512Kbits
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions
IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
EMI
FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
Ethernet Port
8 x 10/100TX RJ-45
Fault Output
1 Relay Output
Free Fall
IEC 60068-2-32
Humidity
5% ~ 95% non-condensing
IEEE
IEEE 802.3;IEEE 802.3u;IEEE 802.3x
LED
Port: Link/Activity, Full Duplex/Collision;Unit: Power1, Power2, Fault
Mac Address Table
1K MAC Address Table
Method
Store and Forward
Operating Temperature
-10° ~ 70° C (14° ~ 158° F)
Power Consumption
4.71 Watts
Power Input
12 ~ 48 VDC
Power Redundancy
Yes
Protocols
CSMA/CD
Shock
IEC 60068-2-27
Storage Temperature
-40° ~ 85° C
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration
IEC 60068-2-6
Warranty
5 Years
