LNX-500AG-T | 5-Port 10/100/1000T Port Industrial Ethernet Switch | EOT -40C~75C | Antaira

5-Port 10/100/1000T Port Industrial Ethernet Switch, EOT -40C~75C

Antaira | LNX-500AG-T

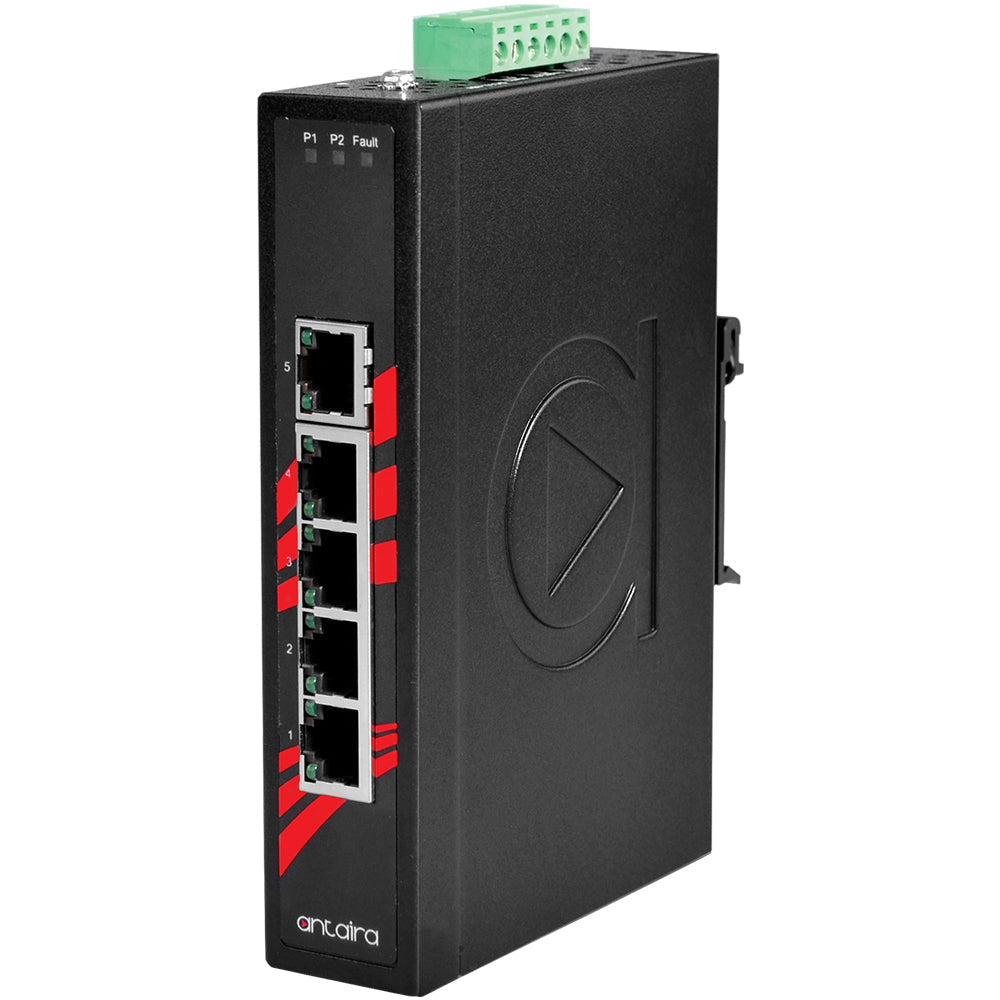

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNX-500AG-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LNX-500AG-T Documents

Product Datasheet Product Manual More Info

Overview

Details for LNX-500AG-T

5-Port 10/100/1000T Port Industrial Ethernet Switch | EOT -40C~75C

The LNX-500AG-T is a 5-Port 10/100/1000T Slim Industrial Ethernet Switch (Extended Operating Temperature)

Features

Extended Operating Temperature -40° ~ 75° C (-40° ~ 167° F)
RJ-45 Port Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10 Gbps Back-Plane (Switching Fabric)
136 Kbits Memory Buffer
8K MAC Address Table
9 Kbytes Jumbo Frame
Wide-Range Redundant Power Design
Power Polarity Reserve Protect
Overload Current Reset Fuse Present
Supports 4000 VDC Ethernet ESD Protection
IP-30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount Design
UL Class I, Division 2 Certified
5-Year Warranty

Included

LNX-500AG-T
Mounting Brackets

Specifications

Back Plane: 10.0 Gbps
Buffer: 136Kbits
Dimensions: IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
EMI: FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
ESD: 6,000VDC
Ethernet Port: 5 x 10/100/1000T RJ-45
Fault Output: 1 Relay Output
Free Fall: IEC 60068-2-32
Gigabit Ethernet Port: Yes, Ethernet Ports
Humidity: 5% ~ 95% non-condensing
IEEE: IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX & 1000BaseFX;IEEE 802.3ab 1000BaseT;IEEE 802.3x Flow Control and Back-Pressure
Jumbo Frame: 9Kbytes
LED: Port: Link/Activity, Speed;Unit: Power1, Power2, Fault
Mac Address Table: 8K MAC Address Table
Method: Store and Forward
Operating Temperature: -40° ~ 75° C (-40° ~ 167° F)
Overload Current: Yes
Power Consumption: 5 Watts
Power Input: 12 ~ 48 VDC
Power Redundancy: Yes
Protocols: CSMA/CD
Reverse Polarity: Yes
Safety: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Shock: IEC 60068-2-27
Storage Temperature: -40° ~ 85° C
Surge Protection: 3,000VDC
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC 60068-2-6
Warranty: 5 Years
