LNX-500AG | 5-Port 10/100/1000T Port Industrial Ethernet Switch | Antaira

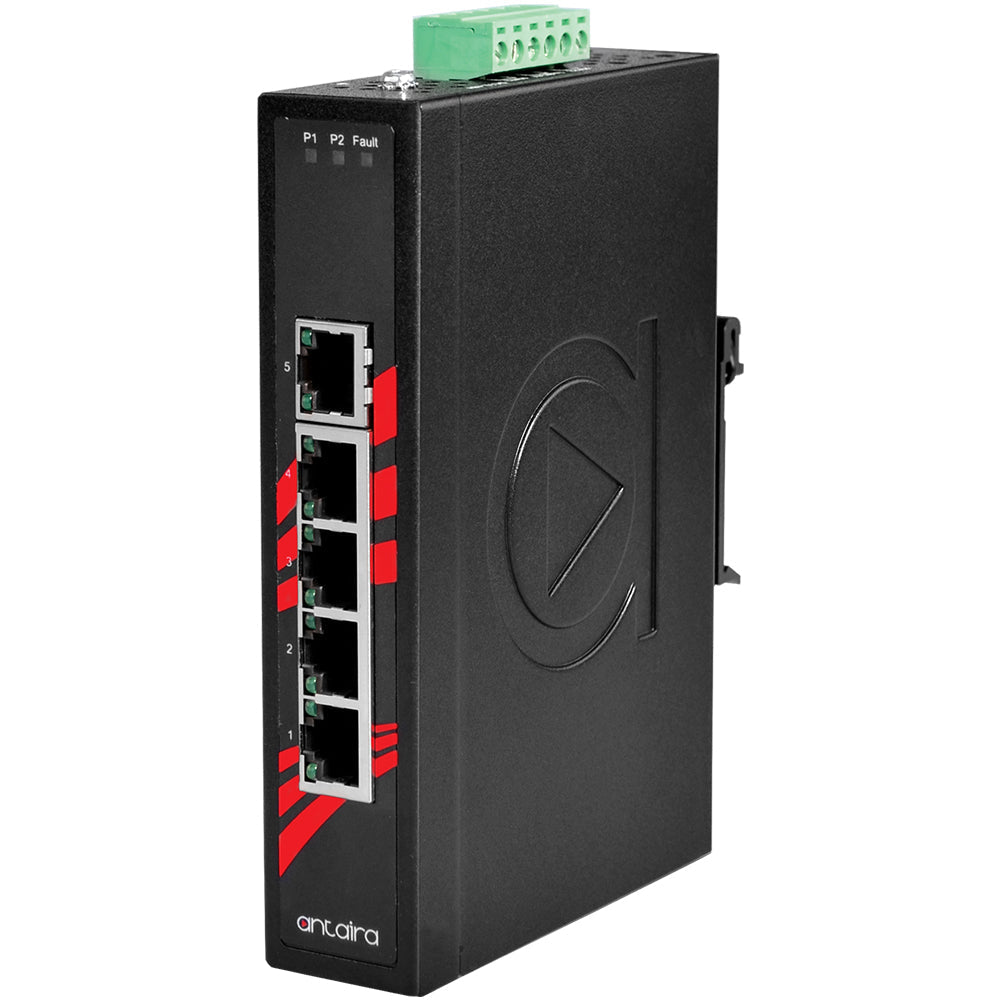

5-Port 10/100/1000T Port Industrial Ethernet Switch
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-500AG
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-500AG Documents
Overview
Details for LNX-500AG
5-Port 10/100/1000T Port Industrial Ethernet Switch
Antaira Technologies LNX-500AG 5-Port Gigabit Industrial Unmanaged Ethernet Switch supports 10/100/1000 Mbps Auto-Negotiation and has a wide range DC power input design (12 – 48 VDC). This ruggedized Gigabit Ethernet switch also supports Auto MDI/MDI-X function, 9K Jumbo Frames, and has a 10 GBPS Back-Plane. The LNX-500AG has a slim and compact design while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.Features
- Network Broadcast Storm Protection
- 5-Ports 10/100/1000Tx Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~48VDC
- Built-in 1 Relay Output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Included
- LNX-500AG
- Mounting Brackets
Specifications
- Broadcast Storm Rate Limit
- 7,926pps (default)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Connection
- 1 removable 6-contact terminal block
- Dimensions
- IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
- EMI
- FCC Class A
- EMS
- EN6100-4-2 (ESD), EN6100-4-3 (RS), EN6100-4-4 (EFT), EN6100-4-5 (Surge), EN6100-4-6 (CS),;EN6100-4-8, EN6100-4-11, EN6100-4-12, EN6100-6-2, EN6100-6-4
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC 60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Humidity
- 5% ~ 95% non-condensing
- Jumbo Frame
- 9.6Kbytes
- Mac Address Table
- 8K MAC Address Table
- Memory Buffer
- 136Kbits
- Mounting
- DIN-Rail mounting, wall mounting (optional)
- Network Cable
- 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -10° ~ 70° C (14° ~ 158° F)
- Overload Current
- Yes
- Power Consumption
- 5 Watts
- Power Input
- 12 ~ 48 VDC, Redundant Input
- Power Redundancy
- Yes
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Reverse Polarity
- Yes
- RJ45 Ports
- 5*10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Safety
- UL, cUL, CE-EN60950-1
- Shock
- IEC 60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT
- Storage Temperature
- -40° ~ 85° C
- Switching Architecture
- Back-Plane (Switching Fabric): 10Gbps;Packet Throughput Ability (Full-Duplex): 14.88Mpps @ 64bytes
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
- Weight
- Unit Weight: 1-lbs. Shipping Weight: 1.5 lbs
