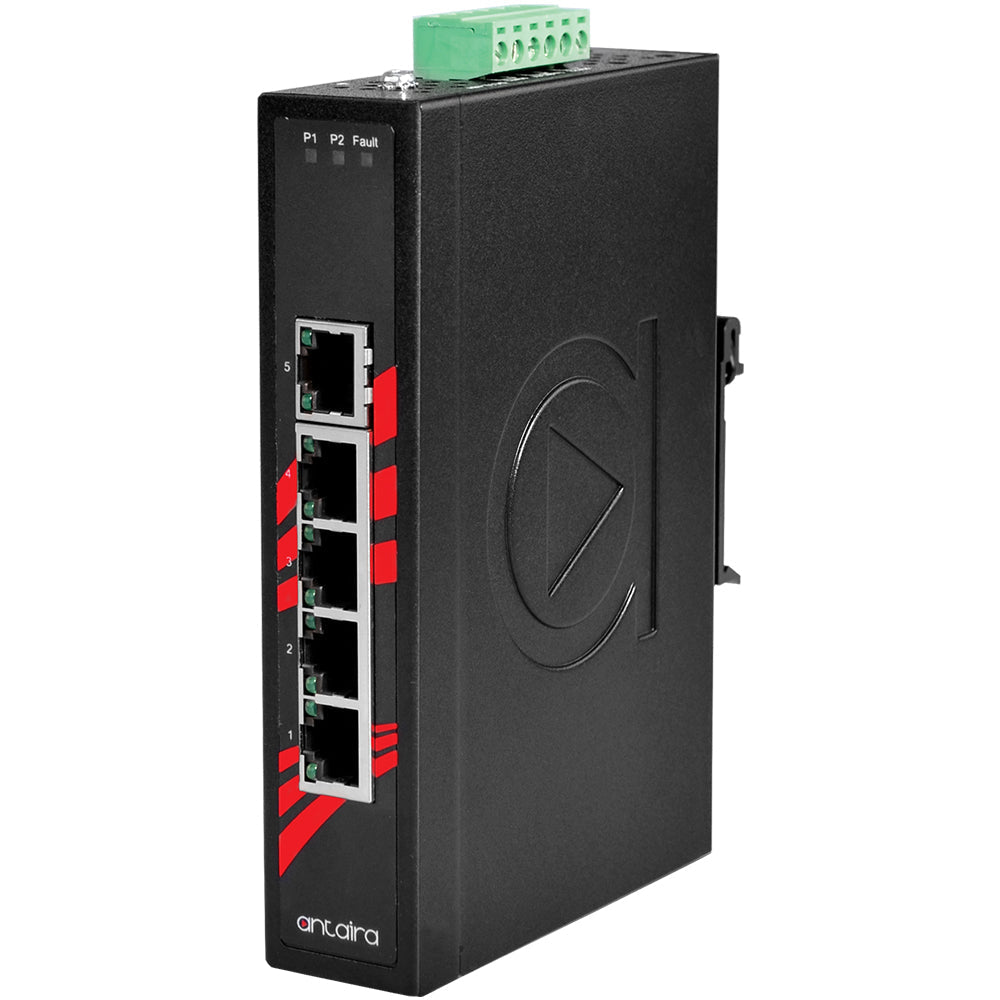

LNX-500A-T | 5-Port 10/100TX Slim Industrial Ethernet Switch | Extended Operating Temperature (-40°C ~ 75°C) | Antaira

5-Port 10/100TX Slim Industrial Ethernet Switch | Extended Operating Temperature (-40°C ~ 75°C)

Antaira Technologies LNX-500A-T Wide Temperature Operating Industrial Ethernet Switch is a leading low price solution for all harsh environment automation or industrial networking projects. This Fast Ethernet supporting 5 port industrial switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. The LNX-500A-T has a wide operating temperature of -40ºC to 75ºC (-40ºF - 167ºF). Each port on the LNX-500A-T industrial switch has two LED lights to easily indicate link status and transmission speed. This ruggedized Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. The LNX-500A-T industrial switch is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications

Features

• Extended Operating Temperature -40° ~ 75° C (-40° ~ 167° F)
• Store and Forward Switching Architecture
• Flow Control on Full-Duplex
• Back Pressure on Half-Duplex
• Supports Auto MDI/MDI-X Function
• Wide-Ranging Redundant Power Design
• UL Class I, Division 2 Certified
• DIN-Rail and Wall Mount Design
• Slim IP-30 Case Design

Included

• LNX-500A-T
• Mounting Brackets
