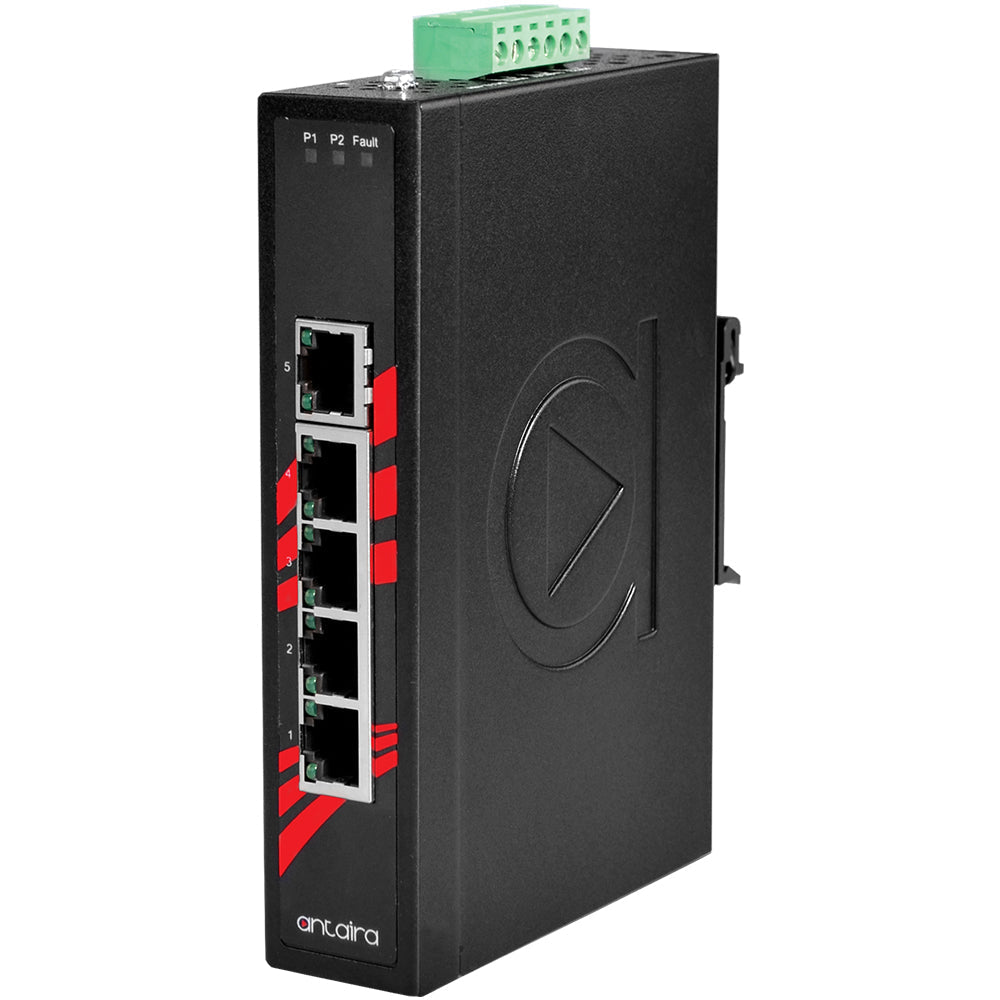

LNX-500A | 5-Port 10/100TX Slim Industrial Ethernet Switch | Antaira

5-Port 10/100TX Slim Industrial Ethernet Switch

Antaira Technologies LNX-500A unmanaged industrial Ethernet switch is a leading low price solution for all automation or industrial networking projects. This Fast Ethernet supporting 5-port industrial Ethernet switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. Each port on the LNX-500A industrial switch has two LED lights to easily indicate link status and transmission speed. This ruggedized unmanaged industrial switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. The LNX-500A industrial switch is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.

Features

• Industrial Unmanaged Ethernet Switch
• Store and Forward Switching Architecture
• Flow Control on Full-Duplex
• Back Pressure on Half-Duplex
• Supports Auto MDI/MDI-X Function
• Wide-Ranging Redundant Power Design
• UL Class I, Division 2 Certified
• DIN-Rail and Wall Mount Design
• Slim IP-30 Case Design

Included

• LNX-500A
• Mounting Brackets
