LNX-2602G-SFP-T | 26-Port Industrial 1U 19" Rackmount Gigabit Unmanaged Ethernet Switch | w/24*10/100/1000TX + 2*Gigabit Combo (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots); EOT: -40 to 75C | Antaira
26-Port Industrial 1U 19" Rackmount Gigabit Unmanaged Ethernet Switch, w/24*10/100/1000TX + 2*Gigabit Combo (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots); EOT: -40 to 75C

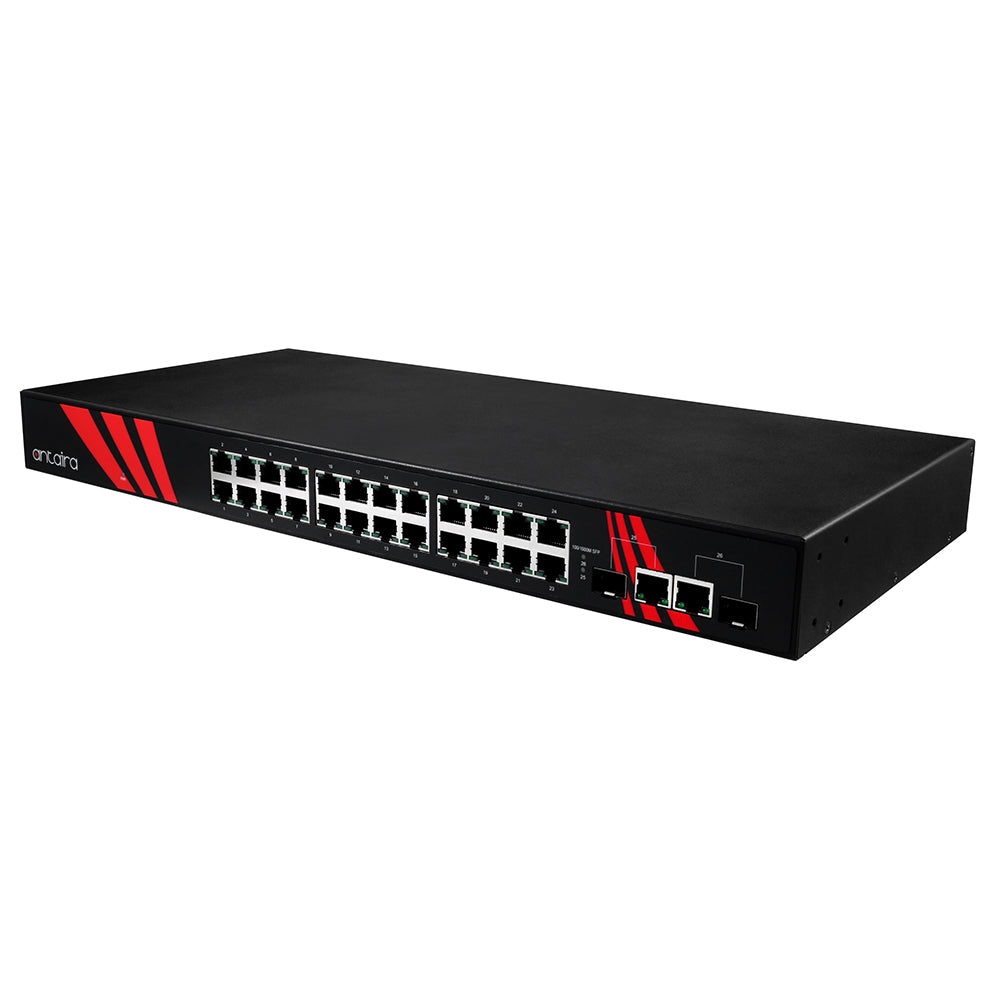

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-2602G-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-2602G-SFP-T Documents
Overview
Details for LNX-2602G-SFP-T
26-Port Industrial 1U 19" Rackmount Gigabit Unmanaged Ethernet Switch | w/24*10/100/1000TX + 2*Gigabit Combo (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots); EOT: -40 to 75C
Antaira Technologies’ LNX-2602G-SFP series industrial gigabit unmanaged Ethernet switch features twenty-four Gigabit ports, and two Gigabit combo ports with two 10/100/1000 RJ45 and two dual rate 100/1000Fx SFP slots for fiber or twisted pair connections; making it ideal for applications that demand high density of Ethernet connectivity, wide bandwidth and long distance communication within any harsh and extreme ambient weather environment applications, such as, power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries. It provides two wide operating temperature models with standard version in -10 to 70˚C or extended version in -40 to 75˚C.The LNX-2602G-SFP series is designed with IP40 rated 1U 19” rackmount, and provide high EFT and ESD protection to prevent any unregulated voltage.Features
- Supports 24*10/100/1000Tx + 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 90~264VAC
- Built-in 1 Relay Output for Power Failure Detection
- IP40 Rugged Metal Case Design
- 1U 19" Rackmount design Support
- Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Included
- 1 - AC power cord cable
- 1 - LNX-2602G-SFP-T
- 1 - Quick Installation Guide
- 1 - Set of rack mounting brackets and screws
Specifications
- Dimensions
- 440 x 44 x 200 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55022 Class A
- EMS
- IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 24*10/100/1000Tx RJ45
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Gigabit Combo Port
- 2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slots
- Green
- RoHS Compliant
- Housing / Mounting
- Metal, IP40 protection / 1U 19" Rackmount
- Input Voltage
- 90-264VAC/47-63Hz
- Jumbo Frame
- 9.6Kbytes
- MAC Table Size
- 8K
- Memory Buffer
- 4Mbits
- Network Cable
- 10Base Tx: UTP/STP Cat. 3,5;100Base Tx: UTP/STP Cat. 5;1000Base Tx: UTP/STP Cat.5/5e/6
- Operating Temperature
- EOT: -40° to 75° C
- Overload Current Protection
- Present (Slow-Blown Fuse)
- Power Consumption
- 24 Watts for System
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber
- Switching Architecture
- Back-Plane: Non-Blocking Switching Fabric
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 Years
- Wavelength
- Refer to SFP module
