LNX-2004G-SFP-T | 20-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40° ~ 75°C | Antaira

20-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40° ~ 75°C

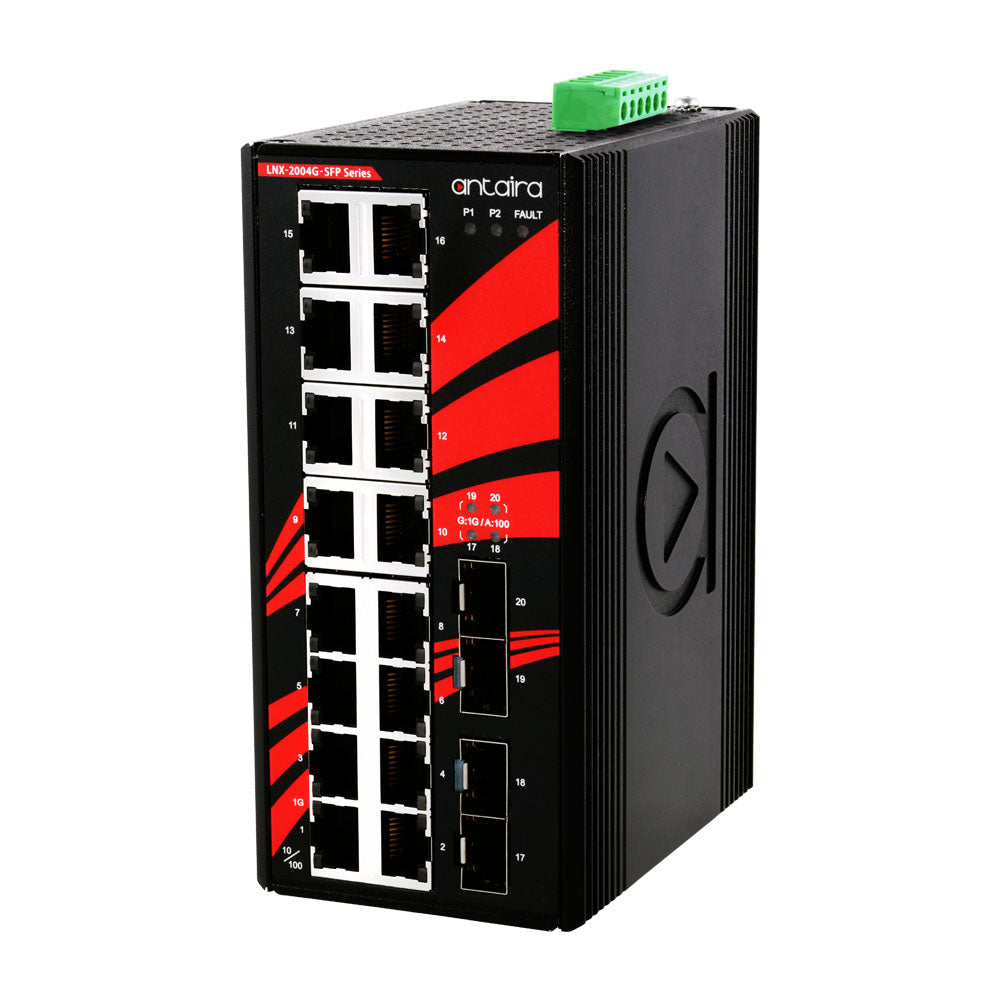

Antaira’s new LNX-2004G-SFP-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 16 gigabit Ethernet ports and 4 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication.This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40° to 75°C. The LNX-2004G-SFP-T is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access Control Systems, and Intelligent Transportation Systems.

Features

• Supports 16*10/100/1000Tx + 4*100/1000 SFP ports
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Detection
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range: -40° to 75°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG with DC jack 5.5x2.1mm
• LNX-2004G-SFP-T
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
