LNX-1802G-T | 18-Port Industrial Unmangaed Ethernet Switch | w/16*10/100TX + 2 *GigE Combo Ports; EOT: -40~80C | Antaira

18-Port Industrial Unmangaed Ethernet Switch, w/16*10/100TX + 2 *GigE Combo Ports; EOT: -40~80C

Brand: AntairaSKU: LNX-1802G-T

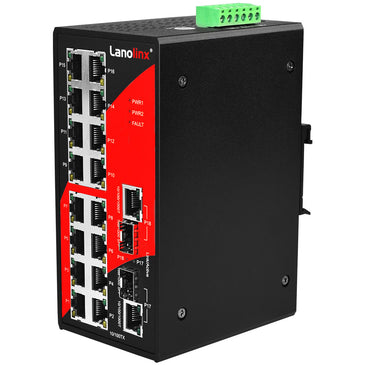

Antaira | LNX-1802G-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1802G-T

Overview Details for LNX-1802G-T

18-Port Industrial Unmangaed Ethernet Switch | w/16*10/100TX + 2 *GigE Combo Ports; EOT: -40~80C

The LNX-1802G-T is a 18-port (16-port 10/100TX + 2-port GigE Combo ports supporting 10/100/1000TX or SFP Fiber) Gigabit Industrial Ethernet Switch.(Extended Operating Temperature Model)

Features

  • Extended Operating Temperature: -40° ~ 80° C (-40° ~ 176° F)
  • 16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
  • 7.2 Gbps Back-Plane (Switching Fabric)
  • Store-and-Forward Switching Architecture
  • 1 Mbits Packet Buffer
  • 8K MAC Address Table
  • Wide-Range Redundant Power Design
  • Provides EFT Protection 3000 VDC for Power Line
  • Supports 6000 VDC Ethernet ESD Protection
  • IP30 Rugged Aluminum Case Design
  • DIN-Rail or Panel Mountable for Easy Installation

Included

  • LNX-1802G-T
  • Mounting Plates
  • RS-232 Console Cable (RJ-45)

Specifications

Back Plane
7.2Gbps
Buffer
1Mbit
Dimensions
IP-30, 72 x 152 x 105 mm (2.83 x 5.98 x 4.13 inches)
EMI
FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
ESD
6,000VDC
Ethernet Port
16 x 10/100TX RJ-45 + 2 x 100/1000T (Combo Ports)
Fault Output
1 Relay Output
Fiber Port
2 x Mini-GBIC SFP
Free Fall
IEC 60068-2-32
Gigabit Ethernet Port
Yes, 2 x Ethernet or Mini-GBIC SFP Ports
Humidity
5% ~ 95% non-condensing
IEEE
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX;IEEE 802.3ab 1000BaseT;IEEE 802.3z Gigabit Fiber;IEEE 802.3x Flow Control and Back-Pressure
Jumbo Frame
1534 bytes
LED
Port: Link/Activity, Full-Duplex/Collision, Speed;Unit: Power, Power1, Power2, Fault
Mac Address Table
8K MAC Address Table
Method
Store and Forward
Operating Temperature
-40° ~ 80° C (-40° ~ 176° F)
Overload Current
Yes
Power Consumption
9 Watts
Power Input
12 ~ 48 VDC
Power Redundancy
Yes
Protocols
CSMA/CD
Reverse Polarity
Yes
Safety
UL, cUL, CE-EN60950-1
Shock
IEC 60068-2-27
Storage Temperature
-40° ~ 85° C
Surge Protection
3,000VDC
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration
IEC 60068-2-6
Warranty
5 Years
