LNX-1802G-SFP | 18-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx + 2*100/1000 SFP Slots | Antaira

18-Port Industrial Gigabit Unmanaged Ethernet Switch, w/16*10/100/1000Tx + 2*100/1000 SFP Slots

Brand: AntairaSKU: LNX-1802G-SFP

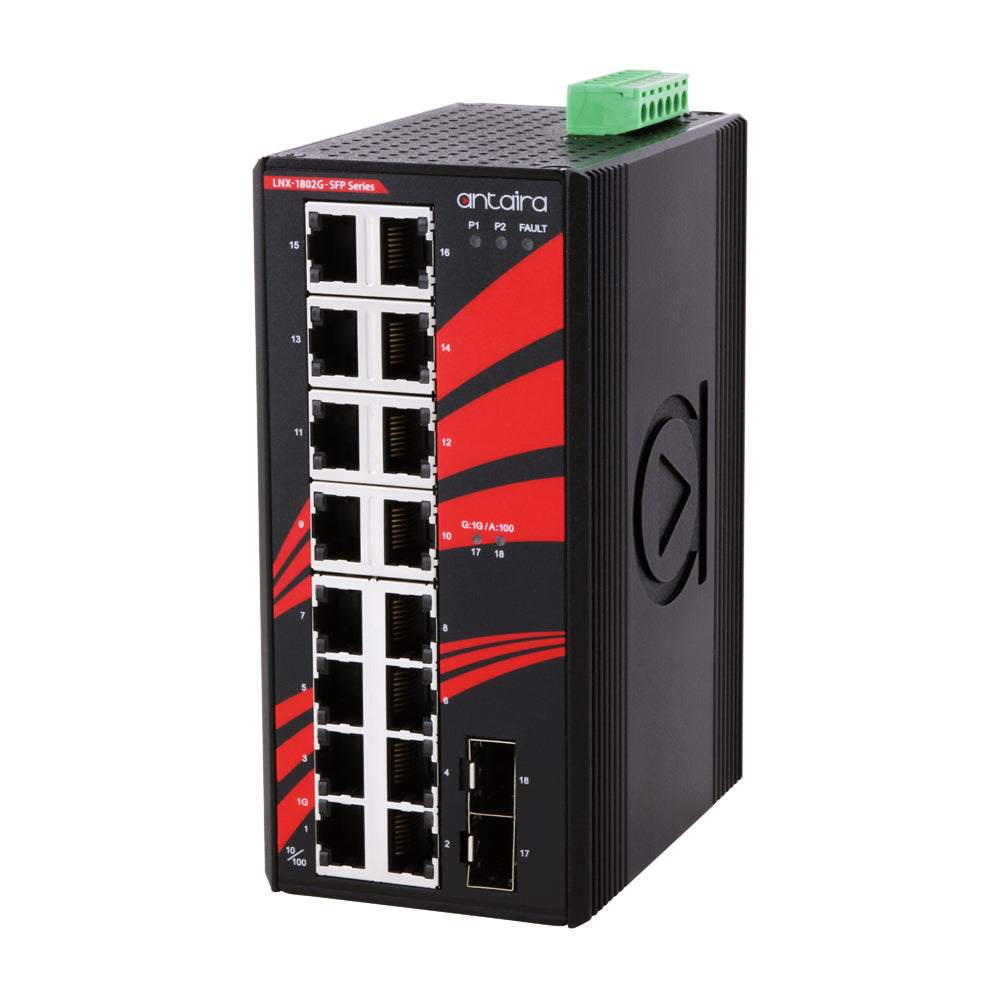

Antaira | LNX-1802G-SFP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1802G-SFP

Overview Details for LNX-1802G-SFP

18-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx + 2*100/1000 SFP Slots

Antaira’s new LNX-1802G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with 16 gigabit Ethernet ports and 2 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication. This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. The unit also supports a standard operating temperature from -10 to 70°C. The LNX-1802G-SFP is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access Control Systems, and Intelligent Transportation Systems.

Features

  • Supports 16*10/100/1000Tx + 2*100/1000 SFP ports
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 8K MAC Address Table
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • Redundant Power Input Design: 12~48VDC
  • Built-in 1 Relay Output for Power Failure Detection
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range: -10° to 70° C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG with DC jack 5.5x2.1mm
  • LNX-1802G-SFP
  • Quick Installation Guide
  • RJ45 dust cover set
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Certifications
FCC, CE
Dimensions
67 x 142 x 99 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS
CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),;IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
Ethernet Port
16*10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port
2*100/1000 SFP Slot
Fiber Port
2*100/1000 SFP Slot
Flow Control
IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green
RoHS Compliant
Housing
Aluminum and Metal, IP30 protection
Input Voltage
12 to 48VDC, Redundant Inputs
Jumbo Frame
9,216bytes
LED Indicators
Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting;SFP: Link / Act
MAC Table Size
8K
Memory Buffer
512Kbytes
Mounting
DIN-Rail, Wall Mounting (optional)
Network Cable
10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature
STD: -10°C to 65°C
Optical Cable
Multi-mode cable – 50/125um or 62.5/125um;Single-mode cable – 9/125um or 10/125um
Overload Current Protection
Present
Power Connection
1 removable 6-contact terminal block
Power Consumption
16.5Watts for System
Processing Type
Store and Forward
Protocols
CSMA/CD
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber
Storage Temperature
-40°C to 85°C
Switching Architecture
Back-Plane: Non-Blocking Switching Fabric
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Warranty
5 Years
Wavelength
Depends on SFP modules
Weight
Unit: 2.65 lbs.;Shipping: 3.09 lbs.
