LNX-1802G | 18-Port Industrial Unmanaged Ethernet Switch | w/16*10/100TX + 2 *GigE Combo Ports | Antaira
18-Port Industrial Unmanaged Ethernet Switch, w/16*10/100TX + 2 *GigE Combo Ports

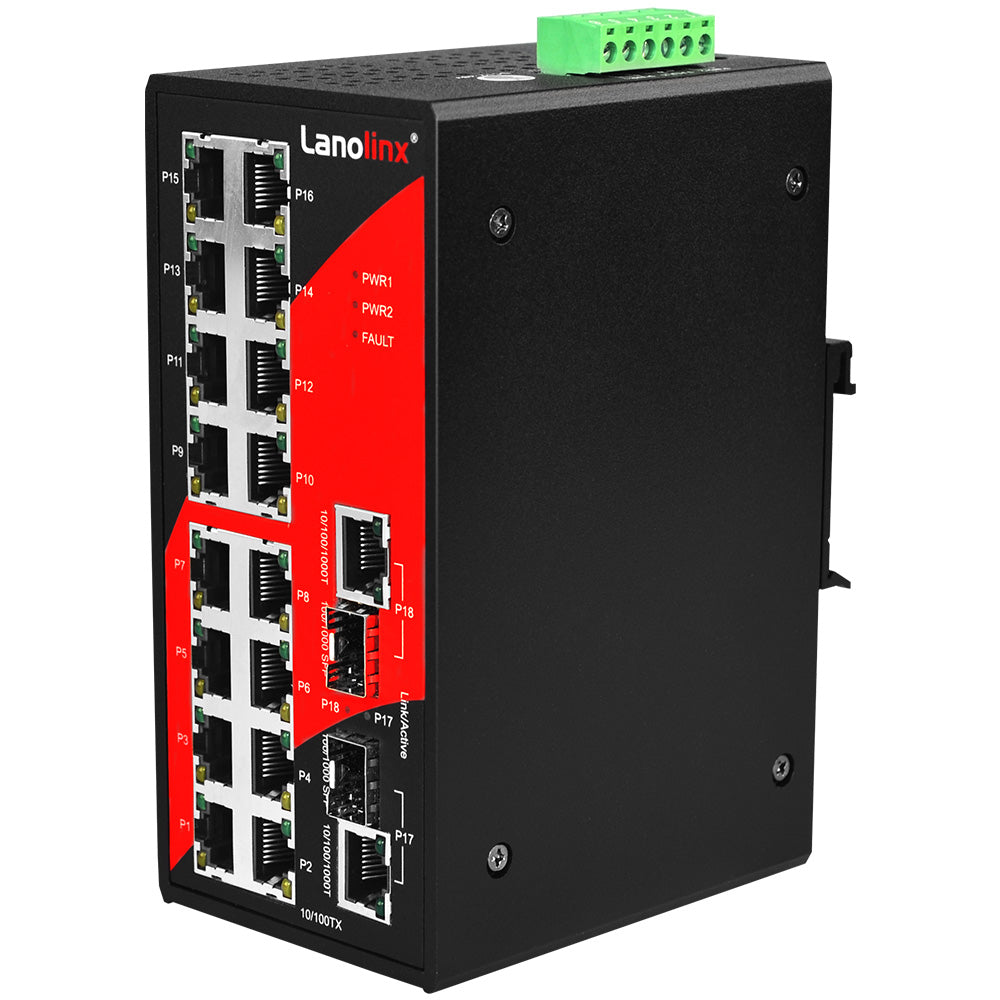

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1802G
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-1802G Documents
Overview
Details for LNX-1802G
18-Port Industrial Unmanaged Ethernet Switch | w/16*10/100TX + 2 *GigE Combo Ports
The LNX-1802G is a 18-port (16-port 10/100TX + 2-port GigE Combo ports supporting 10/100/1000TX or SFP Fiber) Gigabit Industrial Ethernet Switch.Features
- 16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
- 7.2 Gbps Back-Plane (Switching Fabric)
- Store-and-Forward Switching Architecture
- 1 Mbits Packet Buffer
- 8K MAC Address Table
- Wide-Range Redundant Power Design
- Provides EFT Protection 3000 VDC for Power Line
- Supports 6000 VDC Ethernet ESD Protection
- IP30 Rugged Aluminum Case Design
- DIN-Rail or Panel Mountable for Easy Installation
Included
- LNX-1802G
- Mounting Plates
- RS-232 Console Cable (RJ-45)
Specifications
- Back Plane
- 7.2Gbps
- Buffer
- 1Mbit
- Dimensions
- IP-30, 72 x 152 x 105 mm (2.83 x 5.98 x 4.13 inches)
- EMI
- FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
- ESD
- 6,000VDC
- Ethernet Port
- 16 x 10/100TX RJ-45 + 2 x 100/1000T (Combo Ports)
- Fault Output
- 1 Relay Output
- Fiber Port
- 2 x Mini-GBIC SFP
- Free Fall
- IEC 60068-2-32
- Gigabit Ethernet Port
- Yes, 2 x Ethernet or Mini-GBIC SFP Ports
- Humidity
- 5% ~ 95% non-condensing
- IEEE
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX;IEEE 802.3ab 1000BaseT;IEEE 802.3z Gigabit Fiber;IEEE 802.3x Flow Control and Back-Pressure
- Jumbo Frame
- 1534 bytes
- LED
- Port: Link/Activity, Full-Duplex/Collision, Speed;Unit: Power, Power1, Power2, Fault
- Mac Address Table
- 8K MAC Address Table
- Method
- Store and Forward
- Operating Temperature
- -10° ~ 70° C (14° ~ 158° F)
- Overload Current
- Yes
- Power Consumption
- 9 Watts
- Power Input
- 12 ~ 48 VDC
- Power Redundancy
- Yes
- Protocols
- CSMA/CD
- Reverse Polarity
- Yes
- Safety
- UL, cUL, CE-EN60950-1
- Shock
- IEC 60068-2-27
- Storage Temperature
- -40° ~ 85° C
- Surge Protection
- 3,000VDC
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
