LNX-1604G-SFP-T | 16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/12*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 to 75C | Antaira
16-Port Industrial Gigabit Unmanaged Ethernet Switch, w/12*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 to 75C

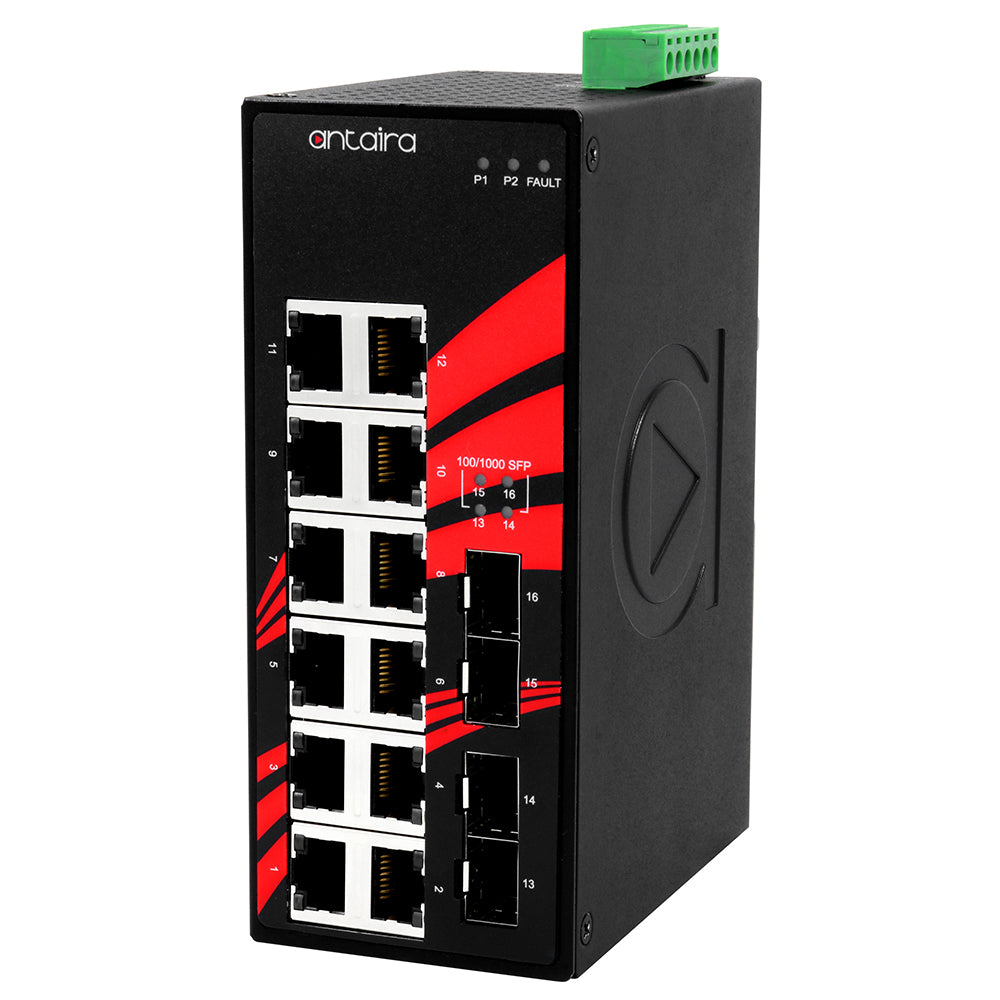

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1604G-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-1604G-SFP-T Documents
Overview
Details for LNX-1604G-SFP-T
16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/12*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 to 75C
Antaira Technologies’ LNX-1604G-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with twelve gigabit Ethernet ports and four dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems. This product series has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. There are two wide operating temperature models to support either a -10 to 70 ̊C or - 40 to 75 ̊C environment.Features
- Supports 12*10/100/1000Tx + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Jumbo Frame Support: 12.2K
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNX-1604G-SFP-T
- 1 - Quick Installation Guide
- 2 - Wall mounting brackets and screws
Specifications
- Certifications
- FCC, CE
- Compliance
- NEMA TS1/TS2 (ITS), EN50121-4 (Railway)
- Dimensions
- 59 x 99 x 142 mm (W*D*H)
- EMI
- FCC Class A
- EMS
- EN61000-4-2,3,4,5,6,8, EN61000-6-2,4
- Ethernet Port
- 12*10/100/1000BaseT(X), Full/Half duplex mode, and auto MDI/MDI‐X connection
- Fiber Port
- 4*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x back pressure flow control
- Green
- RoHS Compliant
- Housing / Mounting
- Metal, IP30 protection / DIN-Rail and wall mounting Provided
- Input Voltage & Connection
- 12~48VDC, Redundant Input & 1 removable 6-contact terminal block
- Jumbo Frame
- 12.2Kbytes
- MAC Table Size
- 8K
- Memory Buffer
- 4 Mbits
- Operating Temperature
- EOT: -40° to 75° C
- Overload Current Protection
- Present (Slow Blown Fuse)
- Power Consumption
- 16 Watts
- Reverse Polarity Protection
- Yes
- Shock/Vibration/Free Fall
- IEC60068-2-27,6,32
- Standards
- IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back‐Plane: Non‐Blocking Switching Fabric
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 years
