LNX-1600G-T | 16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx; EOT: -40°C ~ 75°C | Antaira

16-Port Industrial Gigabit Unmanaged Ethernet Switch, w/16*10/100/1000Tx; EOT: -40°C ~ 75°C

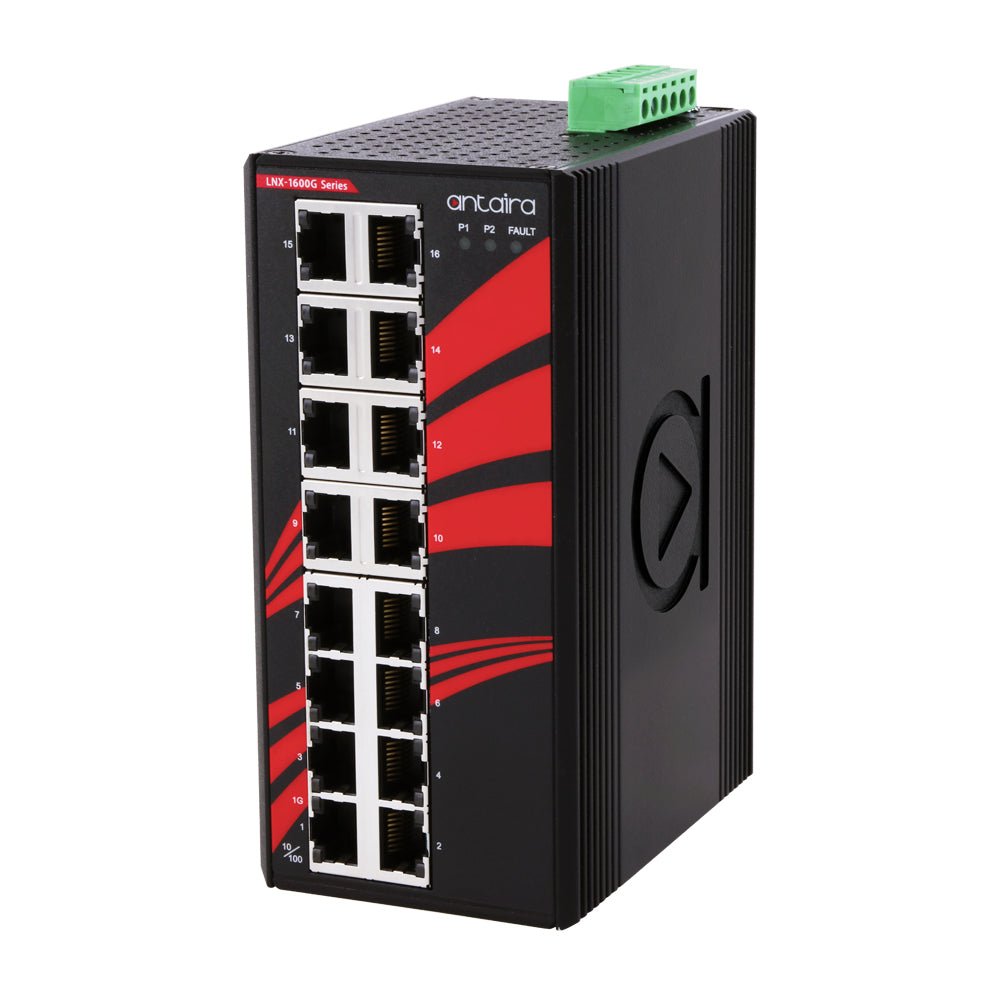

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNX-1600G-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LNX-1600G-T Documents

Hardware Manual Product Datasheet More Info

Overview

Details for LNX-1600G-T

16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx; EOT: -40°C ~ 75°C

Antaira Technologies’ LNX-1600G industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 16*10/100/1000Tx, making it ideal for applications that demand a high bandwidth connectivity solution.This series provides a high EFT and ESD protection that has a dual power input with a reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. There is a wide operating temperature model that supports -40 to 75°C. The LNX-1600G series is an ideal solution for harsh outdoor weather environments and industrial applications.

Features

Supports 16-Port 10/100/1000Tx RJ45 Fast Ethernet
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 3,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range - EOT: -40° to 75°C
5-Year Warranty

Included

DC Cable - 18 AWG with DC jack 5.5x2.1mm
LNX-1600G-T
Quick Installation Guide
RJ45 dust cover set
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE, UL61010-1, UL61010-2-201
Dimensions: 67 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS: CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),;IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
Ethernet Port: 16*10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green: RoHS Compliant
Housing: Aluminum and Metal, IP30 protection
Input Voltage: 12 to 48VDC, Redundant Inputs
Jumbo Frame: 9,216bytes
LED Indicators: Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting
MAC Table Size: 8K
Memory Buffer: 512Kbytes
Mounting: DIN-Rail, Wall Mounting (optional)
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature: EOT: -40°C to 75°C
Overload Current Protection: Present
Power Connection: 1 removable 6-contact terminal block
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT
Storage Temperature: EOT: -40°C to 85°C
Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Warranty: 5 Years
Weight: Unit: 2.65 lbs.;Shipping: 3.09 lbs.
