LNX-1204G-SFP-T | 12-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 ~ 75C | Antaira
12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 ~ 75C

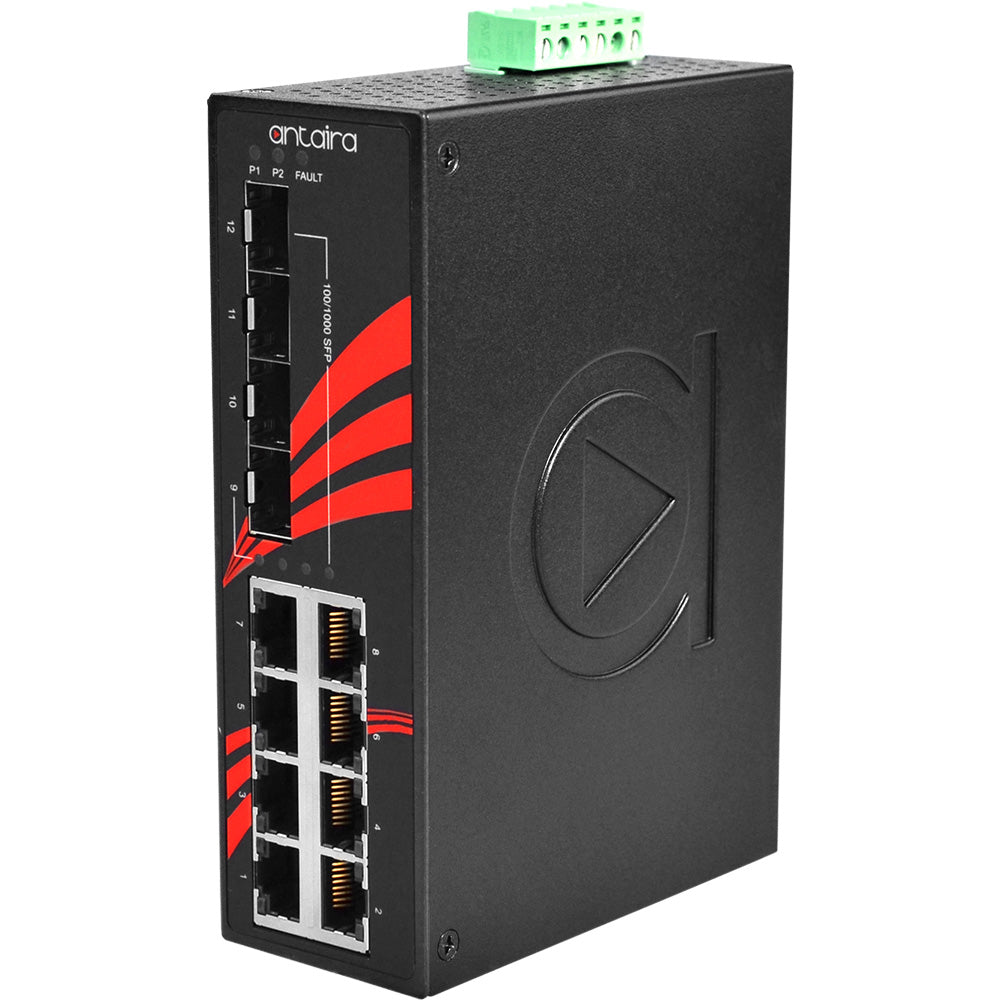

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1204G-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-1204G-SFP-T Documents
Overview
Details for LNX-1204G-SFP-T
12-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP Slots; EOT: -40 ~ 75C
Antaira’s new LNX-1204G-SFP-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 8 gigabit Ethernet ports and 4 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication.This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40 to 75°C. The LNX-1204G-SFP-T is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access Control Systems, and Intelligent Transportation Systems.Features
- Supports 8*10/100/1000Tx + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 24Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -40° to 75° C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNX-1204G-SFP-T
- 2 - Wall mounting brackets and screws
Specifications
- Certifications
- FCC, RoHS, CE, UL 61010-1, UL 61010-2-201
- Connection
- 1 Removable 6-Contact Terminal Block
- Dimensions
- 46 x 99 x 142 mm
- EMS
- EN610004-2,3,4,5,6,8;EN61000-4-2,4
- Ethernet Port
- 8*RJ45 Ports w/ 10/100/1000Tx
- Fiber Port
- 2*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x Back Pressure Flow Control
- Housing
- Metal, IP30 Protection
- Input Voltage
- 12~48VDC, Redundant Input
- Jumbo Frame
- 9.6Kbytes
- MAC Table Size
- 8K
- Memory Buffer
- 7,926pps (default)
- Mounting
- DIN-Rail and Wall Mounting
- Operating Temperature
- STD: -10°C to 70°C;EOT: -40°C to 75°C
- Overload Current Protection
- Present
- Power Consumption
- 15 Watts
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Yes
- Shock/Vibration/Free Fall
- IEC60068-2-27/6/32
- Standards
- IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 24Gbps
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 Years
