LNX-1204G-10G-SFP | 12-Port Industrial Gigabit Unmanaged Ethernet Switch | with 8*10/100/1000Tx | 2*1G SFP Slots | and 2*10G SFP+ Slots | Antaira

12-Port Industrial Gigabit Unmanaged Ethernet Switch, with 8*10/100/1000Tx, 2*1G SFP Slots, and 2*10G SFP+ Slots

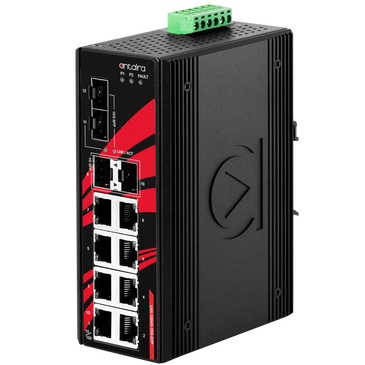

Antaira | LNX-1204G-10G-SFP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1204G-10G-SFP

Documents and manuals

Antaira LNX-1204G-10G-SFP Documents

Overview

Details for LNX-1204G-10G-SFP

12-Port Industrial Gigabit Unmanaged Ethernet Switch | with 8*10/100/1000Tx | 2*1G SFP Slots | and 2*10G SFP+ Slots

Antaira Technologies’ LNX-1204G-10G-SFP are industrial gigabit unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports, 2*1G SFP slots, and 2*10G SFP+ slots which provide options for long-distance fiber connections, making it ideal for applications that demand high bandwidth and long-distance communication.The LNX-1204G-10G-SFP are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to support an operating temperature range from -40° to 65°C and are perfect industrial networking products to support any applications that require high bandwidth or high-density connections, such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

Features

  • Supports 8*10/100/1000Tx, 2*1G SFP Slots, and 2*10G SFP+ Slots
  • Store-and-Forward Switching Architecture
  • 60Gbps Back-Plane (Switching Fabric)
  • 16K MAC Address Table
  • 10Kbytes Jumbo Frame Support
  • Redundant Power Input Design: 12~48VDC
  • Bult-in 1 Relay Output for Power Failure Warning
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support Included
  • Operating Temperature Range: -40°C~65°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • LNX-1204G-10G-SFP
  • Quick Installation Guide
  • RJ45 dust cover set
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE, UL 61010-1, 61010-2-201
Dimensions
54 x 142 x 99 mm
EMI
FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port
8*10/100/1000Tx;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
12~48VDC, Redundant Input
Jumbo Frame
9.6Kbytes
LED Indicators
System: Power 1, Power 2, Fault;Ethernet Ports: On-Link/Flash-data transmitting;SFP: On-Link/Flash-data transmitting
MAC Table Size
16K
Mounting
DIN-Rail mounting, Wall mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
Operating Temperature
-40°C to 65°C
Overload Current Protection
Present
Packet Buffer
8Mbits
Power Connection
1 removable 6-contact terminal block
Power Reverse Polarity Protection
Present
Processing Type
Store and Forward
Protocols
CSMA/CD
Relay Contact
24VDC, 1A resistive
SFP Port
2*1G SFP slots;2*10G SFP+ slots
Shock
IEC60068-2-27
Standards
IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3z 1000X Gigabit Fiber;IEEE 802.3ae 10 Gigabit Ethernet
Storage Temperature
-40°C ~ 85°C
Switching Architecture
Back-Plane (Switching Fabric): 60.0Gbps
System Power Consumption
11.3W
Transfer Rate
14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet;14,880,000pps for 10 Gigabit Ethernet Port
Vibration
IEC60068-2-6
Warranty
5 Years
Weight
Unit: 2.35 lbs.;Shipping: 2.97 lbs.
