LNX-1202G-SFP | 12-Port Industrial Gigabit Unmanaged Ethernet Switch | w/10*10/100/1000Tx + 2*100/1000 SFP Slots | Antaira

12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/10*10/100/1000Tx + 2*100/1000 SFP Slots

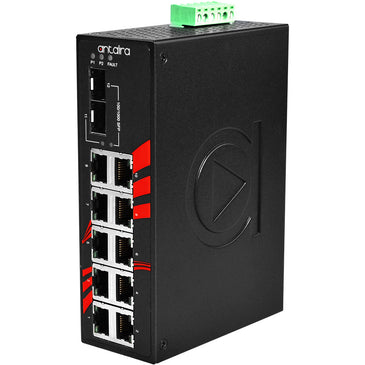

Antaira | LNX-1202G-SFP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1202G-SFP

Documents and manuals

Antaira LNX-1202G-SFP Documents

Overview

Details for LNX-1202G-SFP

12-Port Industrial Gigabit Unmanaged Ethernet Switch | w/10*10/100/1000Tx + 2*100/1000 SFP Slots

Antaira’s new LNX-1202G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with 10 gigabit Ethernet ports and 2 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication. This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. The unit also supports a standard operating temperature from -10 to 70°C. The LNX-1202G-SFP is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access Control Systems, and Intelligent Transportation Systems.

Features

  • Supports 10*10/100/1000Tx + 2*100/1000 SFP ports
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 24Gbps Back-Plane (Switching Fabric)
  • 8K MAC Address Table
  • 9.6Kbytes Jumbo Frame Support
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • UL Class I, Division 2 Certified
  • Redundant Power Input Design: 12~48VDC
  • Built-in 1 Relay Output for Power Failure Detection
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range: -10° to 70° C
  • 5-Year Warranty

Included

  • 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
  • 1 - LNX-1202G-SFP
  • 2 - Wall mounting brackets and screws

Specifications

Certifications
FCC, CE, RoHS, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Connection
1 Removable 6-Contact Terminal Block
Dimensions
46 x 99 x 142 mm
EMS
EN61000-4-2,3,4,5,6,8;EN61000-6-2,4
Ethernet Port
10*RJ45 Ports w/ 10/100/1000Tx
Fiber Port
2*100/1000 SFP Slot
Flow Control
IEEE 802.3x Back Pressure Flow Control
Housing
Metal, IP30 Protection
Input Voltage
12~48VDC, Redundant Input
Jumbo Frame
9.6Kbytes
MAC Table Size
8K
Memory Buffer
7,926pps
Mounting
DIN-Rail and Wall Mounting
Operating Temperature
STD: -10 to 70C;EOT: -40 to 75C
Overload Current Protection
Present
Power Consumption
10 Watts
Processing Type
Store and Forward
Reverse Polarity Protection
Yes
Shock/Vibration/Free Fall
IEC60068-2-27,6,32
Standards
IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber
Storage Temperature
-40C to 85C
Switching Architecture
Back-Plane (Switching Fabric): 24Gbps
Technology Protocol
CSMA/CD
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Warranty
5 Years
