LNX-1002G-SFP | 10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx + 2*100/1000 SFP Slots | Antaira
10-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx + 2*100/1000 SFP Slots

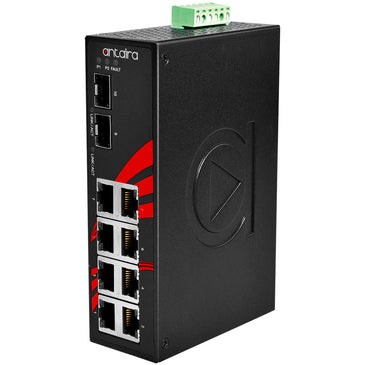

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1002G-SFP
Overview Details for LNX-1002G-SFP
10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx + 2*100/1000 SFP Slots
Antaira’s LNX-1002G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports and 2 dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.The LNX-1002G-SFP has a standard operating temperature range of -10 to 70°C, and is a perfectly designed product to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.Features
- Supports 8-Port 10/100/1000Tx + 2-Port 100/1000 SFP
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 20Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Included
- 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
- 1 x LNX-1002G-SFP
- 2 x Wall Mounting Bracket and Screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 46mm (W) x 99mm (D) x 142mm (H)
- EMI
- FCC Class A
- EMS
- EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
- Ethernet Port
- 8*RJ45 Ports with 10/100/1000Tx auto MDI/MDI-X connection & 2*100/1000 SFP Slot
- Free fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 Protection, Din-Rail Mounting (Wall Mounting Bracket also included)
- Input Voltage
- 12~48VDC, Redundant Input (w/ 1 removable 6-contact terminal block)
- Jumbo Frame
- 9.6Kbytes
- MAC Table Size
- 8K
- Operating Temperature
- -10° to 70° C (14° to 158° F)
- Overload Current Protection
- Present
- Power Consumption
- 10 Watts
- Reverse Polarity Protection
- Yes
- Standards
- IEEE 802.3, 3u, 3ab,3az
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 20Gbps
- Transfer Rate
- Up to 1.0Gbps for Gigabit Ethernet port
- Warranty
- 5 Years
- Weight
- Unit Weight: 2.5-lbs.;Shipping Weight: 3.0 lbs
