10-Port Industrial Gigabit Unmanaged Ethernet Switch, with 8*10/100/1000Tx and 2*10G SFP+ Slots

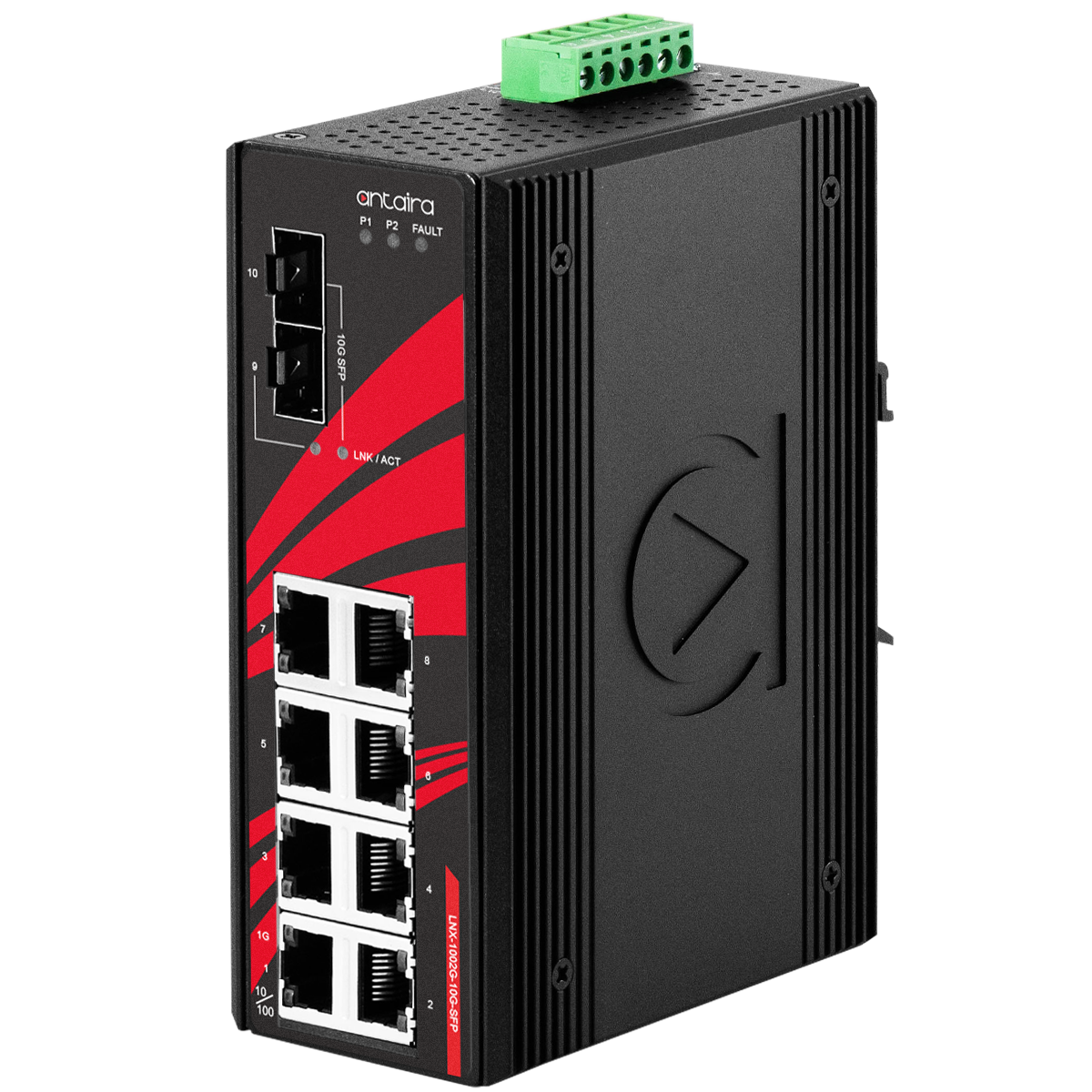

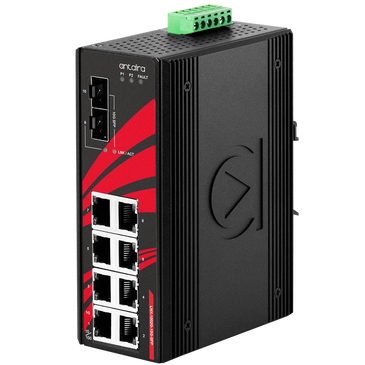

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNX-1002G-10G-SFP

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LNX-1002G-10G-SFP Documents

Hardware Manual Product Datasheet More Info

Overview

Details for LNX-1002G-10G-SFP

10-Port Industrial Gigabit Unmanaged Ethernet Switch | with 8*10/100/1000Tx and 2*10G SFP+ Slots

Antaira Technologies’ LNX-1002G-10G-SFP are industrial gigabit unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports and 2*10G SFP+ slots which provide options for long-distance fiber connections, making it ideal for applications that demand high bandwidth and long-distance communication.The LNX-1002G-10G-SFP are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to support an operating temperature range from -40° to 65°C and are perfect industrial networking products to support any applications that require high bandwidth or high-density connections, such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

Features

Supports 8*10/100/1000Tx and 2*10G SFP+ Slots
Store-and-Forward Switching Architecture
56Gbps Back-Plane (Switching Fabric)
16K MAC Address Table
9.6Kbytes Jumbo Frame Support
Redundant Power Input Design: 12~48VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support Included
Operating Temperature Range: -40°C~65°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
LNX-1002G-10G-SFP
Quick Installation Guide
RJ45 dust cover set
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Dimensions: 54 x 142 x 99 mm
EMI: FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 8*10/100/1000Tx;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
Input Voltage: 12~48VDC, Redundant Input
Jumbo Frame: 9.6Kbytes
LED Indicators: System: Power 1, Power 2, Fault;Ethernet Ports: On-Link/Flash-data transmitting;PoE: On-connected to PD devices;SFP: Link/Active
MAC Table Size: 16K
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
Operating Temperature: -40°C to 65°C
Overload Current Protection: Present
Packet Buffer: 8Mbits
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Power Connection: 1 removable 6-contact terminal block
Power Reverse Polarity Protection: Present
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
SFP Port: 2*10G SFP+ slots
Shock: IEC60068-2-27
Standards: IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3ae 10 Gigabit Ethernet
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Back-Plane (Switching Fabric): 56.0Gbps
System Power Consumption: 10.2W
Transfer Rate: 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet;14,880,000pps for 10 Gigabit Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 2.33 lbs.;Shipping: 2.95 lbs.
