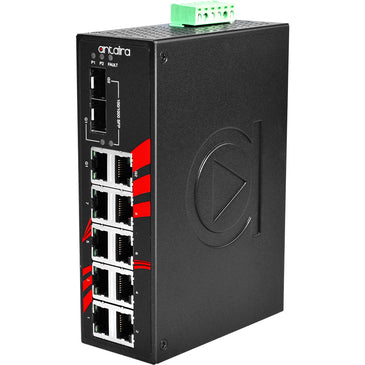

LNX-1002C-SFP-T | 10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot); EOT: -40 ~ 75C | Antaira

10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot); EOT: -40 ~ 75C

Antaira Technologies’ LNX-1002C-SFP-T industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100Tx and 2*GigE combo ports (2*10/100/1000Tx RJ45 and 2*100/100 SFP slots for fiber). This industrial switch series is ideal for applications that demand high bandwidth and long distance communication. This industrial switch series provides a high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature by having a dual power input design with reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNX-1002C-SFP industrial switch series includes two models: one with an operating temperature range of -10 to 70°C and the other with an extended operating temperature range of -40 to 75°C. This industrial Ethernet switch series has been designed to fulfill special needs for industrial automation and harsh outdoor environment applications.

Features

• Supports 8-Port 10/100Tx, + 2 Gigabit Combo Ports (2*10/100/100 RJ45, and 2*100/1000 SFP Slots)
• Supports Auto MDI/MDI-X Function
• Non-Blocking Switching Fabric
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range EOT: -40° to 75°C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
• 1 - LNX-1002C-SFP-T
• 2 - Wall mounting brackets and screws
