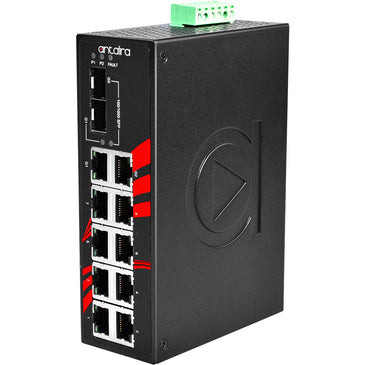

LNX-1002C-SFP | 10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot) | Antaira
10-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45, and 2*100/1000 SFP Slot)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1002C-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-1002C-SFP Documents
Overview
Details for LNX-1002C-SFP
10-Port Industrial Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot)
Antaira Technologies’ LNX-1002C-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100Tx and 2*GigE combo ports (2*10/100/1000Tx RJ45 and 2*100/100 SFP slots for fiber). This industrial switch series is ideal for applications that demand high bandwidth and long distance communication. This industrial switch series provides a high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. The industrial Ethernet switch supports the power redundancy feature by having a dual power input design with reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNX-1002C-SFP industrial switch series includes two models: one with an operating temperature range of -10 to 70°C and the other with an extended operating temperature range of -40 to 75°C. This industrial switch series has been designed to fulfill special needs for industrial automation and harsh outdoor environment applications.Features
- Supports 8-Port 10/100Tx, + 2 Gigabit Combo Ports (2*10/100/100 RJ45, and 2*100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Non-Blocking Switching Fabric
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range STD: -10° to 70°C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNX-1002C-SFP
- 2 - Wall mounting brackets and screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 46 x 99 x 142 mm (W*D*H)
- EMI
- FCC Class A
- EMS
- EN61000-4-2,3,4,5,6,8, EN61000-6-2,4
- Ethernet Port
- 8*RJ45 Ports w/10/100Tx
- Free fall / Shock / Vibration
- IEC60068-2-32; IEC60068-2-27; IEC60068-2-6
- Gigabit Combo Port
- 2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slot For Fiber
- Green
- RoHS Compliant
- Housing / Mounting
- IP30 rated Metal Housing, DIN-Rail or Wall Mounting
- Humidity
- 5 to 95%, (non-condensing)
- Operating Temperature
- STD: -10° to 70° C
- Overload Current Protection
- Present
- Power Consumption
- 10W
- Power Input
- 12~48VDC, Redundant Input
- Power Reverse Polarity Protection
- Yes
- Protection
- EFT: 2KV; ESD: 6KV
- Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Non-Blocking Switching Fabric
- Warranty
- 5 Years
- Weight
- Unit 1.5lbs.; Shipping Weight 2.0 lbs.
