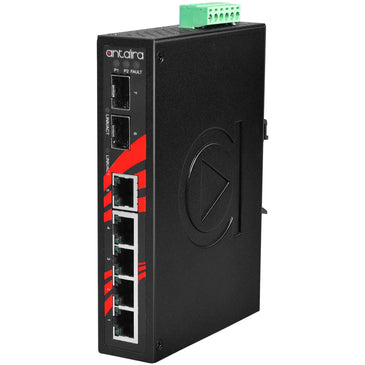

7-Port Industrial Gigabit Unmanaged Ethernet Switch | with 5*10/100/1000Tx and 2*100/1000 SFP Slots; EOT: -40°C to 75°C

Antaira's LNX-0702G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0702G-SFP-T provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.The LNX-0702G-SFP-T has an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.

Features

• 5*10/100/1000Tx Fast Ethernet Ports & 2*100/1000 SFP Slot
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 14Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• 9.6Kbytes Jumbo Frame Support
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Detection
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - EOT: -40° to 75° C
• 5-Year Warranty

Included

• 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
• 1 x LNX-0702G-SFP-T
• 2 x Wall Mounting Bracket and Screws
