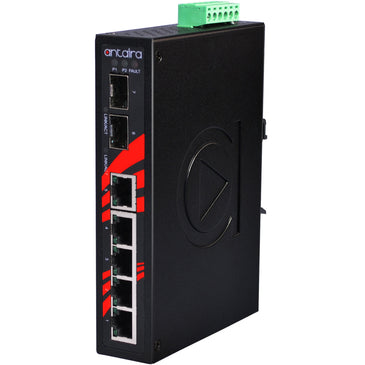

LNX-0702C-SFP | 7-Port Industrial Unmanaged Ethernet Switch | with 5*10/100Tx and 2*100/1000 SFP Slots | Antaira

7-Port Industrial Unmanaged Ethernet Switch | with 5*10/100Tx and 2*100/1000 SFP Slots

Antaira Technologies LNX-0702C-SFP series industrial gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual rate 100/1000Fx SFP slots. This product series supports a wide power input from 12 to 48VDC, and provides high EFT and ESD protection to protect against unregulated voltage. It also provides wide operating temperature models for either standard: – 10 to 70C or extended: - 40 to 75C. The LNP-0702C-SFP series is an ideal solution for harsh environments and industrial applications.

Features

• Supports 5-Port 10/100Tx and 2-Port 100/1000 SFP Slots
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 10Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - STD: -10° to 70° C
• 5-Year Warranty

Included

• DC cable –18 AWG to DC Jack 5.5x2.1mm
• Din Rail & Wall Mounting Kits
• LNX-0702C-SFP
• Terminal Block
