LNX-0602-ST-S3 | 6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (ST) Single-mode 30Km | Antaira

6-Port Industrial Unmanaged Ethernet Switch, w/2*100Fx (ST) Single-mode 30Km

Brand: AntairaSKU: LNX-0602-ST-S3

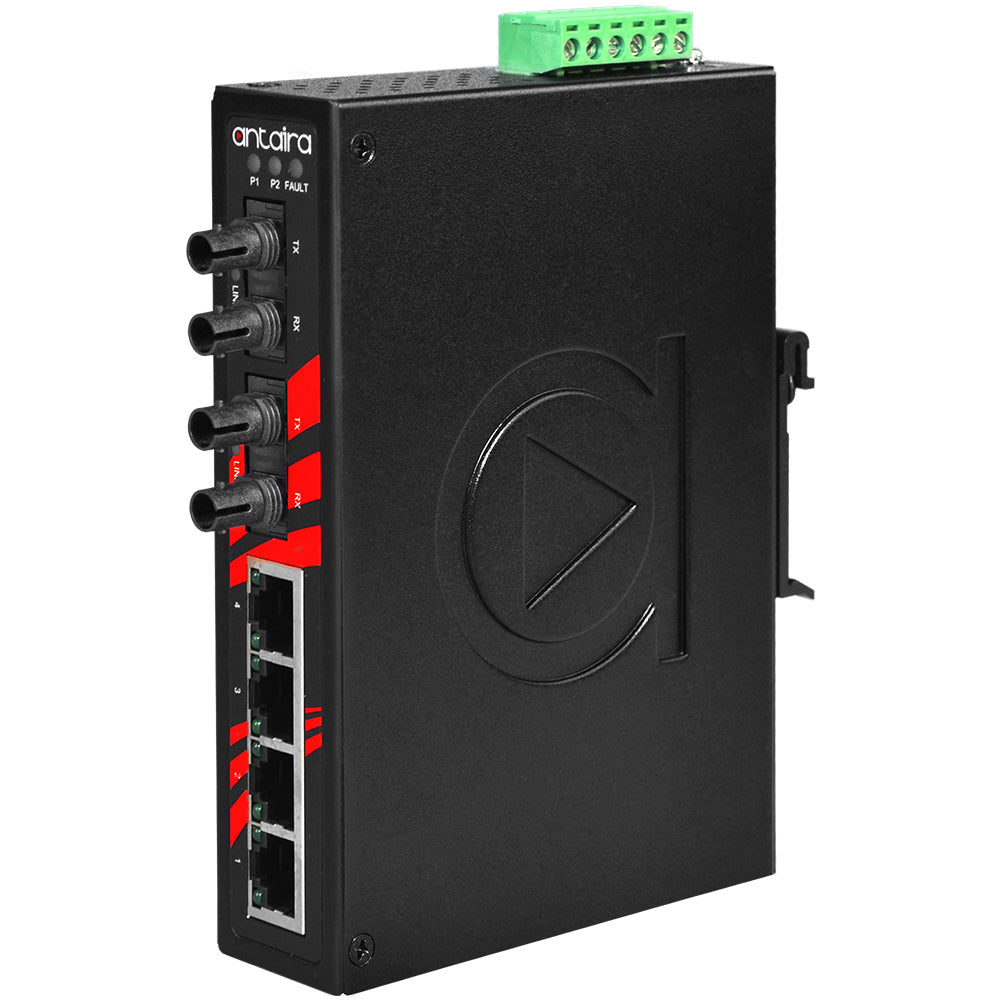

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNX-0602-ST-S3

Jump to: Overview & Specifications Reviews

Overview Details for LNX-0602-ST-S3

6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (ST) Single-mode 30Km

Antaira’s LNX-0602 series switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.The LNX-0602 series switches support 12~48VDC power inputs. This series of switches offers an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

Network broadcast storm protection
4-Port 10/100Tx Fast Ethernet
2-Port 100Fx ST type connector (Single mode)
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
2K MAC Address Table
Surge Protection: 2,000 VDC support
ESD Protection: 6,000 VDC support
UL Class I, Division 2 Certified
Redundant Power Input Design – 12~48VDC
Built-in 1 relay output for Port Break Alarm
IP30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount support
Operating Temperature range: -10° to 70° C
5-Year Warranty

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL/cUL 508, Class 1 Div 2
Connection: 1 removable 4-contact terminal block
Dimensions: 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
EMI: FCC Class A
EMS: EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
Fiber Port: 2*100Fx SC/ST type connector;Multi-mode (2Km) - 50/125um ~ 62.5/125um,;Single-mode (30Km) - 9/125um ~ 10/125um
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green: RoHS Compliant
Housing: Metal, IP30 protection
Input Voltage: 12~48VDC, Redundant Input
MAC Table Size: 2K
Mounting: DIN-Rail mounting, wall mounting (optional)
Operating Temperature: -10° to 70° C (14° to 158° F)
Overload Current Protection: Slow-Blown Fuse
Power Consumption: 7.5 Watts
Processing Type: Store and Forward
Protocols: CSMA/CD
Reverse Polarity Protection: Yes
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;4*10/100Tx
Shock: IEC60068-2-27
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Switching Architecture: Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Wavelength: 1310nm (Multi-mode and Single-mode)
Weight: Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
