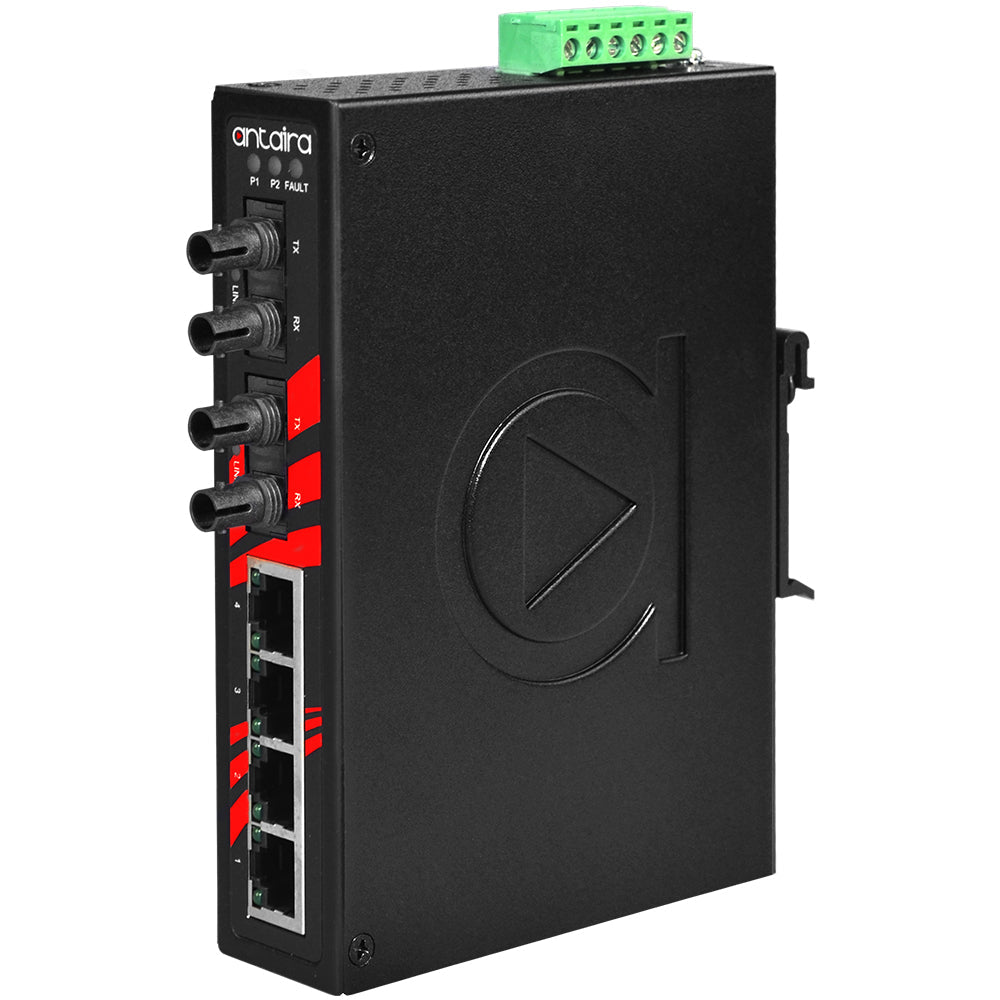

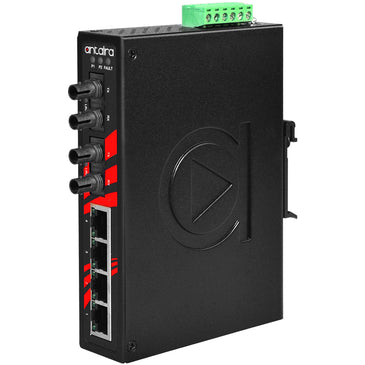

LNX-0602-ST-M-T | 6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (ST) Mulit-mode 2Km | EOT (-40°C - 75°C) | Antaira

6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (ST) Mulit-mode 2Km | EOT (-40°C - 75°C)

Antaira's LNX-0602 series switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.The LNX-0602 series switches support 12~48VDC power inputs. This series of switches offers an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

• Network broadcast storm protection
• 4-Port 10/100Tx Fast Ethernet
• 2-Port 100Fx ST type connector (Multi-mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• UL Class I, Division 2 Certified
• Redundant Power Input Design – 12~48VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range: -40° to 75° C
• 5-Year Warranty

Included

• LNX-0602-ST-M-T
• Mounting Brackets
