LNX-0601G-SFP-T | 6-Port Industrial Unmanaged Ethernet Switch | w/5*10/100/1000Tx + 1*100/1000 SFP slot; EOT: -40~75C | Antaira

6-Port Industrial Unmanaged Ethernet Switch | w/5*10/100/1000Tx + 1*100/1000 SFP slot; EOT: -40~75C

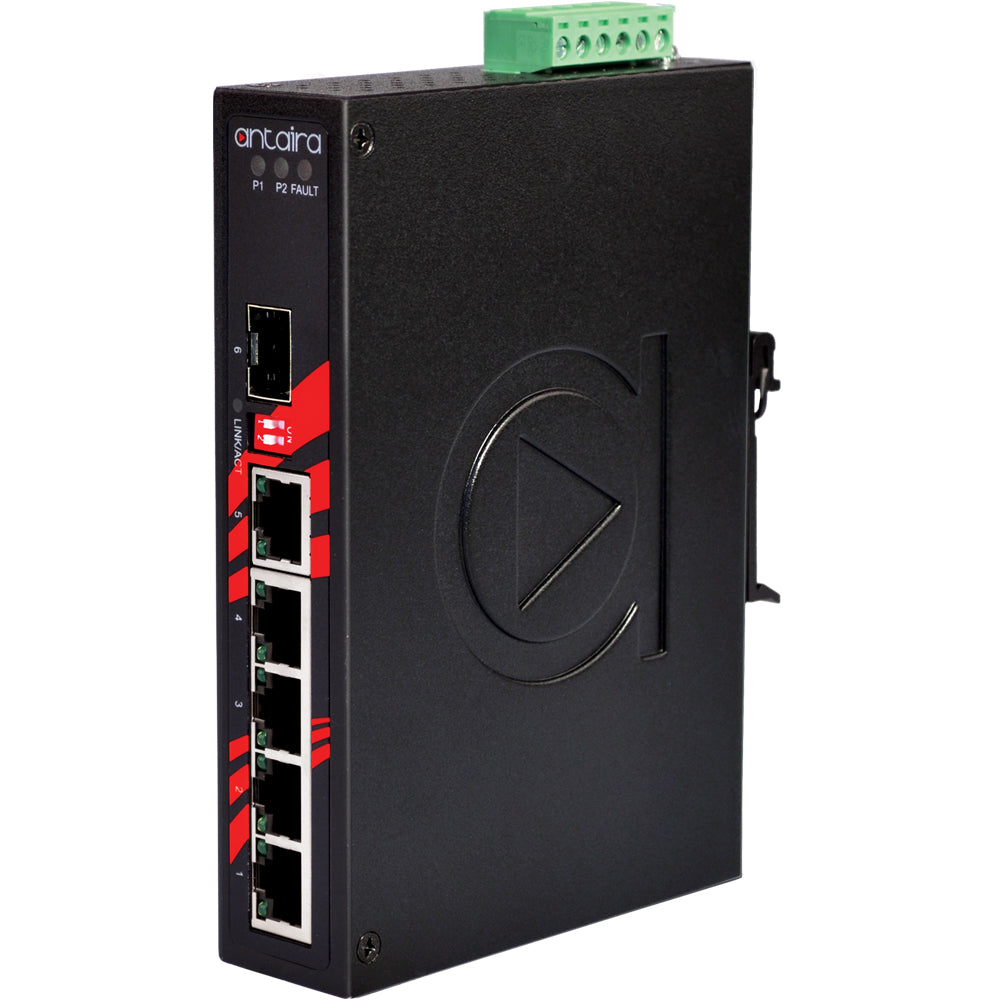

Antaira’s LNX-0601G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication.The LNX-0601G-SFP-T series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur. Also, the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold. The LNX-0601G-SFP-T has an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill any special needs of industrial automation, outdoor applications and harsh weather enviornments.

Features

• 5-Ports 10/100/1000 Tx Fast Ethernet &1-Port SFP
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• 10Kbytes Jumbo Frame Support
• Surge (EFT) Protection Support
• Ethernet ESD Protection Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 12~48 VDC
• Built-in 1 Relay Output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - EOT: -40° to 75 °C
• 5-Year Warranty

Included

• 1 * DC cable –18 AWG & DC Jack 5.5x2.1mm
• 1 * LNX-0601G-SFP-T
• 2 * Wall Mounting Bracket and Screws
