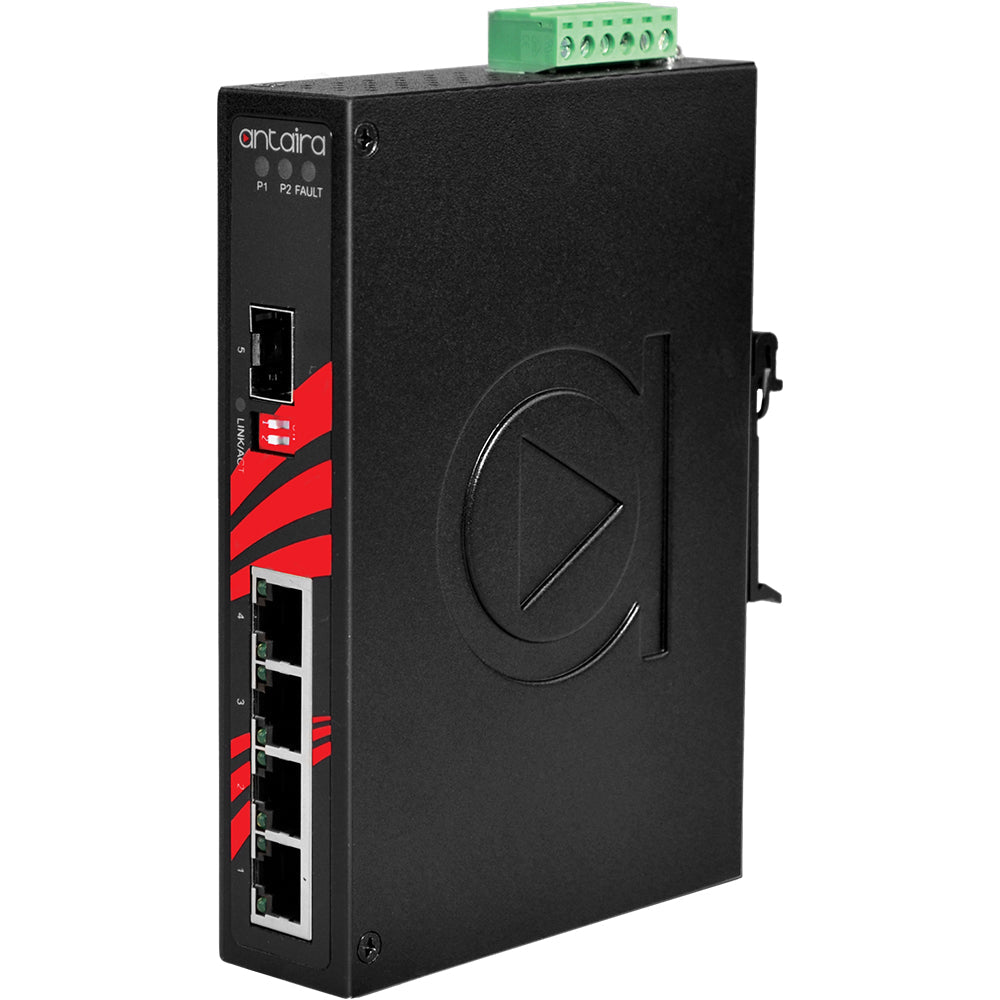

LNX-0501G-SFP-T | 5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP slot; EOT: -40~75C | Antaira

5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP slot; EOT: -40~75C

Antaira’s LNX-0501G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with four gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0501G-SFP-T provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur, plus the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold. The LNX-0501G-SFP-T series includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly design product to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.

Features

• Network Broadcast Storm Protection
• 4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 10Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• 9.6Kbytes Jumbo Frame Support
• Surge Protection: 3,000 VDC Support
• ESD Protection: 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design – 12~48VDC
• Built-in 1 Relay Output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - EOT: -40° to 75° C
• 5-Year Warranty

Included

• 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
• 1 x LNX-0501G-SFP-T
• 2 x Wall Mounting Bracket and Screws
