LNX-0501G-SFP | 5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP slot | Antaira

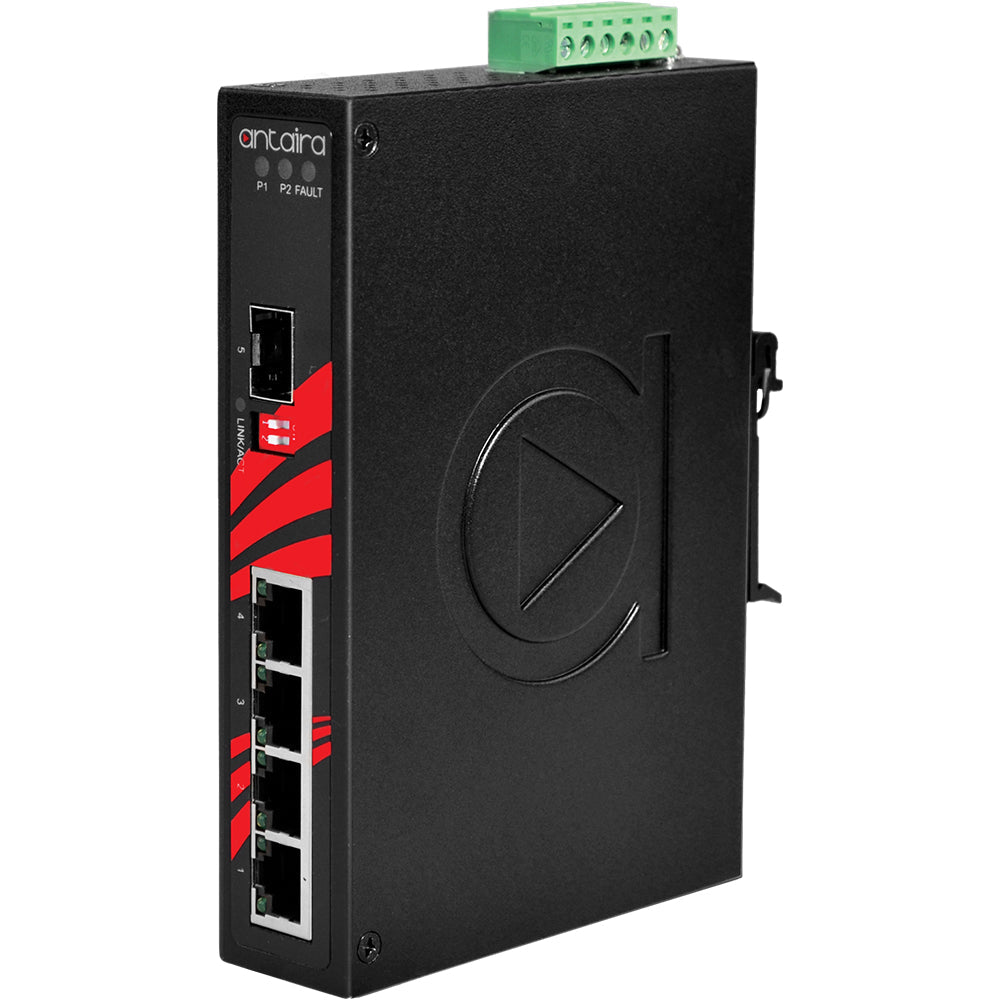

5-Port Industrial Unmanaged Ethernet Switch, w/4*10/100/1000Tx + 1*100/1000 SFP slot
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-0501G-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-0501G-SFP Documents
Overview
Details for LNX-0501G-SFP
5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP slot
Antaira’s LNX-0501G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with four gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0501G-SFP series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection.In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur, plus the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.Features
- Network Broadcast Storm Protection
- 4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~48VDC
- Built-in 1 Relay Output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Included
- 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
- 1 x LNX-0501G-SFP
- 2 x Wall Mounting Bracket and Screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Broadcast Storm Rate Limit
- 7,926pps (default)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 30mm (W) x 99mm (D) x 142mm (H)
- EMI
- FCC Class A
- EMS
- EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
- Ethernet Port
- 4*RJ45 Ports with 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 1*100/1000 SFP Slot
- Free fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection, Din-Rail Mounting (wall mounting bracket also included)
- Input Voltage
- 12~48VDC, Redundant Input (w/ 1 removable 6-contact terminal block)
- Jumbo Frame
- 9.6 Kbytes
- MAC Table Size
- 8K
- Operating Temperature
- -10° to 70° C (14° to 158° F)
- Overload Current Protection
- Present
- Power Consumption
- 5 Watts
- Reverse Polarity Protection
- Yes
- Standards
- IEEE 802.3, 3u, 3ab, 3az
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 10Gbps
- Transfer Rate
- up to 1.4 Gbps for Gigabit Ethernet Port
- Warranty
- 5 years
- Weight
- Unit Weight: 1-lbs.;Shipping Weight: 1.5 lbs
