Documents: LNX-0501-ST-M
LNX-0501-ST-M | 5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100Tx + 1*100Fx (ST) Multi-mode 2Km | Antaira
5-Port Industrial Unmanaged Ethernet Switch, w/4*10/100Tx + 1*100Fx (ST) Multi-mode 2Km

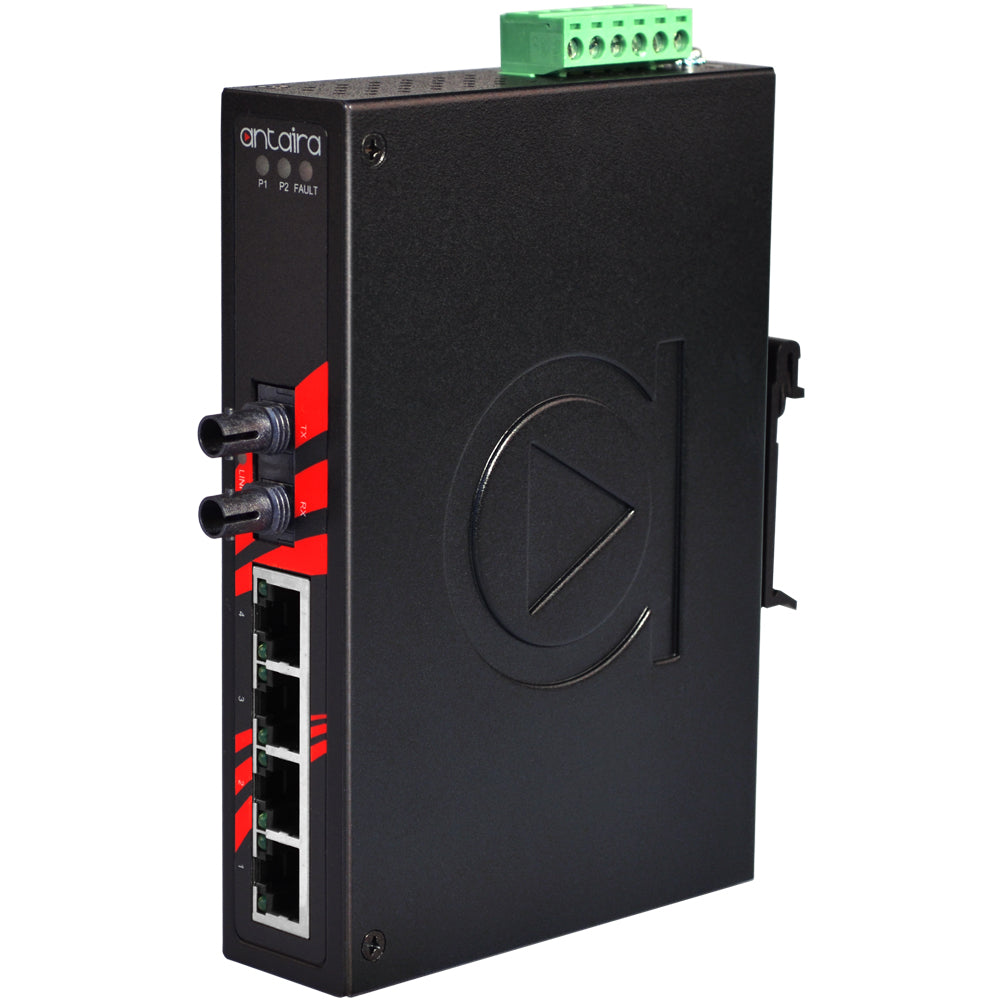

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-0501-ST-M
Overview Details for LNX-0501-ST-M
5-Port Industrial Unmanaged Ethernet Switch | w/4*10/100Tx + 1*100Fx (ST) Multi-mode 2Km
Antaira’s LNX-0501 series of switches are smart 5-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.The LNX-0501 series of industrial switches support 12~48VDC power inputs. These industrial Ethernet witches offer an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. These indsutrial switches also support IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.Features
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- 1-Port 100Fx ST type connector (Multi-mode)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~48VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating Temperature range: -10° to 70° C
- 5-Year Warranty
Included
- LNX-0501-ST-M
- Mounting Brackets
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL/cUL 508, Class 1 Div 2
- Certifications
- FCC, CE, UL508
- Connection
- 1 removable 4-contact terminal block
- Dimensions
- 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
- EMI
- FCC Class A
- EMS
- EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
- Fiber Port
- 1*100Fx ST type connector;Multi-mode (2Km) - 50/125um ~ 62.5/125um
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~48VDC, Redundant Input
- Mounting
- DIN-Rail mounting, wall mounting (optional)
- Operating Temperature
- STD: -10° to 70° C (14° to 158° F)
- Overload Current Protection
- Slow-Blown Fuse
- Power Consumption
- 6.5 Watts
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Yes
- RJ45 Ports
- 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;4*10/100Tx
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Wavelength
- 1310nm (Multi-mode)
- Weight
- Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
