LNP-C501G-SFP-bt-T | 5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 410/100/1000TX (90W/Port) and 1100/1000 SFP Slot; EOT: -40°C to 75°C | Antaira

5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port) and 1*100/1000 SFP Slot; EOT: -40°C to 75°C

Brand: AntairaSKU: LNP-C501G-SFP-bt-T

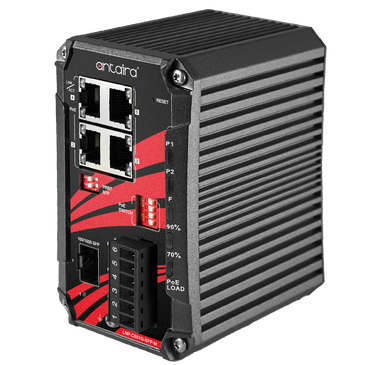

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-C501G-SFP-bt-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-C501G-SFP-bt-T

5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 4*10/100/1000TX (90W/Port) and 1*100/1000 SFP Slot; EOT: -40°C to 75°C

Antaira Technologies’ LNP-C501G-SFP-bt-T is a 5-port industrial compact Gigabit PoE++ unmanaged Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, and 1*100/1000 dual rate SFP slot for fiber connection.The LNP-C501G-SFP-bt-T is IP40 rated and DIN-rail mountable. There are also extended wide-operating temperature models for an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.

Features

Support 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slot
Support PD Remote Rest Technology (PRRT)
Adjustable SFP Speed with DIP-Switch Setting
Store-and-Forward Switching Architecture
Dual Power Input 48~55VDC in 6-Pin Terminal Block
Support Power Inputs Reverse Polarity Protection
IP40 Protection
DIN-Rail or Wall Mountable
Operating Temperature - EOT: -40°C to 75°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
Dust cover set
LNP-C501G-SFP-bt-T
Quick Installation Guide
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 64.9 x 110 x 89.8 mm (W x H x D)
Dip Switch: PoE Switch: Control PoE Function by Port;DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable;DIP Switch 2: SFP Speed (1000Mbps/100Mbps)
EMI: FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2,;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 4*10/100/1000Base-TX (90W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Housing: Metal, IP40 protection
Input Voltage: 48~55VDC Redundant Input;(53~55VDC power input for BT PoE PSE)
Jumbo Frame: 10Kbytes
LED Indicators: System: Power 1, Power 2, Fault;PoE Load: 70%, 90%;Ethernet ports: Speed/Link/Active;PoE: On-connected to PD devices;SFP: Speed/Link/Active
MAC Table Size: 8K
Memory Buffer: 1Mbit
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature: EOT: -40°C to 75°C
Overload Current Protection: Present (Slow-Blown Fuse)
PoE Pin Out: V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget: 240W
Power Connection: 1 removable 6-contact terminal block
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
SFP Port: 1*100/1000 SFP Slot
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at/bt Power over Ethernet
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Switching Fabric (Back-Plane): 10Gbps
System Power Consumption: 4.6 Watts
Transfer Rate: 14,880pps for Ethernet;148,800pps for Fast Ethernet;1,488,000pps for Gigabit Ethernet
Warranty: 5 Years
Weight: Unit: 1.95 lb;Shipping: 2.49 lb
