LNP-C501G-SFP-bt-24 | 5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 4*10/100/1000TX (90W/Port) | 1*100/1000 SFP Slot; 9~55VDC Power Input | Antaira

5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port), 1*100/1000 SFP Slot; 9~55VDC Power Input

Brand: AntairaSKU: LNP-C501G-SFP-bt-24

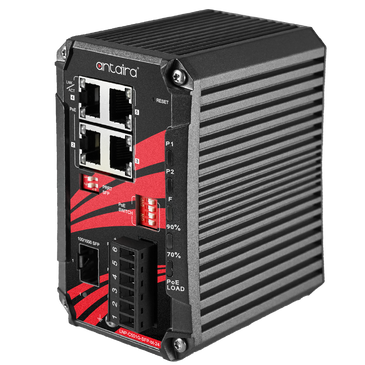

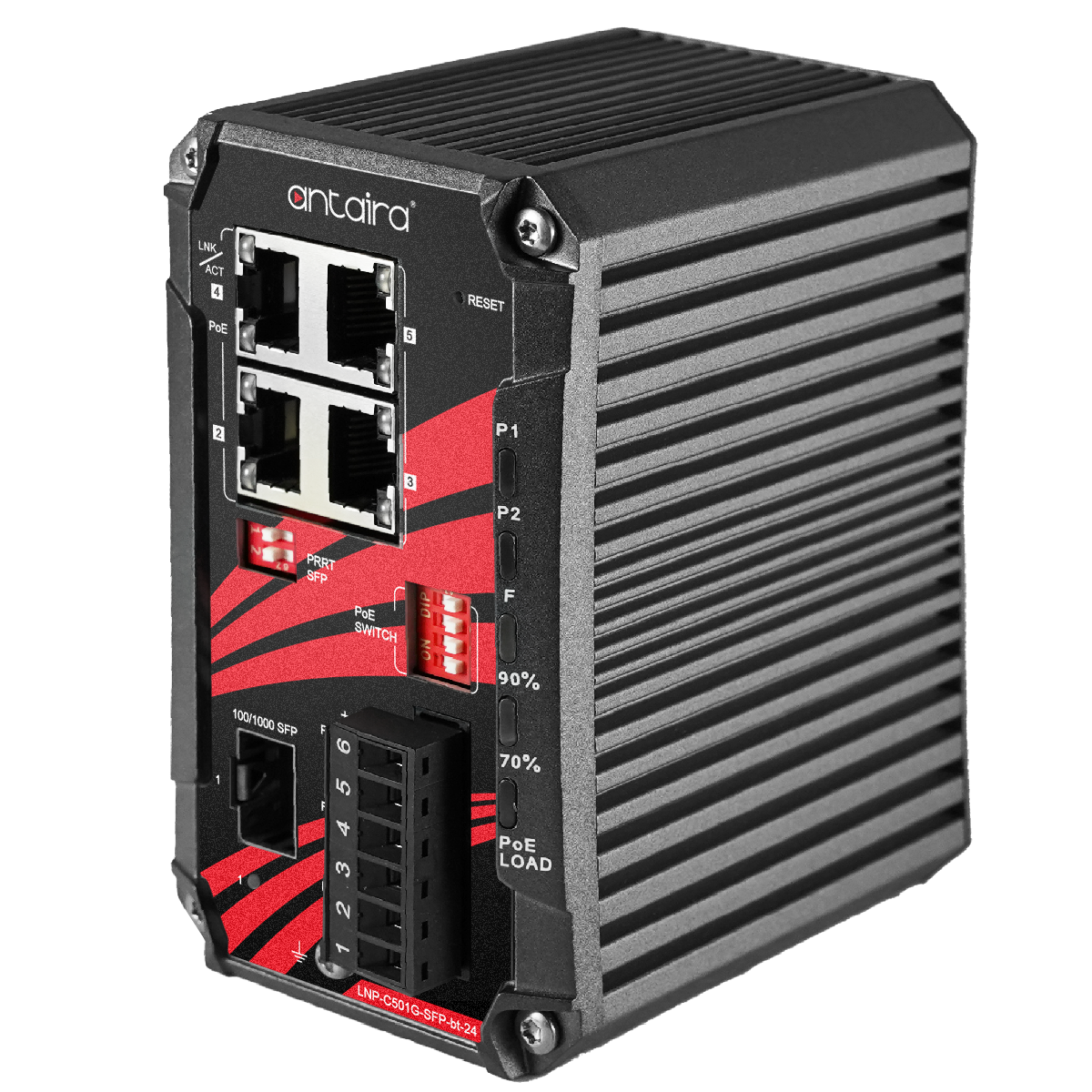

Antaira | LNP-C501G-SFP-bt-24
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-C501G-SFP-bt-24

Overview Details for LNP-C501G-SFP-bt-24

5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 4*10/100/1000TX (90W/Port) | 1*100/1000 SFP Slot; 9~55VDC Power Input

Antaira Technologies’ LNP-C501G-SFP-bt-24 is a 5-port industrial compact Gigabit PoE++ unmanaged Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, and 1*100/1000 dual rate SFP slot for fiber connection.The LNP-C501G-SFP-bt is IP40 rated and DIN-rail mountable. There are a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.

Features

  • Support 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slot
  • Support PD Remote Rest Technology (PRRT)
  • Adjustable SFP Speed with DIP-Switch Setting
  • Store-and-Forward Switching Architecture
  • Dual Power Input 9~55VDC in 6-Pin Terminal Block
  • Provided Power Booster Technologies for Low Voltage Power Inputs
  • Support Power Inputs Reverse Polarity Protection
  • IP40 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature - STD: -10°C to 65°C, EOT: -40°C to 75°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • Dust cover set
  • LNP-C501G-SFP-bt-24
  • Quick Installation Guide
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE
Dimensions
64.9 x 110 x 89.8 mm (W x H x D)
Dip Switch
PoE Switch: Control PoE Function by Port;DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable;DIP Switch 2: SFP Speed (1000Mbps/100Mbps)
EMI
FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2,;IEC61000-4-2,3,4,5,6,8
Ethernet Port
4*10/100/1000Base-TX (90W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x flow control, back pressure flow control
Housing
Metal, IP40 protection
Input Voltage
9~55VDC Redundant Input
Jumbo Frame
10 Kbytes
LED Indicators
System: Power 1, Power 2, Fault;PoE Load: 70%, 90%;Ethernet ports: Speed/Link/Active;PoE: On-connected to PD devices;SFP: Speed/Link/Active
MAC Table Size
8K
Memory Buffer
1 Mbit
Mounting
DIN-Rail mounting, Wall mounting
Network Cable
10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature
STD: -10°C to 65°C
Overload Current Protection
Present (Slow-Blown Fuse)
Poe Pin Assignment
V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget
60W @ 9V;90W @ 12V;150W @ 24V;240W @ 48~55V
Processing Type
Store and Forward
Protocols
CSMA/CD
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
SFP Port
1*100/1000 SFP Slot
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at/bt Power over Ethernet
Storage Temperature
-40°C ~ 85°C
Switching Architecture
Switching Fabric (Back-Plane): 10Gbps
System Power Consumption
4.6 Watts
Transfer Rate
14,880pps for Ethernet;148,800pps for Fast Ethernet;1,488,000pps for Gigabit Ethernet
Warranty
5 Years
Weight
Unit: 0.70 lb;Shipping: 1.00 lb
